Description

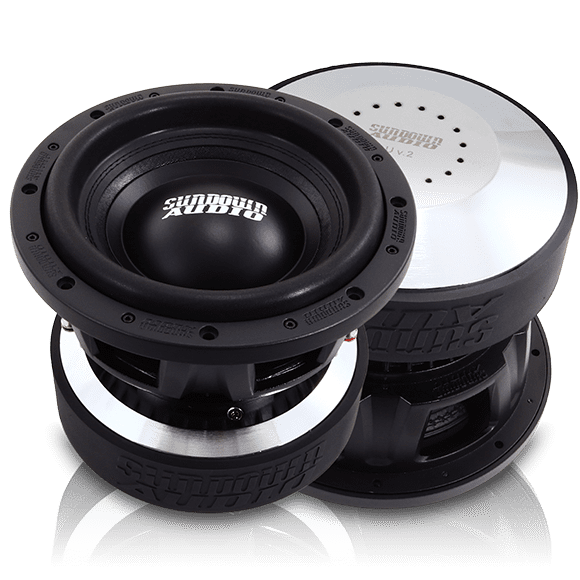

U-12v2 1750 watts
- Black Aluminum 3” voice coil former for superior heat dissipation
- High Temperature Round-Wire ALU voice coil with high-temp black adhesive
- Double stitched surround
- Heavy duty cast baskets – all new, custom-tooled
- Spring loaded terminals accept up to 8 gauge
- Stitched-on double-XL tinsel leads
- Solid pole with vent channels and aluminum shorting ring cap
- Rear drilled gap-venting
- Innovative high-velocity cast aluminum vented frame spacer ring
- Magnet ID shorting ring
- Top-Plate Cooling Channels
- Cast Aluminum surround bolt-on rings
- Optimized for small ported or bandpass enclosures
Sealed Enclosure
1.0 cu ft
Ported Enclosure
2.0 cu ft
Recommended Tuning
35Hz
Recommended Port Area
32 sq in
Displacement
0.21 cu ft
Depth
7.75″
Outside Diameter
12.83″
Cut-Out
11.01″
