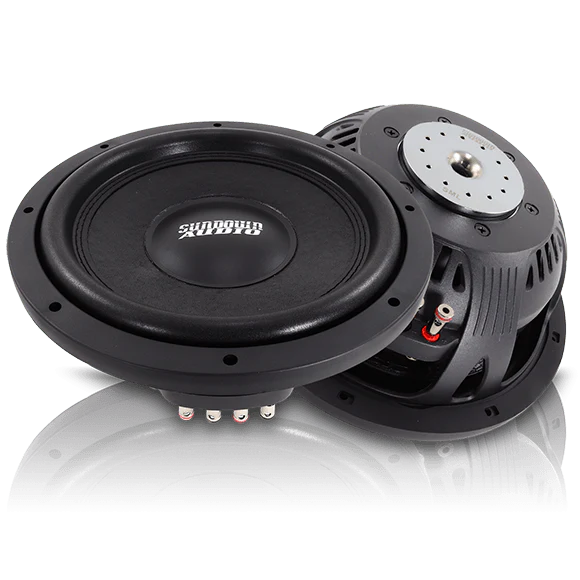

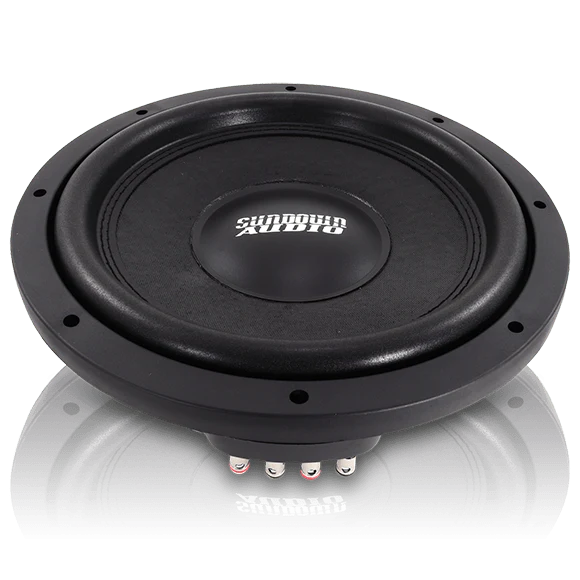

SML-Series 12” Thin Subwoofer

$324.99

-

SKU: sml-series-12-thin-subwoofer Categories: , , ,

Description

  • RMS 500 watts
  • Dual 2 or 4 ohm voice coils
  • Black Aluminum 2.5” voice coil former for superior heat dissipation
  • High temperature 4-layer copper voice coil wire

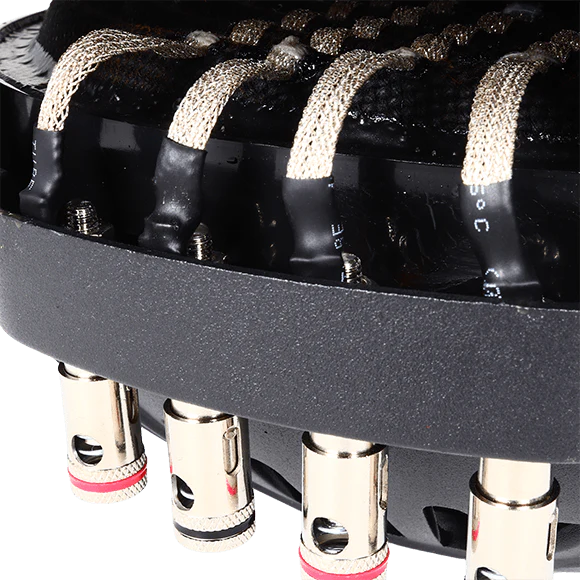

  • Stitched-on “Mini-XL” tinsel leads to prevent fatigue and failure
  • Vented pole-piece and multi-vented magnetic gap
  • Dual-magnet design for smooth acoustic response
  • Custom tooled cone shape for reduced mechanical noise over high excursion

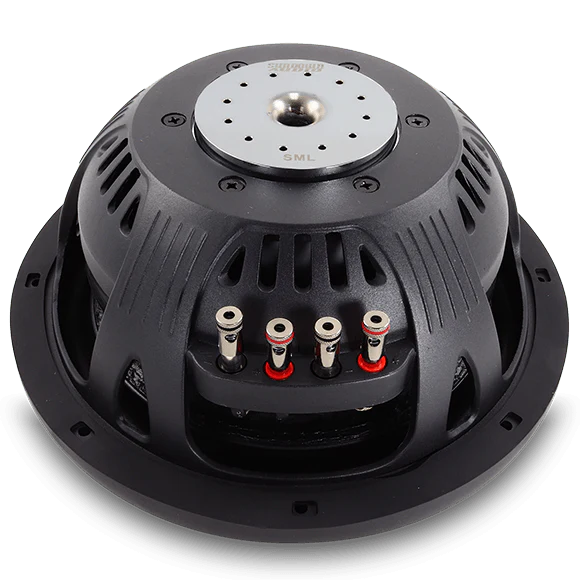

  • Bolt-through motor design to ensure maximum longevity and ruggedness

Introducing the SML series: a revolutionary line of subwoofers by Sundown Audio. This series is an inch shallower than the SLD line, yet delivers nearly the same excursion, making it the ultimate choice for customers in search of an extremely shallow driver with deep bass. Specifically designed to fit under or behind your seat, the SML series excels in performance, especially within small enclosures.

Specifications

T/S SPECS
SML 10″ D2
SML 10″ D4
SML 12″ D2
SML 12″ D4

RE (Ohms)
3.650
6.850
3.650
6.850

FS (Hz)
35.210
36.116
34.932
39.905

VAS (L)
23.679
24.828
39.012
29.593

Qes
0.931
0.469
0.456
0.617

Qms
2.703
2.766
2.862
3.035

Qts
0.341
0.401
0.394
0.513

BL (NA)
17.431
21.022
17.879
22.801

Mms (Grams)
146.986
133.242
182.067
186.887

Cms (uM/N)
139.003
145.749
114.018
85.771

Sens (dB @ 1w/1m)
86.1dB
85.8dB
87.5dB
86.7dB

Xmax
11mm
11mm
11mm
11mm

Enclosure Specifications

SML 10″
SML 12″

Sealed Enclosure
0.5-0.75 ft^3
0.75-1.0 ft^3

Ported Enclosure
1.0-1.25 ft^3
1.25-1.75 ft^3

Recommended Tuning
35hz
35hz

Recommended Port Area
 26-30 sq in
 26-30 sq in

Mounting Depth
3.78”
4.45”

Physical Dimensions
Download
Download

Additional information

Voice Coil Option

Dual 2 Ohm, Dual 4 Ohm
