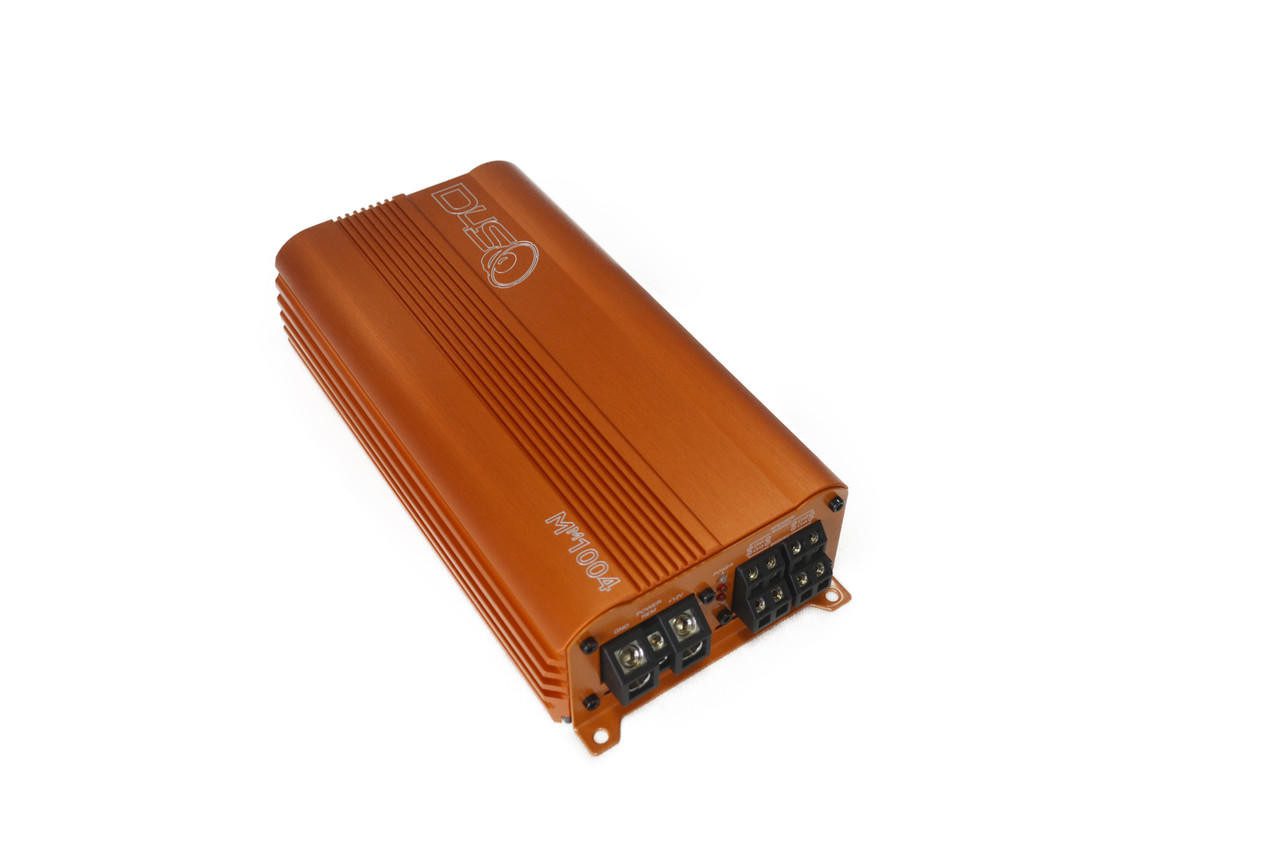

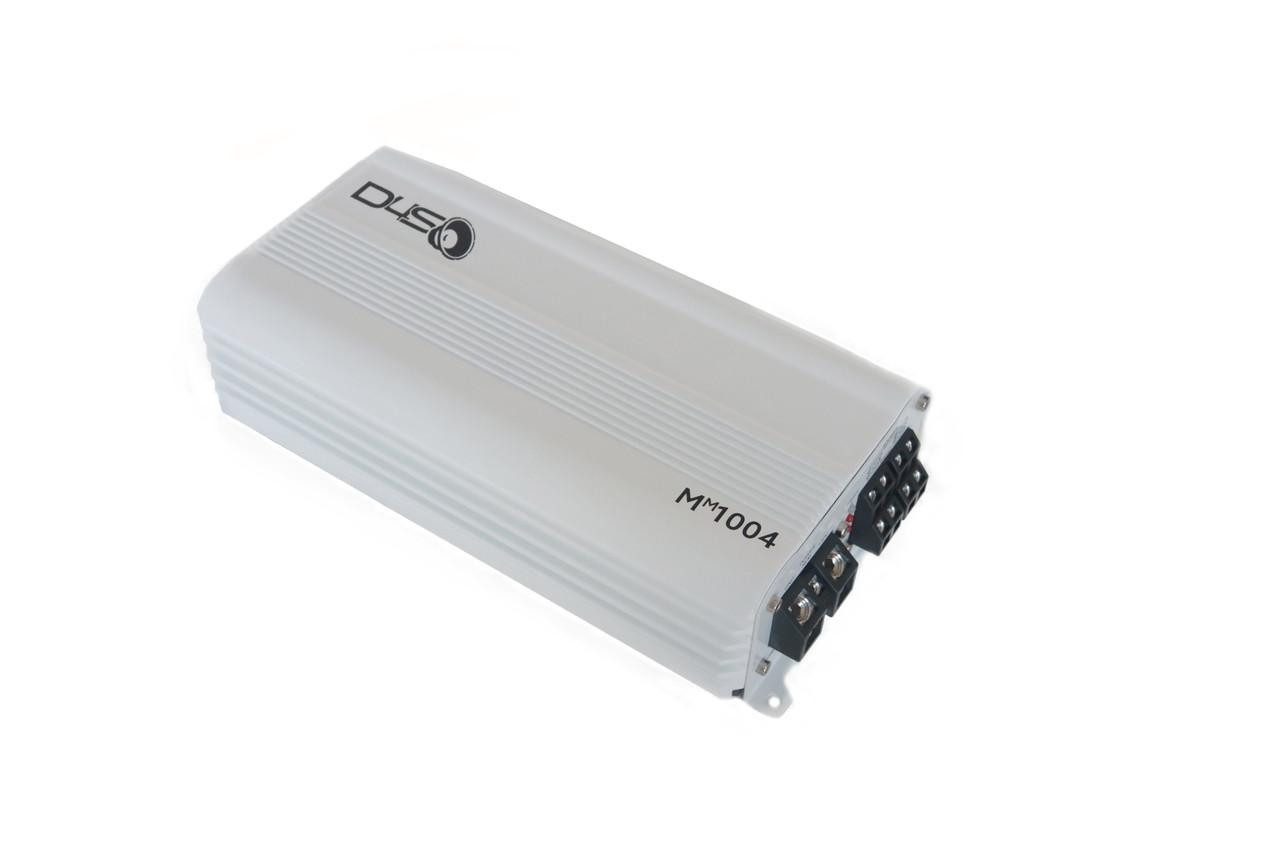

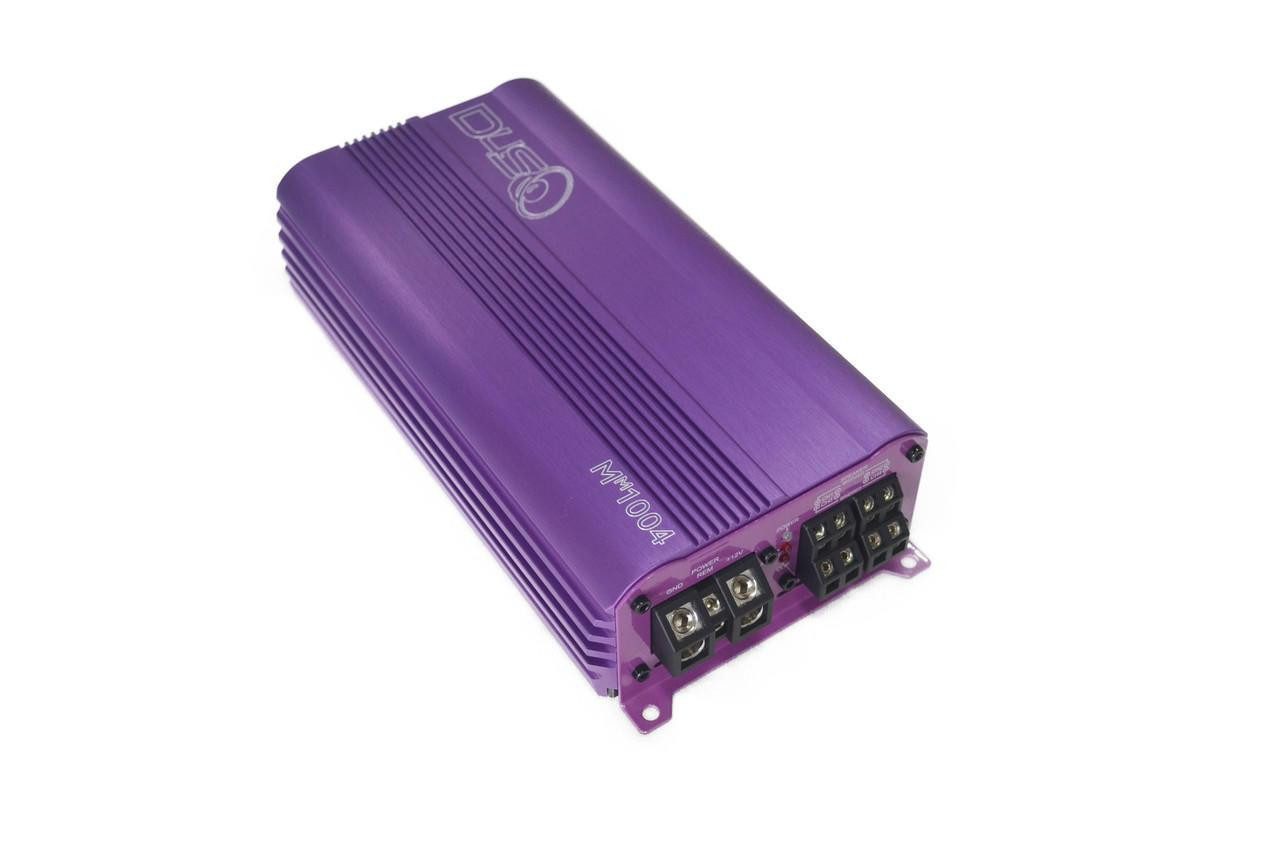

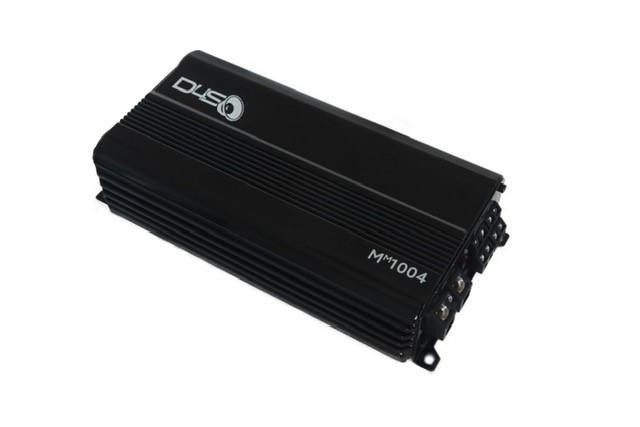

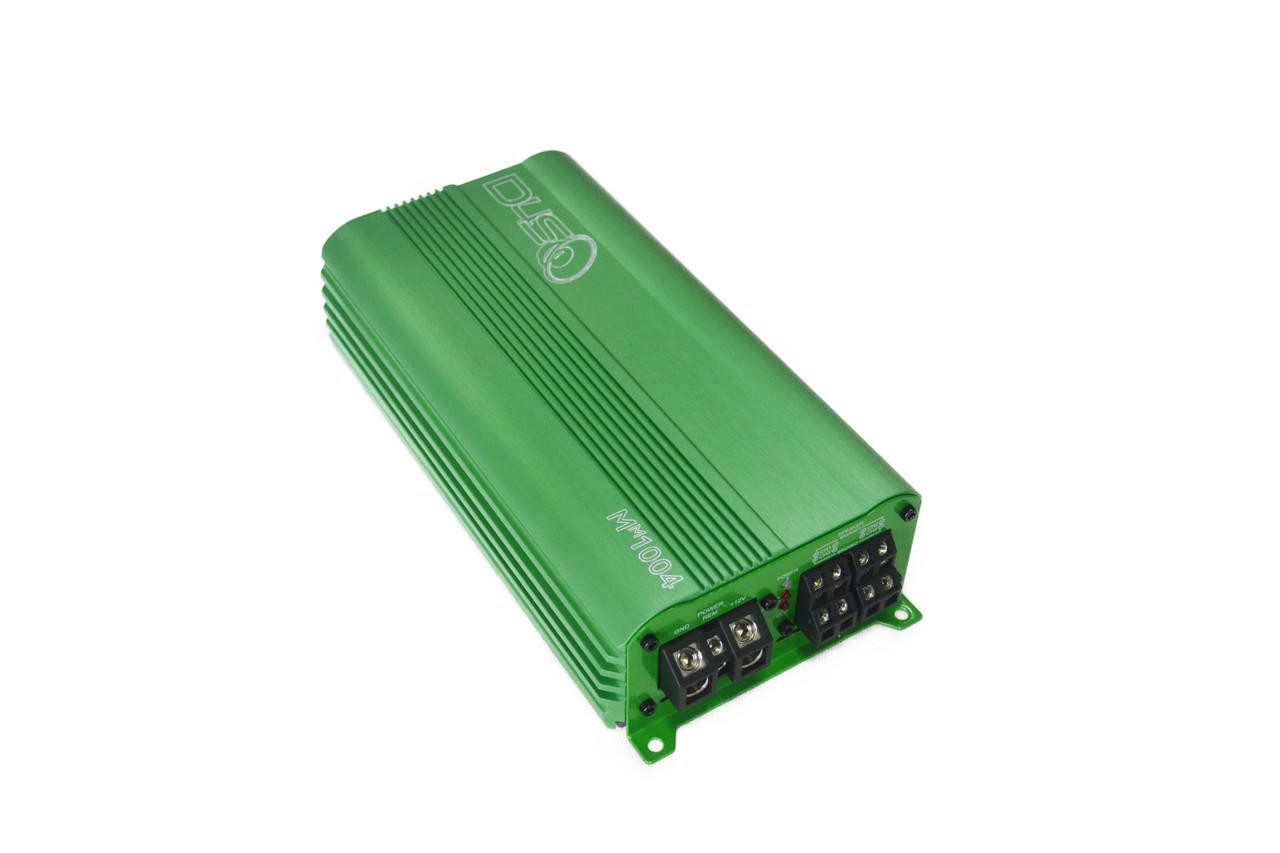

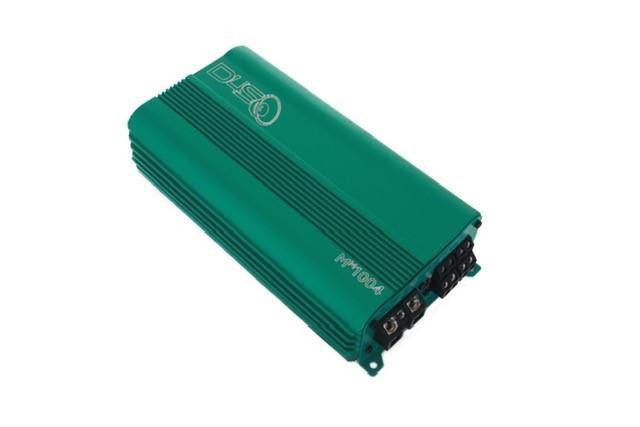

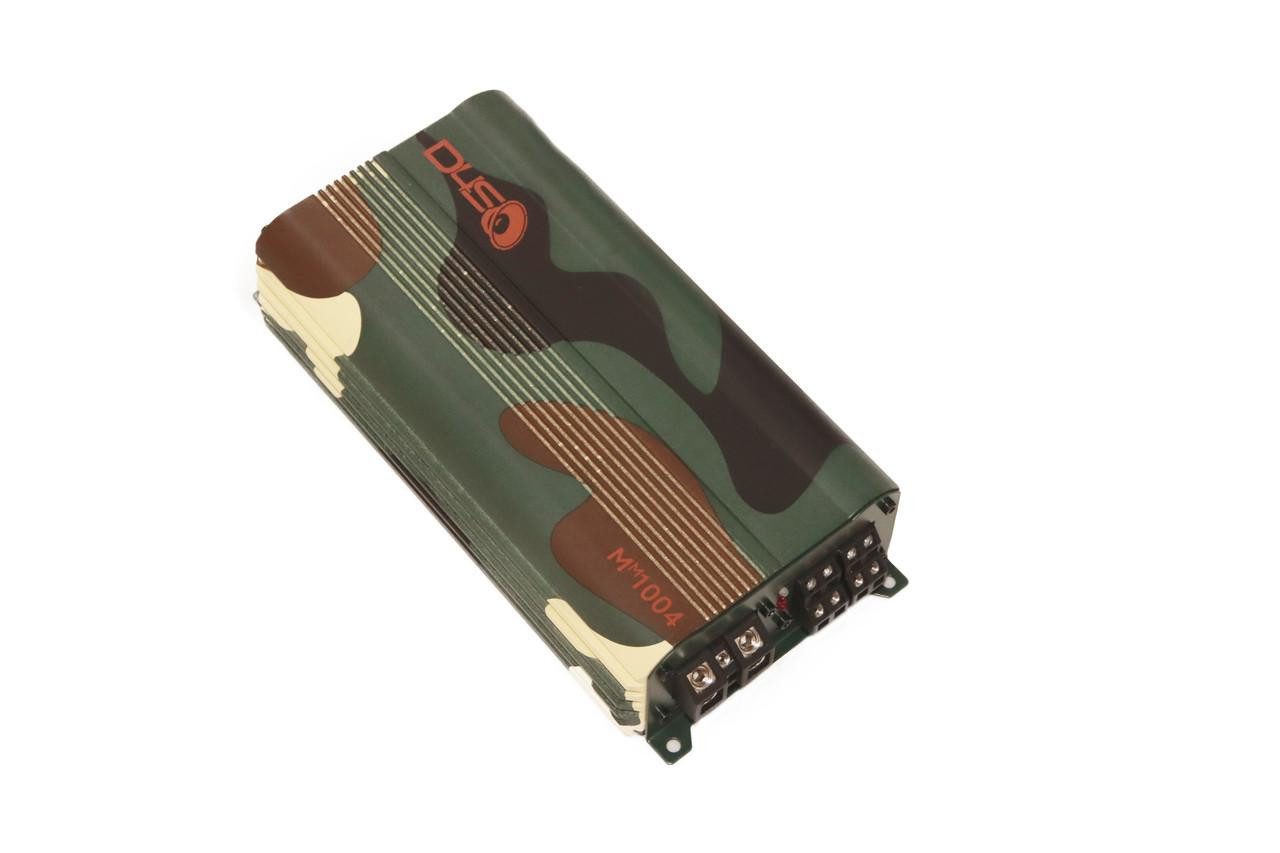

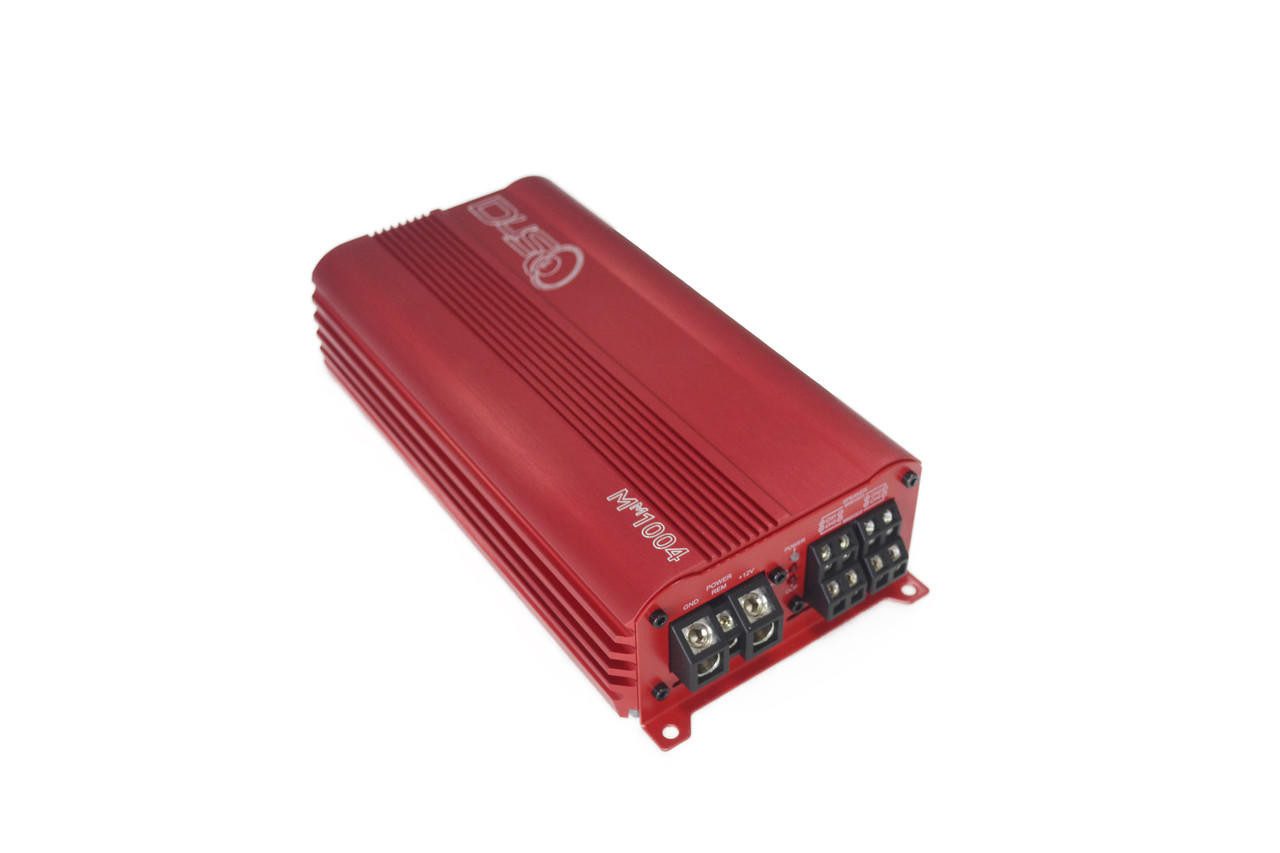

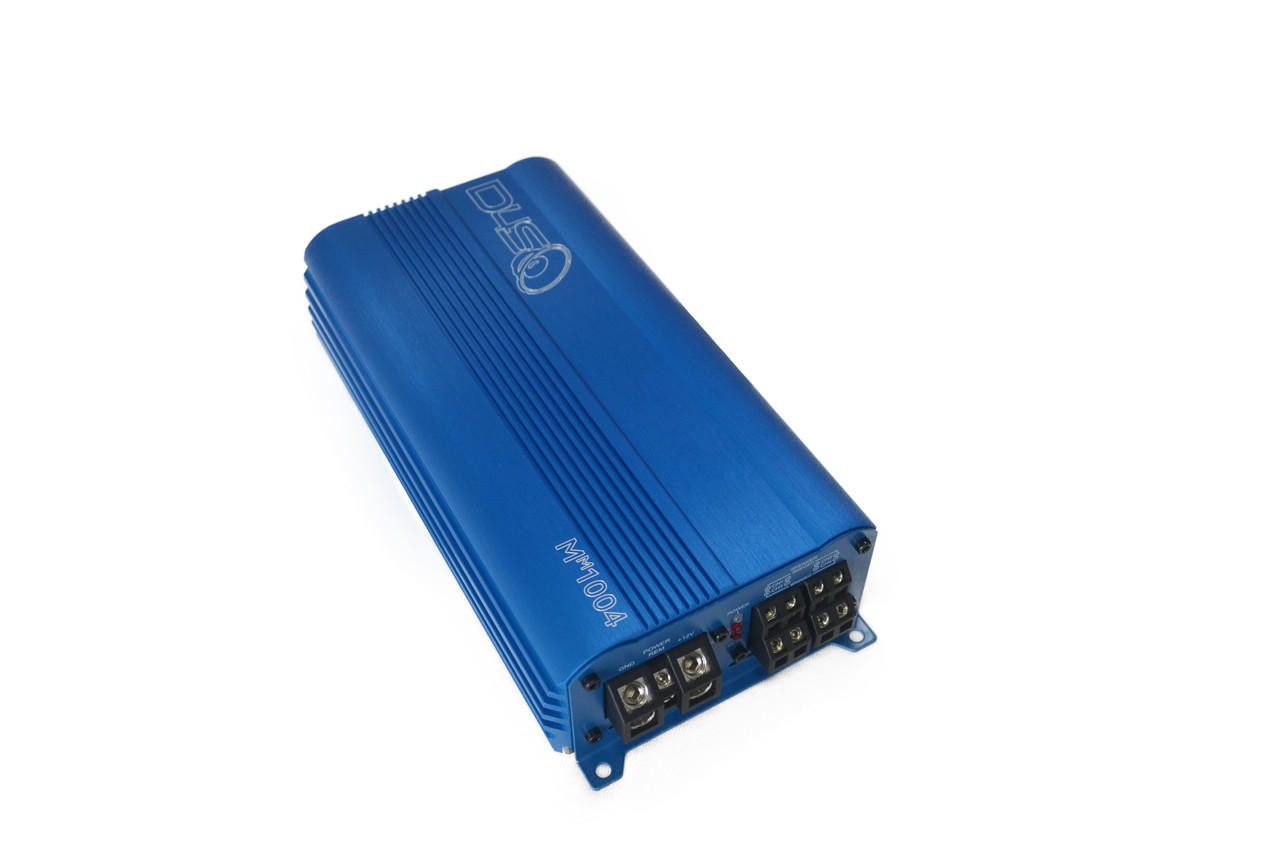

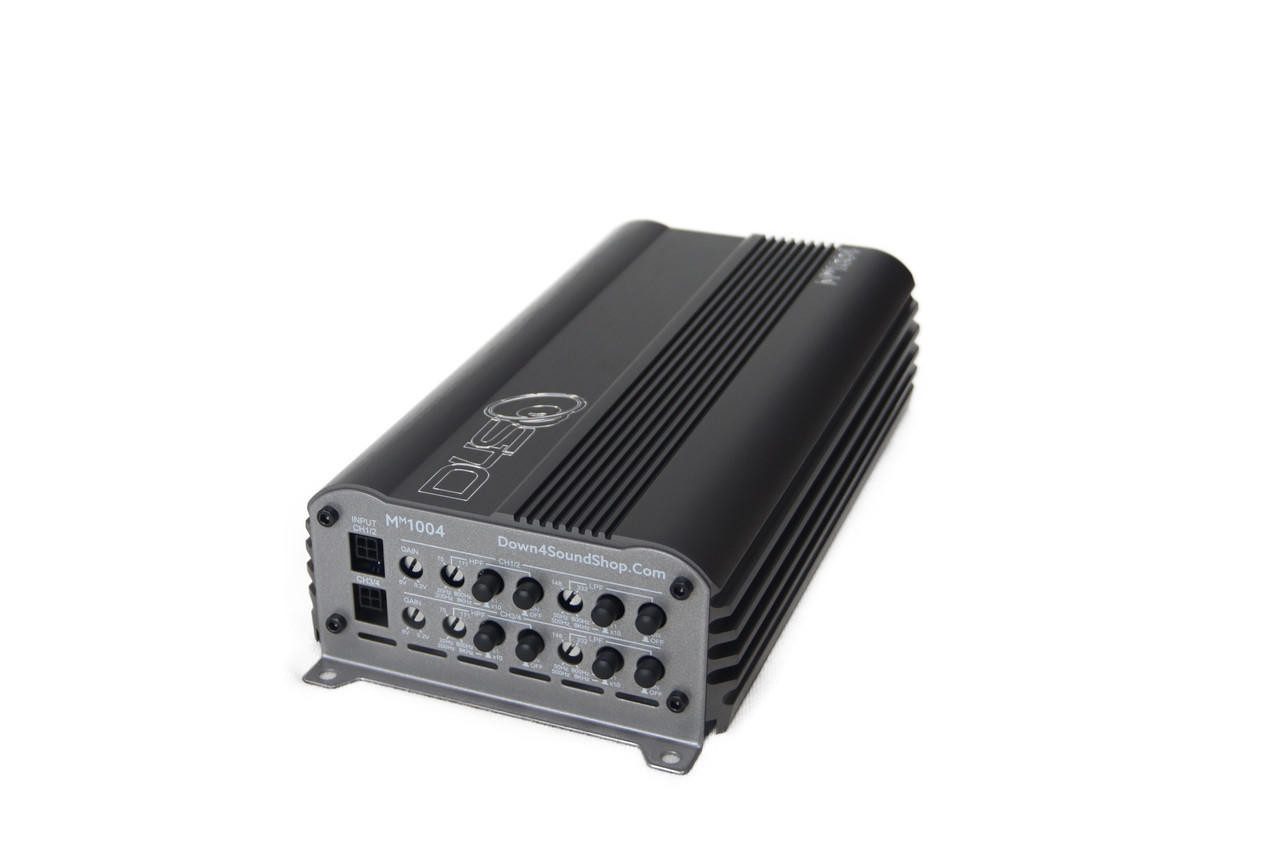

DOWN4SOUND | MM1004 (MINI MAXX) 700W RMS MINI | 4 CHANNEL AMPLIFIER

Description

Elevate your audio experience with the DOWN4SOUND MM1004 (MINI MAXX) – a 700W RMS Mini 4-Channel Car Audio Amplifier. This compact and versatile amplifier is expertly designed to deliver dynamic sound quality, perfect for enhancing your car’s audio system.

The MM1004 is engineered with band-passable crossovers X1 & X10, allowing you to run mids and highs on one channel and bass on another, or bi-amplify the 4 channels differently for a customized listening experience.

Technical Specifications:

• 4ohm RMS Power: 100W x 4ch
• 2ohm RMS Power: 150W x 4ch
• 4ohm RMS Bridged Power: 300W – 350W x 2ch (Tested at 14.4V & 1% THD – RANGE)
• Frequency Response: 10Hz – 23.8KHz
• Signal to Noise Ratio: 93dB
• Damping Factor: 100
• Input Sensitivity: 6V – 0.2V
• CH1/2 High Pass Filter: 20Hz – 800Hz
• High Pass Multiply: x1, x10 (200Hz – 8KHz)
• Low Pass Filter: 50Hz – 800Hz
• Low Pass Multiply: x1, x10 (500Hz – 8KHz)
• Bandpass Capable
• CH3/4 High Pass Filter: 20Hz – 800Hz
• High Pass Multiply: x1, x10 (200Hz – 8KHz)
• Low Pass Filter: 50Hz – 800Hz
• Low Pass Multiply: x1, x10 (500Hz – 8KHz)
• Bandpass Capable
• Clipping Indicator
• Working Voltage: 9 to 15.5 Volts
• 4 GA Power & Ground Terminal
• 14GA Speaker Wire Terminal

Dimensions:

• Length: 220mm (8.66 inches)
• Width: 123.9mm (4.87 inches)
• Height: 54.3mm (2.13 inches)

The DOWN4SOUND MM1004 (MINI MAXX) is the perfect blend of power, precision, and style. Its compact size, combined with powerful output and adjustable settings, makes it an ideal choice for those looking to upgrade their car audio experience with a touch of elegance.
