Description

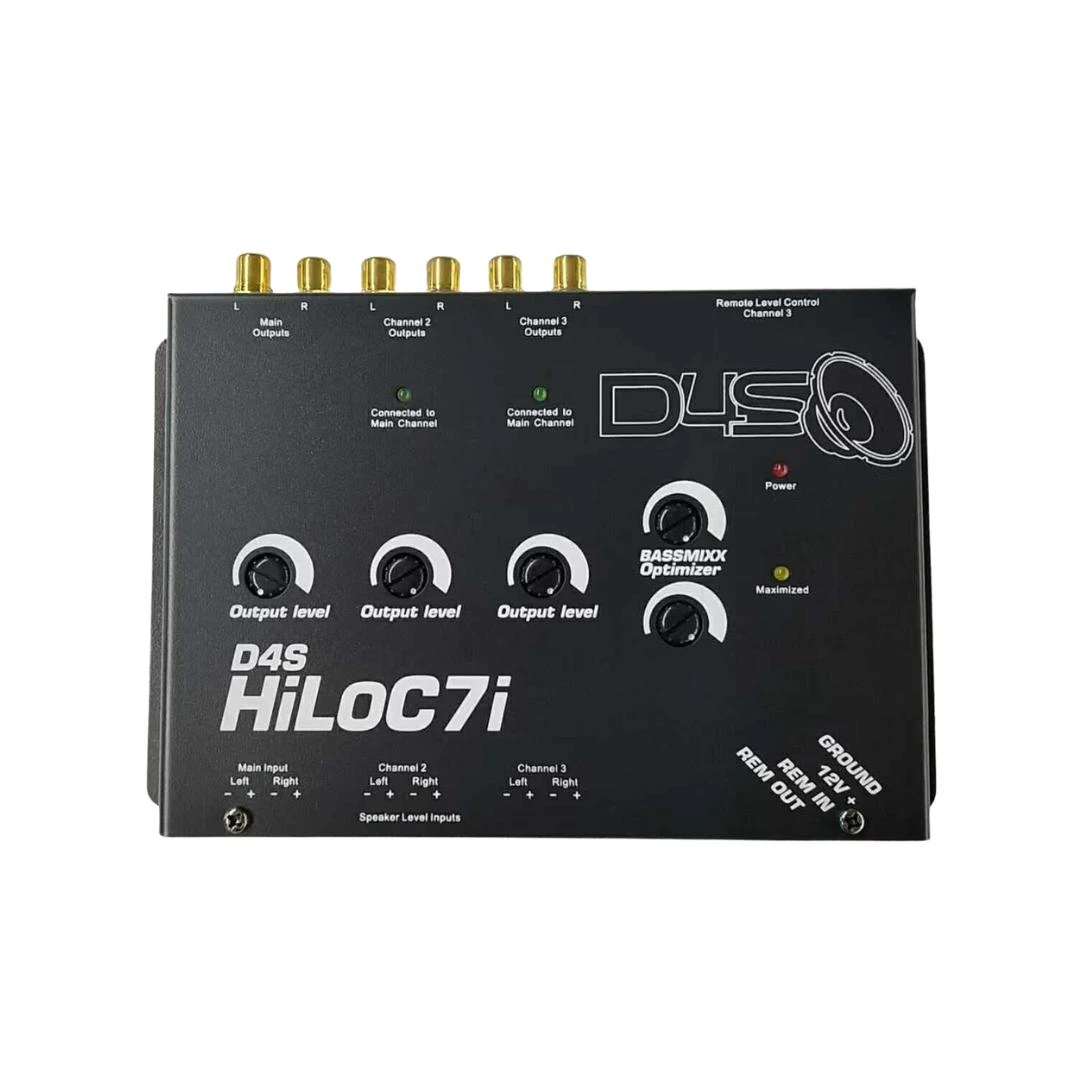

Down4Sound HiLoc7i Line Output Converter

Stop fighting your factory radio.

The Down4Sound HiLoc7i is built for clean, simple integration when adding aftermarket amplifiers to your factory system.

Designed for real world installs, the HiLoc7i converts your factory speaker level signal into a strong 9V RCA output, giving your amplifiers the signal strength they need for full performance.

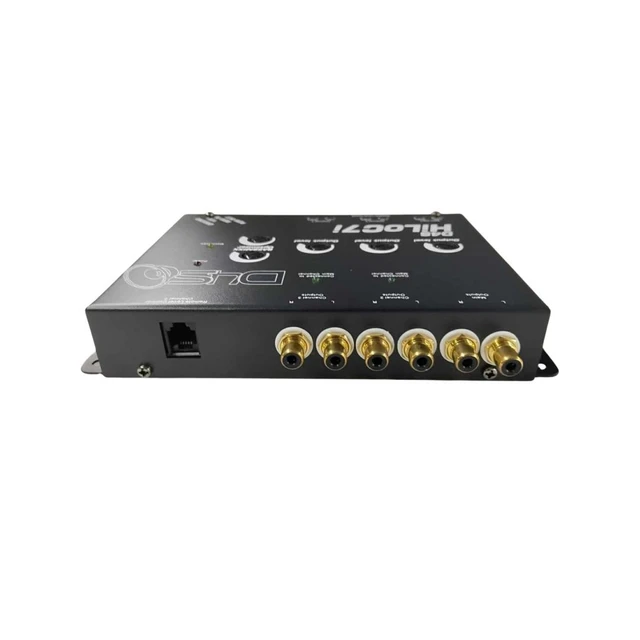

The HiLoc7i features three pairs of RCA outputs for full system expansion, allowing you to run front, rear, and subwoofer channels from a single compact unit.

The third output channel is dedicated for subwoofer use and includes built in bass processing along with remote level control, giving you precise adjustment over your low end.

Built in signal sensing automatically turns your system on, while channel specific clipping indicators help you tune safely and avoid distortion.

Clean signal. Strong output. Simple integration.

If you have been asking how to add an amp to a factory radio, this is the solution.

Key Features

• 3 Pairs of RCA Outputs for Front Rear and Subwoofer Channels
• Dedicated Subwoofer Channel with Bass Processing
• Remote Bass Level Control Included
• 6 High Level Speaker Inputs plus 1 Low Level RCA Input
• High to Low Level Signal Conversion
• 9V RMS Output for Strong Clean Signal
• OEM Signal Sensing with Automatic Turn On
• Clipping Indicators on Each Channel
• Frequency Response 10Hz to 50kHz
• Total Harmonic Distortion Less Than 0.01 Percent
• Signal to Noise Ratio 100dB or Greater
• Remote 12V Output
• Input Impedance 20 Ohms
• Fuse Rating 3A
• Compact Size 7.09 x 5.9 x 1.5 Inches

System Setup Made Simple

Connect your factory speaker wires into the HiLoc7i, route clean RCA signal to your amplifiers, and control your subwoofer level on the fly. Whether you are adding a single amplifier or building a full system, the HiLoc7i gives you the control and signal quality you need.
