Description

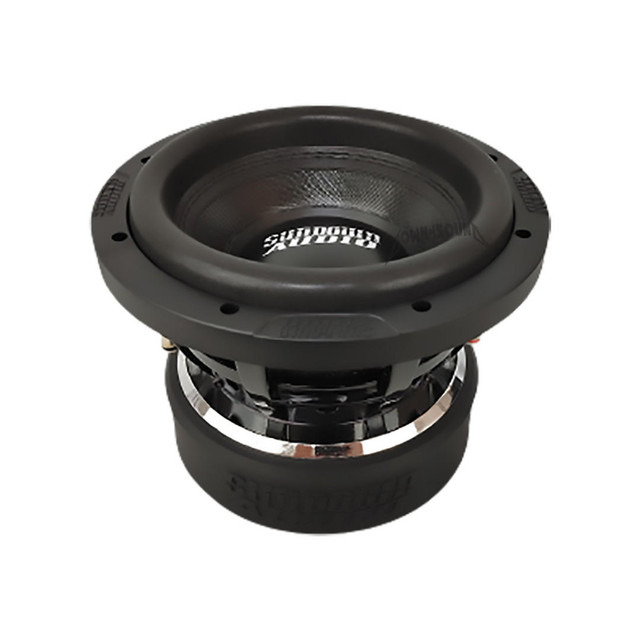

Sundown Audio U8/D4
Sundown U-8 D4/D2 T/S Parameters
- Re: 6.1228 Ohms
- Fs: 52.7160 Hz
- Zmax: 40.0810 Ohms
- Qes: 0.6072
- Qms: 3.3675
- Qts: 0.5144
- Le: 5.4104 mH (at 1 kHz)
- Diam: 165.1000 mm (6.5 in)
- Sd: 21408.3884 mm^2 (33.1831 in^2)
- Vas: 2.9629 L
- BL: 25.8651 N/A
- Mms: 200.2935 g
- Cms: 45.5082 uM/N
- Kms: 21974.0859 N/M
- Rms: 19.7008 R mechanical
- Efficiency: 0.0672 %
- Sensitivity: 80.2899 dB @1w/1m
- Sensitivity: 81.4513 dB @2.82vrms/1m
- Krm: 2.912E-03 Ohms
- Erm: 1.001E+00
- Kxm: 63.818E-03 Henries
- Exm: 719.614E-03
Sundown Audio U8 D4 Cutout & Mounting Depth:
- Top Mount Depth: 6.80″
- Mounting Depth: 6.25″
- Recommended Ported Box: 0.75-1.0″
- Woofer Displacement: cu. ft. 0.011
- Outside Diameter: 8.65″
- Cutout Diameter: 7.375″
- Recommended Tuning Frequency: 35Hz
