Description

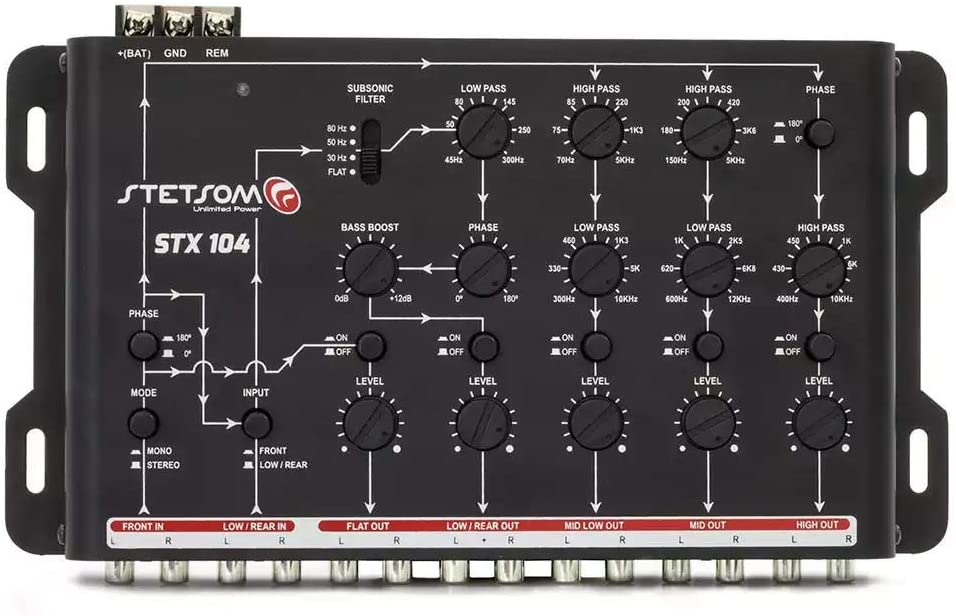

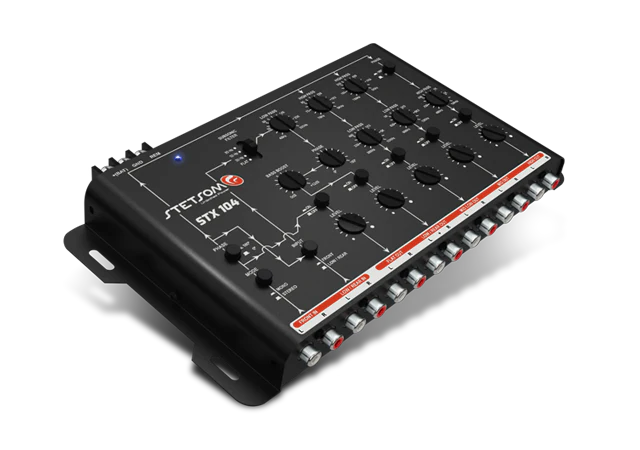

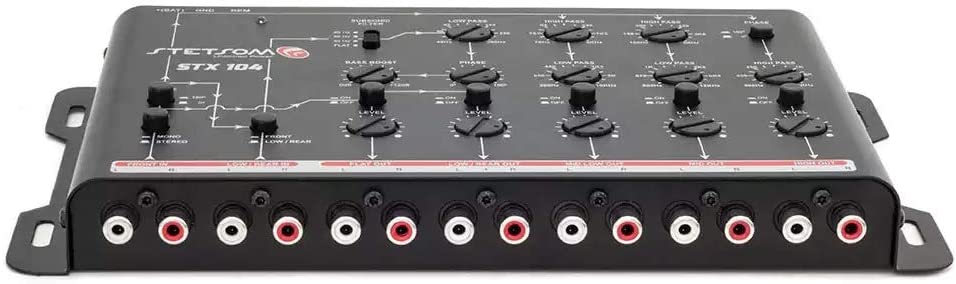

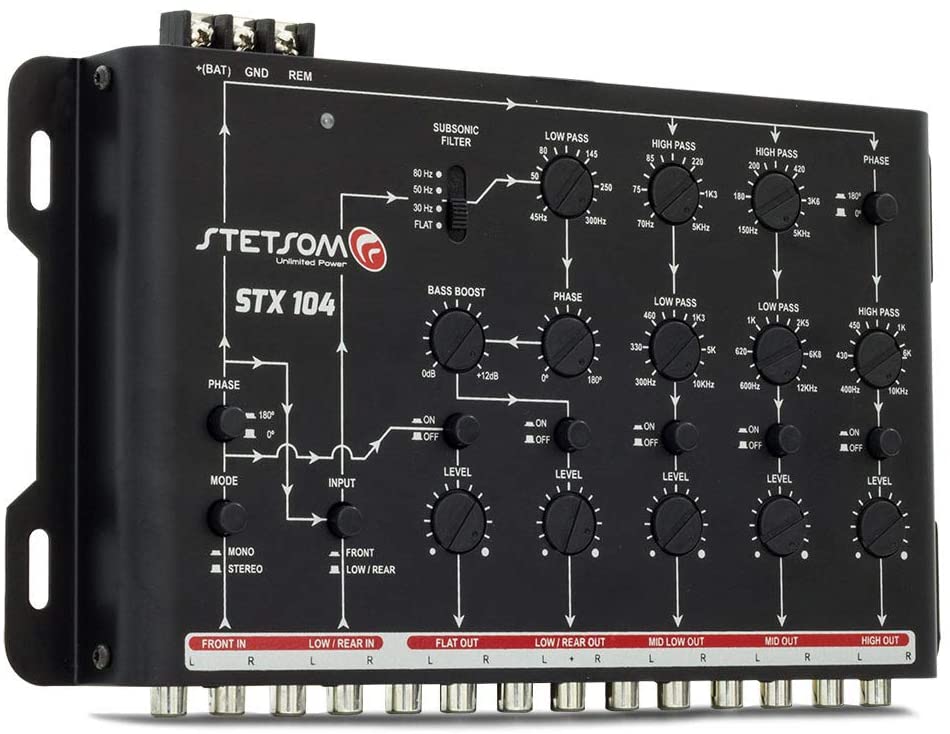

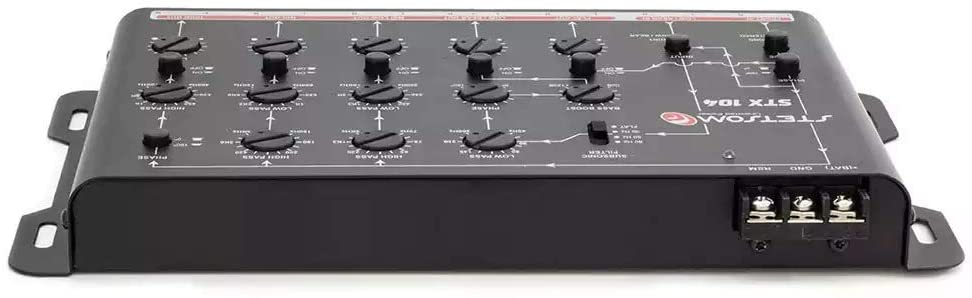

Stetsom STX 104 Digital Audio Crossover 5 Channels

Stetsom’s STX104 is a crossover designed to provide high performance combined with sound fidelity in 5 channels. It has high reliability with very low noise levels and harmonic distortion, ideal for professional sound.

TECHNICAL SPECS:

Via High: 400Hz – 10KHz (12 dB/8ª)
Via Mid: 150Hz – 12,5KHz (12 dB/8ª)
Via Low: 70Hz – 10KHz (12 dB/8ª)
Maximum Output Voltage: 9V RMS
Maximum Input Voltage: 4V RMS
Signal to Noise: >90dB
Input Impedance: 10K OHMS
Harmonic Distortion: < 0,02% THD
Channel Separation: > 80dB
Frequency Response: 20Hz – 200Khz
Supply Voltage: 10V – 16V DC
Current Consumption: 0,25A MAX
Impedance Output: 50 OHMS
Dimensions (H x W x D): 33 x 264 x 160 mm
Weight: 780g
