Description

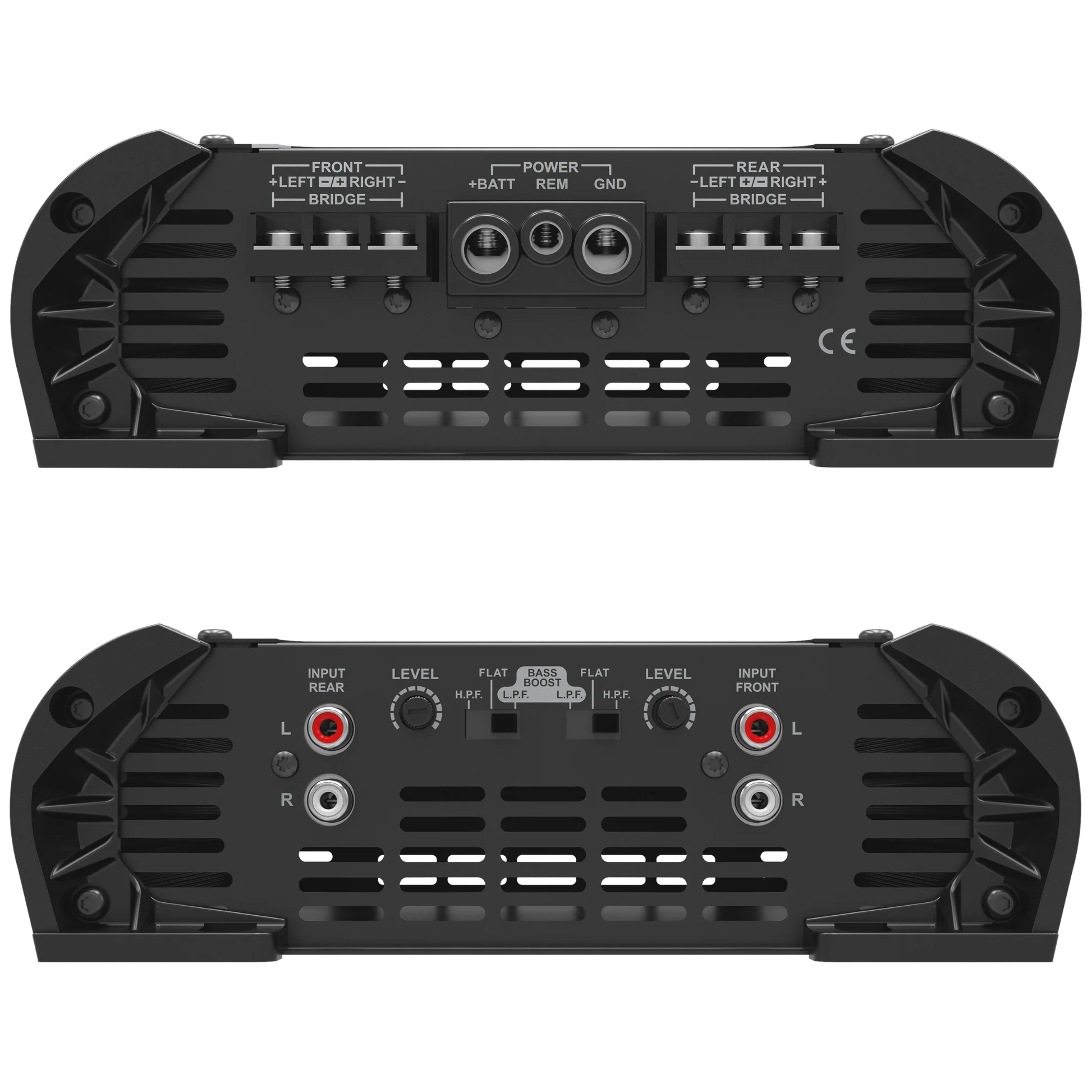

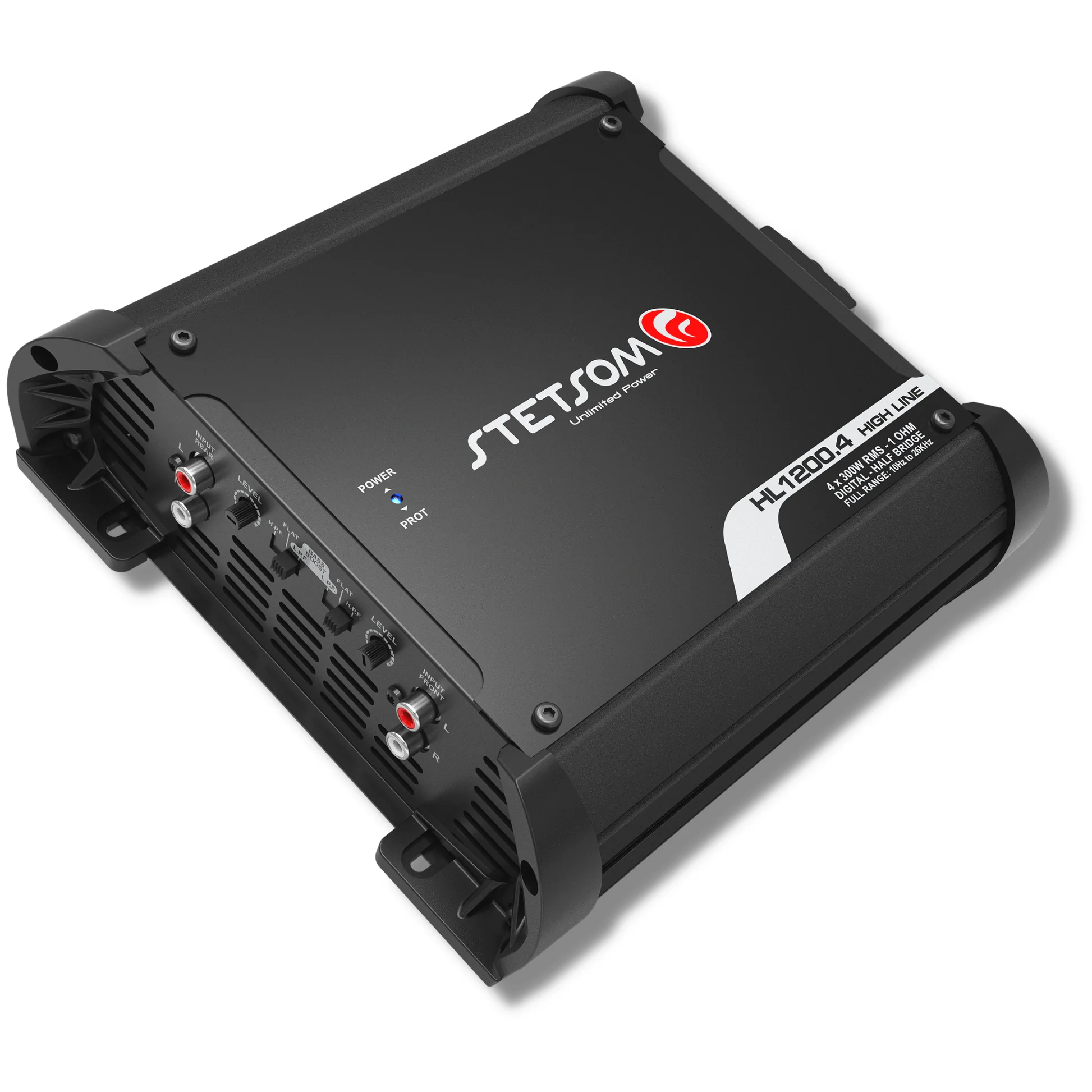

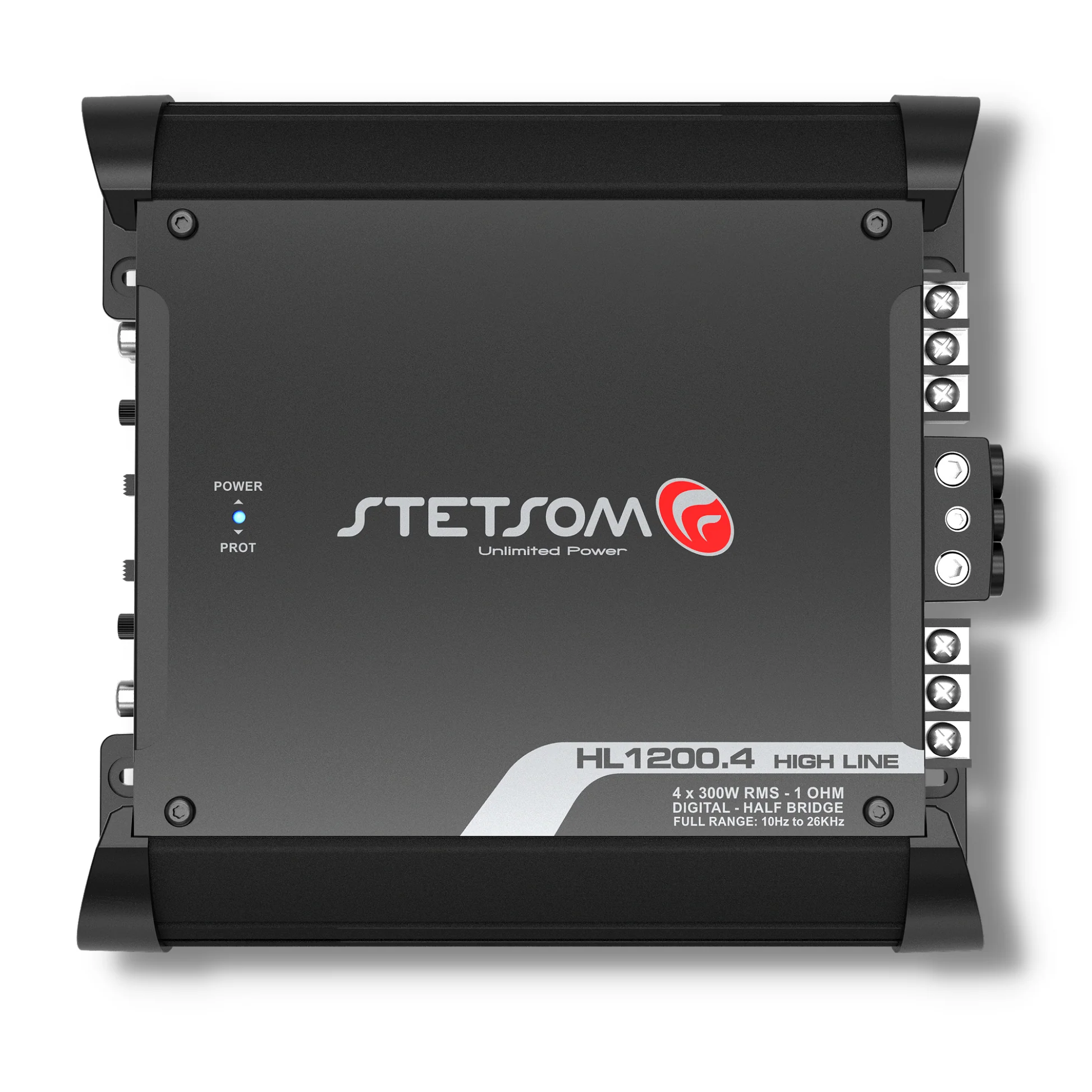

Stetsom HL 1200.4 Digital Amplifier 4 Channels Full Range Class D 1.2k RMS

TECHNICAL SPECS (1 Ohm):

Number of Channels: 4
RMS Power in 1 Ohm 12,6V: 4 x 300W RMS (STEREO)
RMS Power in 2 Ohms 12.6V: 4 x 200W RMS (STEREO)
RMS Power in 1 Ohm 14.4V: 4 x 350W RMS (STEREO)
RMS Power in 2 Ohms 14.4V: 4 x 260W RMS (STEREO)
Power @ 12.6V Bridge 2 Ohms: 2 x 600W RMS (BRIDGE)
Power @ 14.4V Bridge 2 Ohms: 2 x 700W RMS (BRIDGE)
Power Supply: 9 ~ 15V
Frequency Response: 10Hz ~ 26KHz
Bass Boost (Low Pass): +12 dB
Low Pass Crossover: 90 Hz
High Pass Crossover: 90 Hz
Signal to Noise Ratio: > 90 dB
Harmonic Distortion: < 0.3% THD
Input Sensitivity: 0.2 V
Input Impedance: 14K Ohms
Minimum Output Impedance: 1 Ohm (STEREO) / 2 Ohms (BRIDGE)
Consumption with Musical Signal: 57 A
Bass Signal Consumption: 114 A
Dimensions (H x W x L): 2.5” x 8.1” x 8.5”
Weight: 2.2 lb

TECHNICAL SPECS (2 Ohms):

Number of Channels: 4
RMS Power in 2 Ohms 12,6V: 4 x 300W RMS (STEREO)
RMS Power in 4 Ohms 12.6V: 4 x 165W RMS (STEREO)
RMS Power in 2 Ohms 14.4V: 4 x 357W RMS (STEREO)
RMS Power in 4 Ohms 14.4V: 4 x 217W RMS (STEREO)
Power @ 12.6V Bridge 4 Ohms: 2 x 600W RMS (BRIDGE)
Power @ 14.4V Bridge 4 Ohms: 2 x 715W RMS (BRIDGE)
Power Supply: 9 ~ 15V
Frequency Response: 10Hz ~ 26KHz
Bass Boost (Low Pass): +12 dB
Low Pass Crossover: 90 Hz
High Pass Crossover: 90 Hz
Signal to Noise Ratio: > 90 dB
Harmonic Distortion: < 0.3% THD
Input Sensitivity: 200mV
Input Impedance: 14K Ohms
Minimum Output Impedance: 2 Ohms (STEREO) / 4 Ohms (BRIDGE)
Consumption with Musical Signal: 53A
Bass Signal Consumption: 106A
Dimensions (H x W x L): 2.5” x 8.1” x 8.5”
Weight: 2.2 lb
