Description

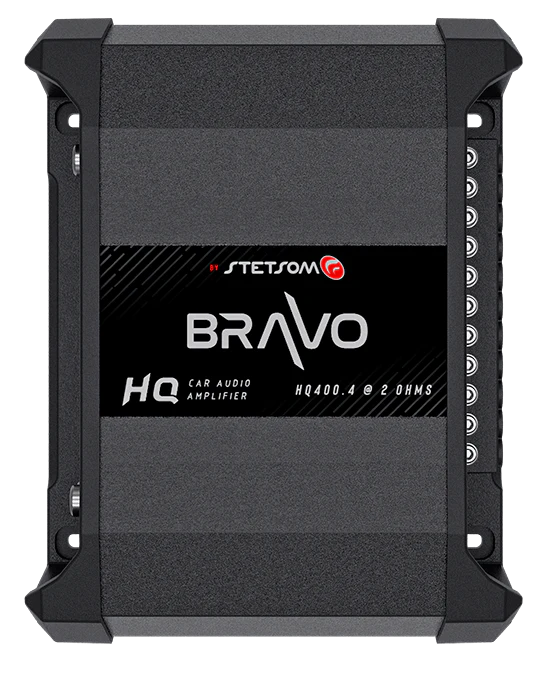

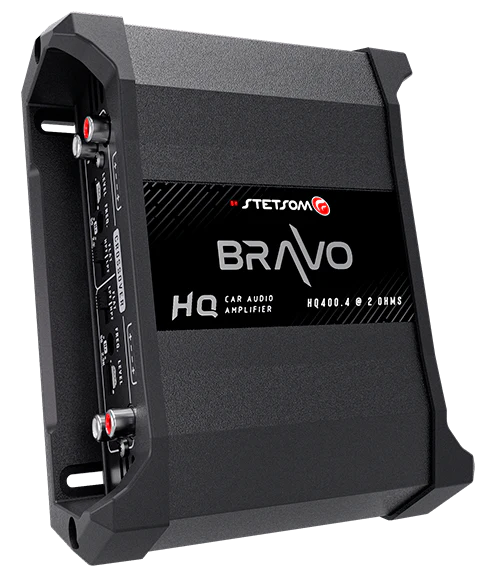

Stetsom Bravo HQ 400.4 Multichannel Car Audio Digital Amplifier – 2 Ohms Stable 4 Channel
he BRAVO HQ range was developed for car audio lovers looking for performance and sound quality, using a compact, discreet and quiet amplifier.

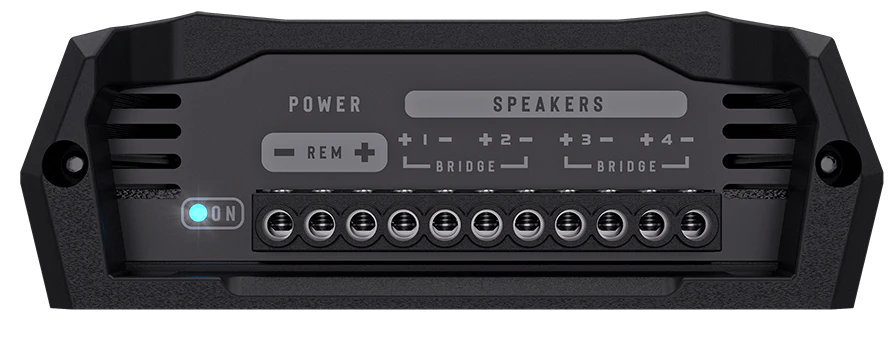

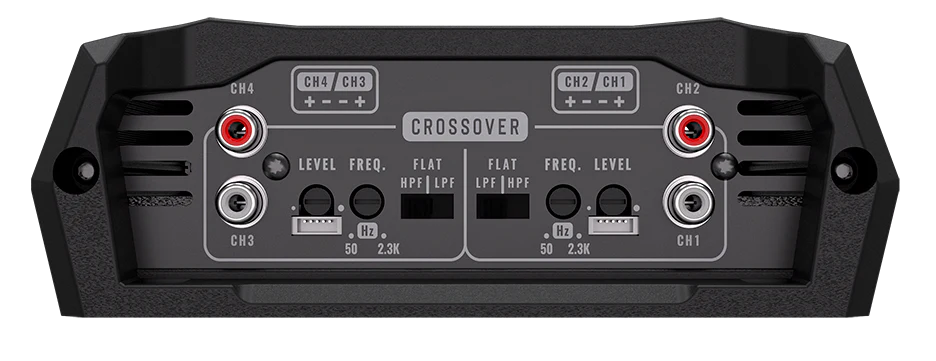

The amplifier has 4 output channels compatible with bridge mode, frequency cut and level controls, perfect for precise adjustments. Its frequency response of 5Hz to 30kHz allows it to be used in a variety of projects, with subwoofers, woofers, drivers and tweeters.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO HQ400.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power | 400W |
| RMS Power at 4 Ohm | 2 x 180W RMS @ 14.4V (BRIDGE) |
| RMS Power at 2 Ohm 12.6V | 4 x 85W RMS |
| RMS Power at 4 Ohm 12.6V | 4 x 50W RMS |
| RMS Power at 2 Ohm 14.4V | 4 x 105W RMS |
| RMS Power at 4 Ohm 14.4V | 4 x 60W RMS |
| Power @ 12.6V Bridge 4 Ohms | 2 x 150W RMS (BRIDGE) |
| Supply Voltage | 9V ~15,5V DC |
| Frequency Response | 5Hz ~30KHz |
| Crossover Low Pass | 50Hz ~ 2,3KHz (Variable) |
| Crossover High Pass | 50Hz ~ 2,3KHz (Variable) |
| Signal to Noise | >90dB |
| Harmonic Distortion | <1% |
| Input Sensitivity | RCA: 200mV ~ 8,0V / HIGH: 1,5V (FIO) |
| Input Impedance | RCA: 15K Ohms / HIGH: 1K Ohms |
| Impedance Output | 2 OHMS (STEREO) |
| Consumption with Signal Musical | 17A |
| Consumption with Signal Bass | 34A |
| Dimensions (H x W x D) mm | 58,5 x 127 x 167 mm |
| Weight Kg | 640g |
