Description

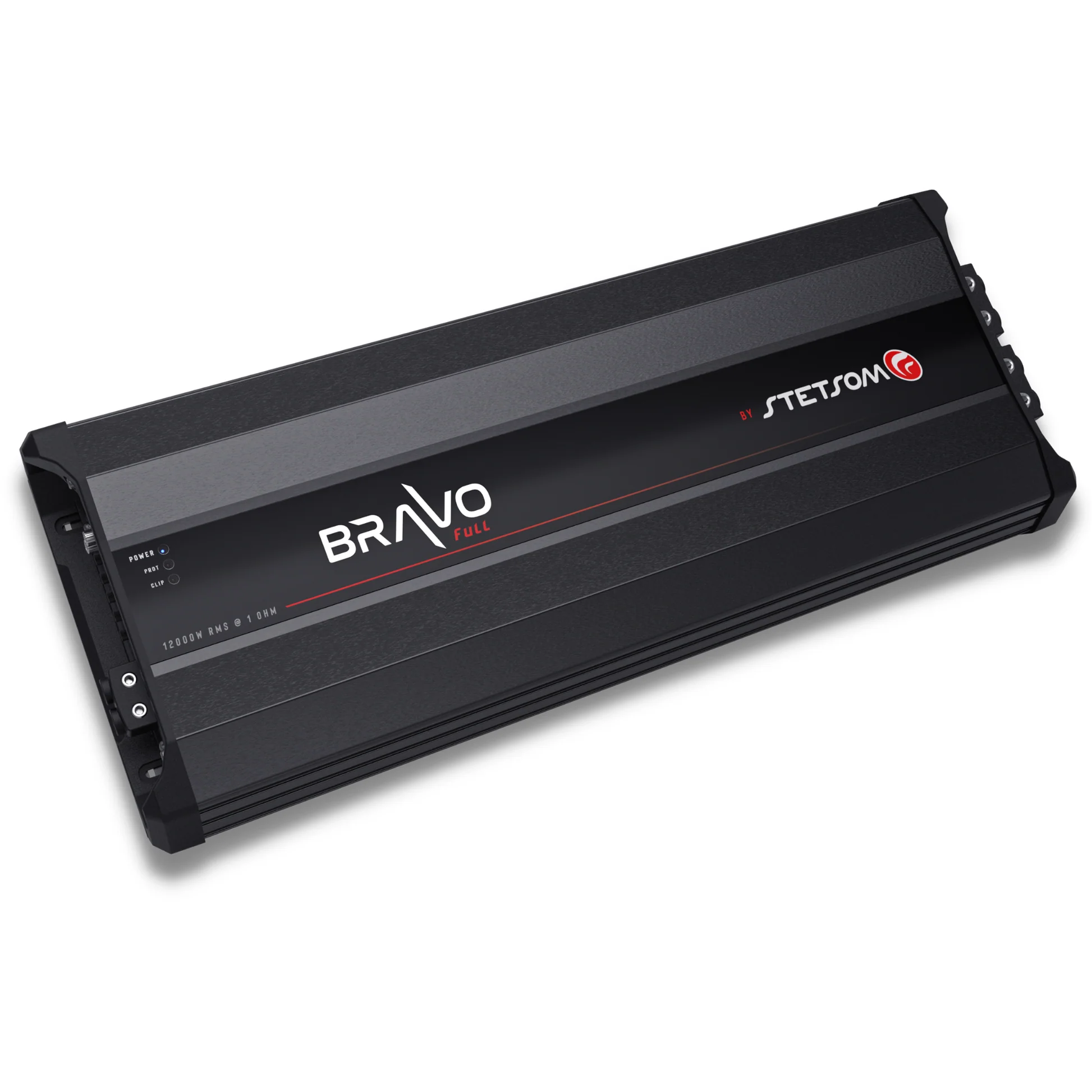

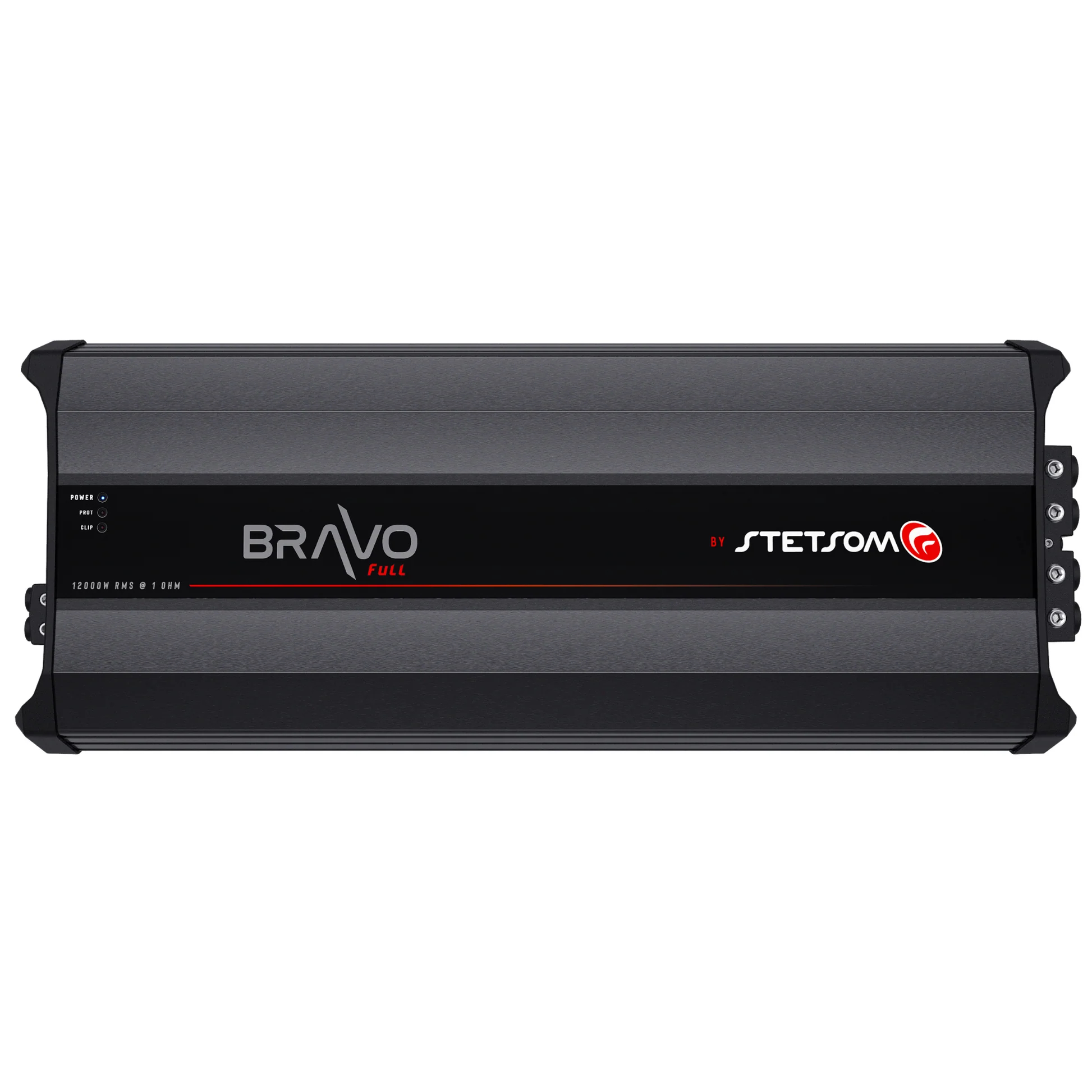

Stetsom BRAVO FULL 12K Digital Full-Range Amplifier Mono 1 Channel Class D 12000 Watts RMS

TECHNICAL SPECIFICATIONS

CHARACTERISTICS BRAVO FULL 12000
Number of channels 1
Power Output at 14.4v 12800W RMS at 1 Ohm
Power Output at 12.6v 12000W RMS at 1 Ohm
Signal to noise ratio >90dB
LPF 90Hz ~ 7KHz
HPF 5Hz ~ 90Hz
Supply Voltage 9v ~ 16v DC
Power connectors 00 AWG ( up to 3 meters )
Ground connectors 000 AWG (greater than 3 meters)
Remote conector 18 AWG
Speakers 5 AWG
Fuse 700 A

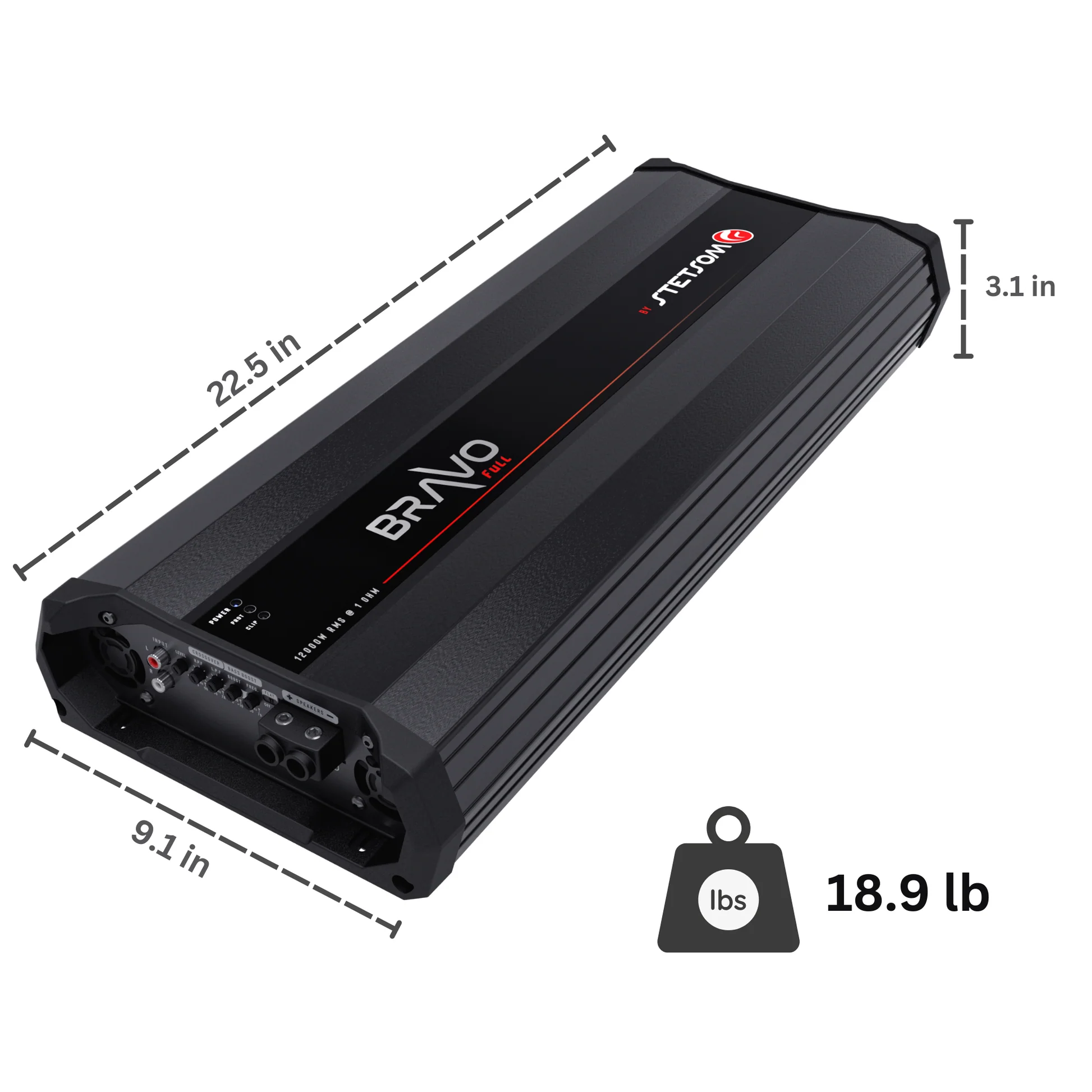

Dimensions ( H x W x L ) 3.1″ x 22.5″ x 9.1″
Weight 18.9 lb
