Description

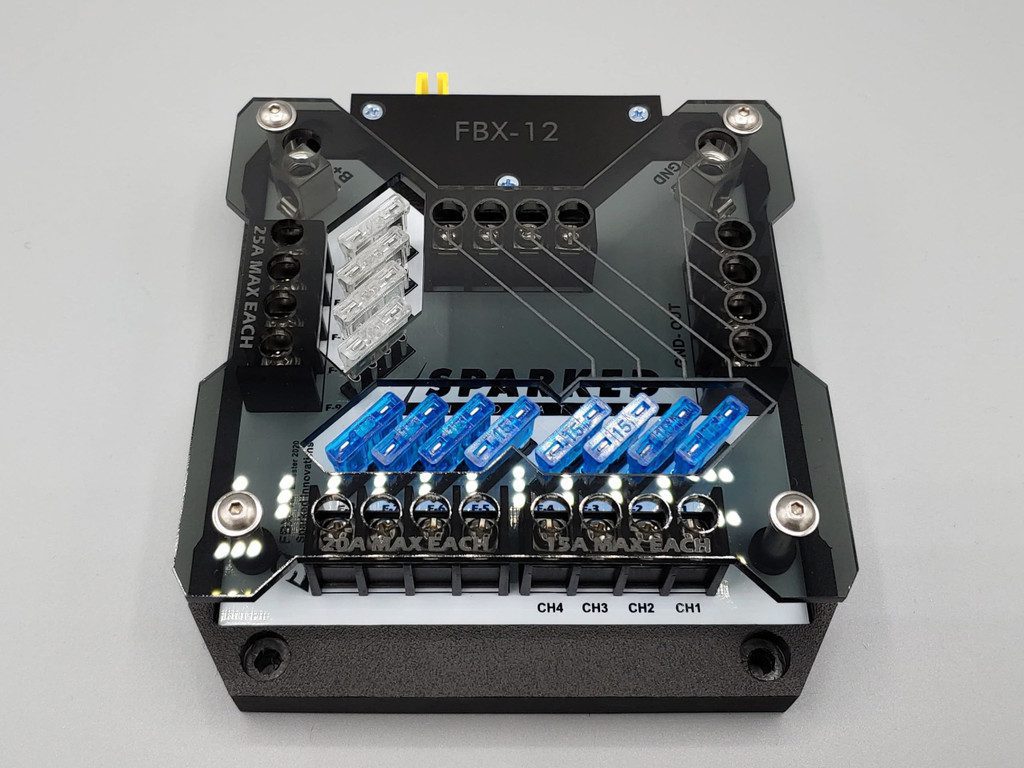

The FBX-12 from Sparked Innovations is a 12 position ATC blade fuse box designed to provide easy fusing for smaller accessories and add-ons like fans, DSPs, lights, actuators, crossovers, airbags, horns, voltmeters, bass enhancers, or any other 12VDC accessory up to 25A each output. Four positions are designed as a pass-through to run inline fusing up to 15A each. The FBX-12 also offers a negative ground distribution terminal and included fuse puller. The board is designed to handle 180A.
Features
- All-in-one wire distribution and protection
- High quality PCB circuit integration
- Fused protection
- Fused distribution for constant positive (+) and negative (-) outputs
- Designed, engineered, and handcrafted in the U.S.A.
- Convenient wire hold-down plate
Dimensions:6.0”L x 5.2”W x 1.2”H
Operation Voltage: 9~18V DC
Number of main power channels: 8
Number of independent in-line channels: 4
Total peak current capacity: 180a
Current capacity per channel: 15a
Fuses: 4 X 15A ATC, 4 X 20A ATC, 4 X 25A ATC
Power wire input: 4 ~ 10 AWG
Remote input terminals: 10 ~ 22 AWG Fork terminals or bare wire
Output terminals: 10 ~ 22 AWG Fork terminals or bare wire
Weight: 12.2 oz
