SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D – Steve Meade Designs

• 5 Channel Stereo Full Range & Subwoofer Monoblock
• Exclusive SMD Design ~ Class AB & D(SUB)
• 1 – 4 Ohm Stable ~ 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D
• VM-1 Voltmeter ~ Fans ~ Input Selector
• Acrylic Window ~ Digital LED Lighting w/ Remote
• Bass Knob ~ LED Indicators ~ Made in Korea

Key Features

• Exclusive SMD design with VM-1 voltmeter
• Front acrylic window and digital RGB lighting
• IR remote control for LED patterns and colors
• Professional Tiffany RCA terminals
• Dual cooling fans for Enhanced Performance
• Korean components, OFC Internal Wiring

Product Overview

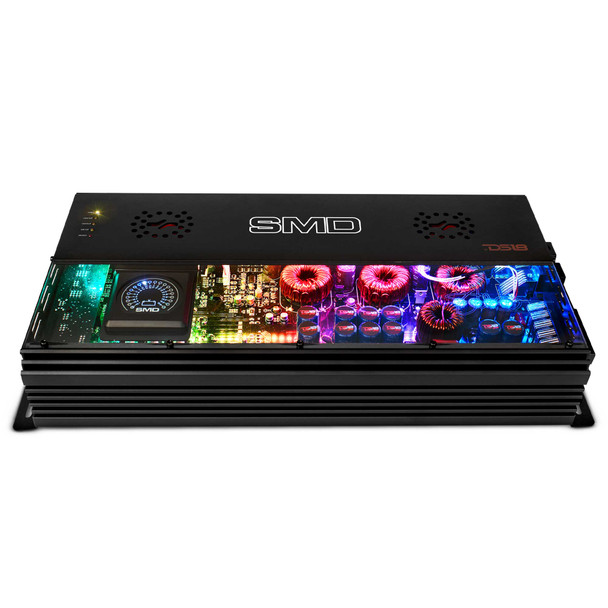

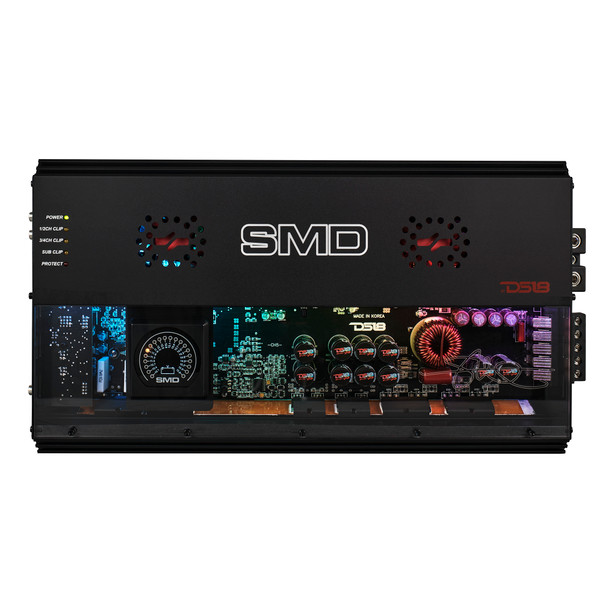

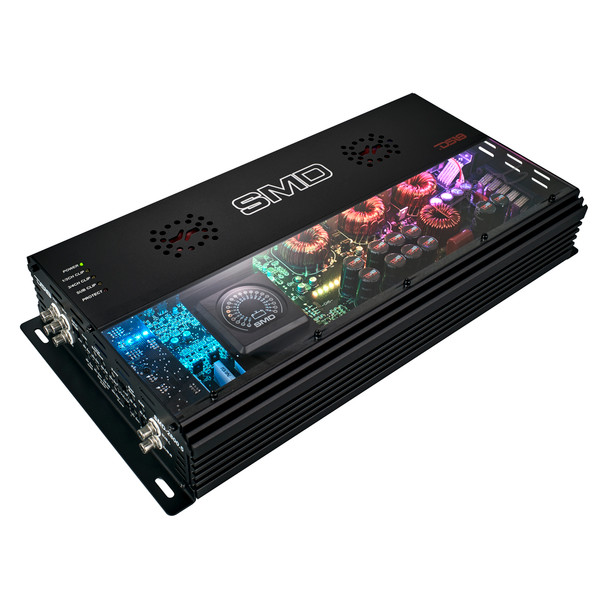

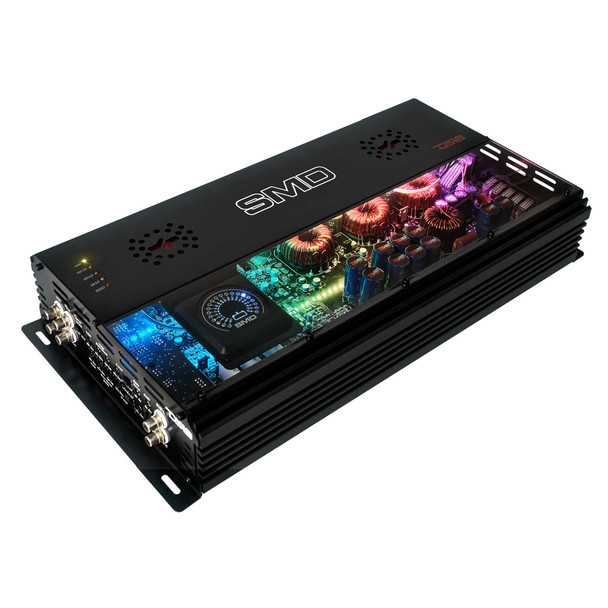

Introducing the SMD-2800.5— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest,” says Steve Meade.

With the SMD-2800.5, we achieved that and more. What sets the SMD-2800.5 apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-2800.5 is not only visually striking but also engineered for top-tier performance. It delivers an impressive 180W x 4 + 700W (SUB) RMS at 4-ohm, 250W x 4 + 1100W (SUB) RMS at 2-ohm, and a powerful 1800W RMS (SUB) at 1-ohm. Bridging the channels offers 500W x 2 RMS for CH1~CH4, driving even the most demanding setups with ease.

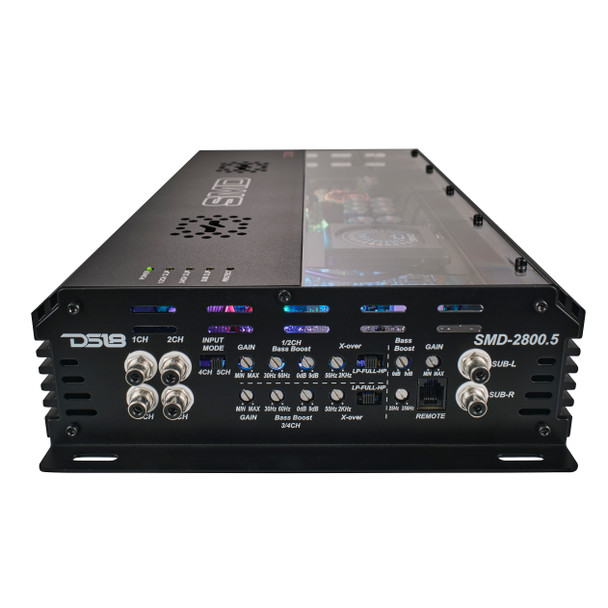

The SMD-2800.5 is designed for audiophiles seeking superior sound quality across a variety of channels. As a Class AB + D amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 300A fusing requirement, it’s built for robust power delivery. Additional features include selectable 4/5 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.

Crafted with precision using only the best components, DS18’s SMD-2800.5 is a full-range and subwoofer amplifier capable of powering anything—from subs and tweeters to midbass vocals and any front, rear, and subwoofer combination of speakers. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.

Push the limits of what’s possible with the SMD-2800.5’s groundbreaking design and raw power!
