Description

SAEv4-2000.1D Amplifier

2,000 x 1 @ 1 ohms RMS
1,300 x 1 @ 2 ohms RMS
875 x 1 @ 4 ohms RMS
Class D amplifier

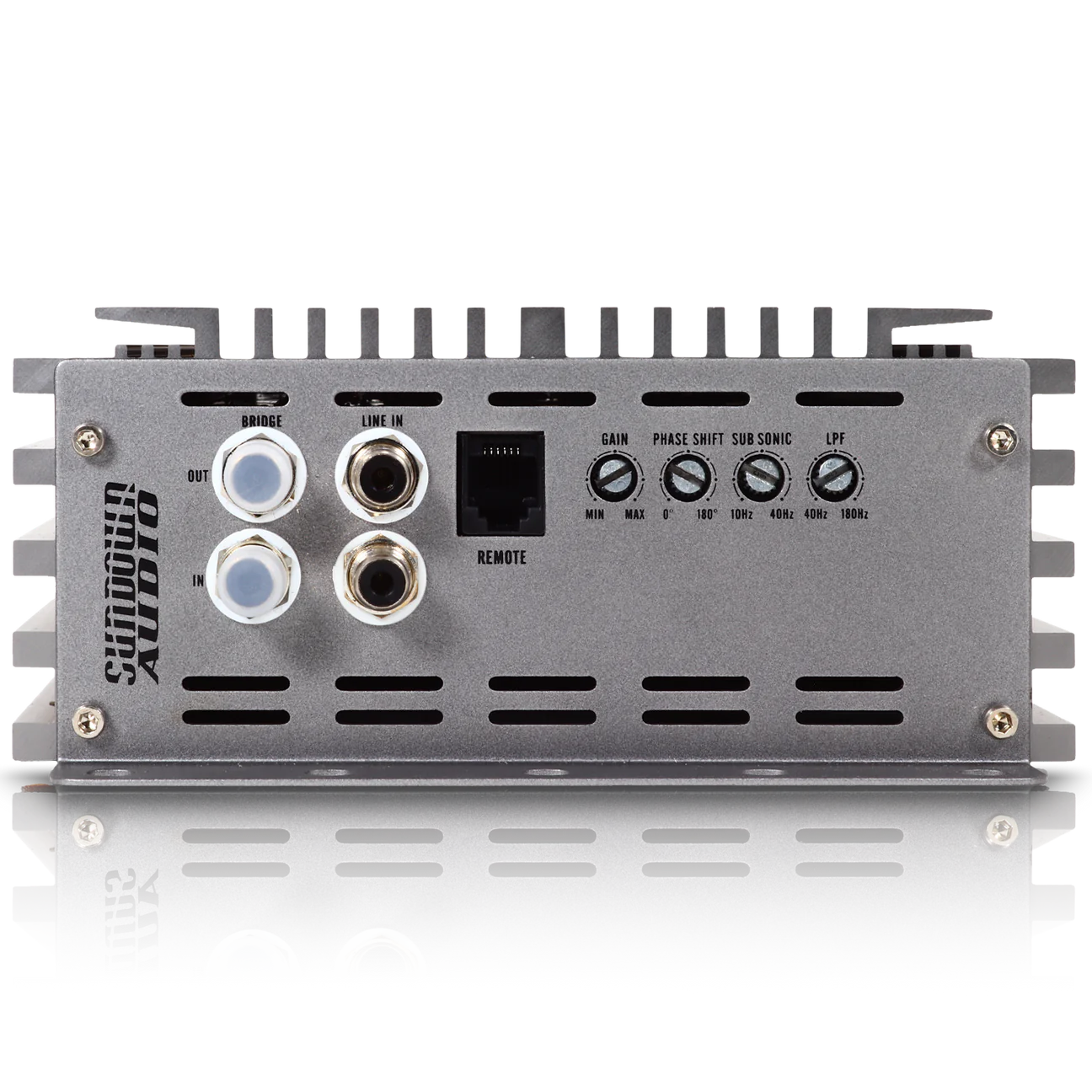

12dB variable low pass filter: 40Hz – 180Hz
12dB subsonic filter: 10Hz – 40Hz
Phase shift control 0-180 degrees
Power, clipping & protection indicators included

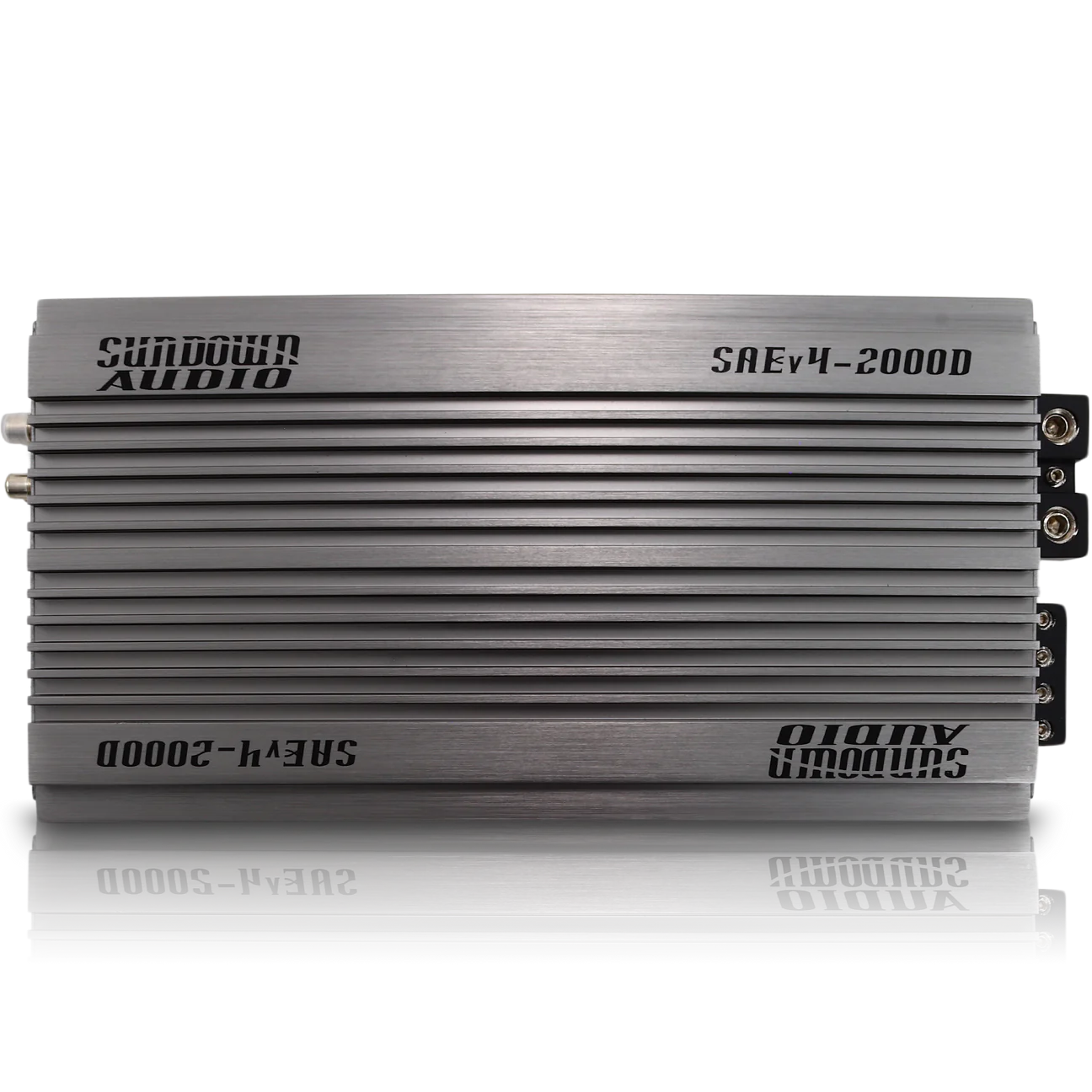

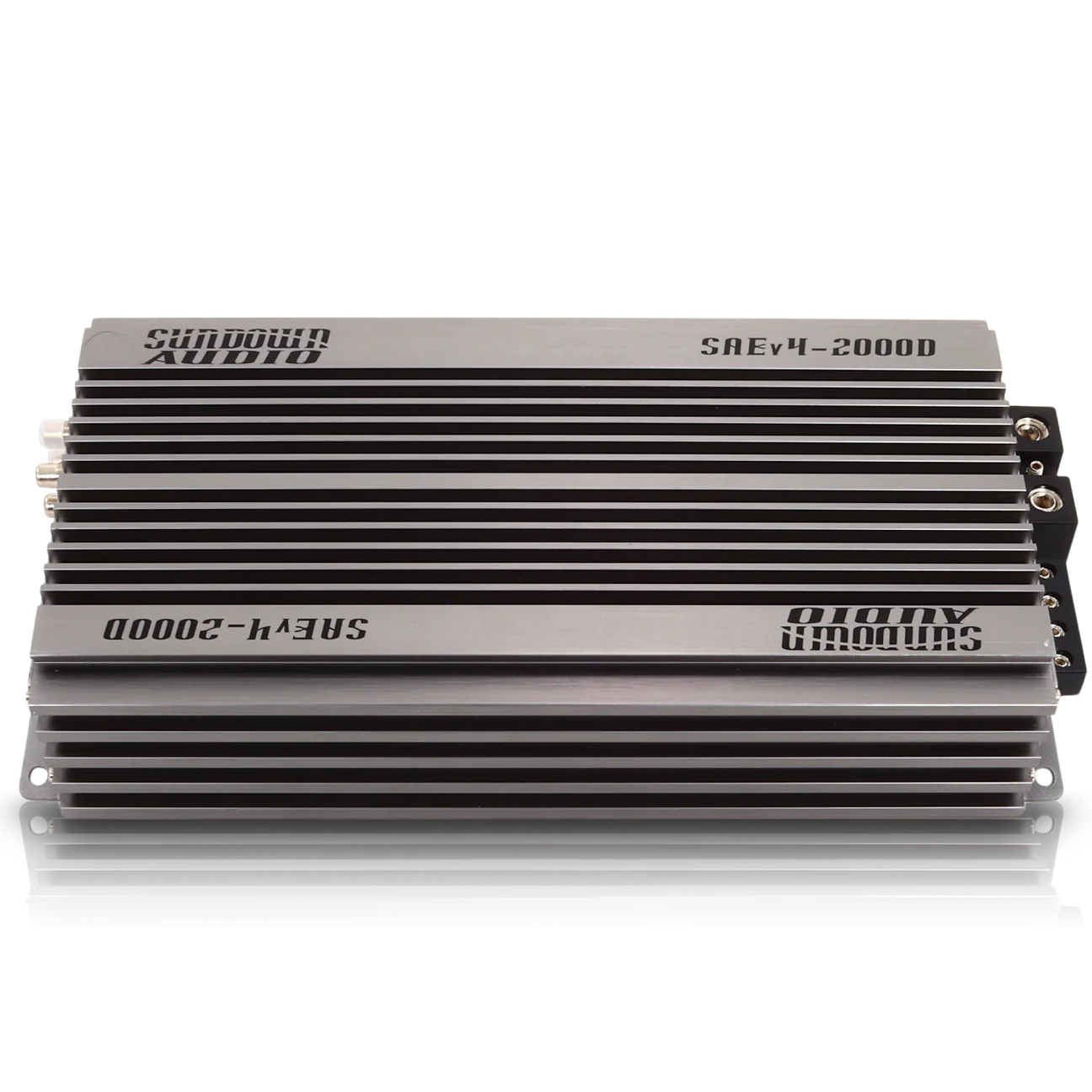

Heavy aluminum heat sink for improved thermal control
Thermal, voltage, speaker short, and dc-offset protection circuitry
Wired remote control with clipping indicator
Getting big clean bass to your subs is what Sundown is all about. SAEv4 high-performance half-bridge class D amplifiers deliver powerful, detailed power. The variable phase, lowpass and subsonic filters provide the control you need – for the sound you love.

Featuring robust protection circuitry against thermal, voltage, speaker short, and DC-offset issues, along with power and protection indicators, this amplifier guarantees long-lasting durability, while the heavy aluminum heat sink enhances thermal control, preventing overheating during extended use. The included wired remote with clipping indicator provides real-time monitoring and output control!

Product Manual
Specifications
Input Sensitivity 6V Max
Dual MOS-FET PWM Power Supply
Signal / Noise Ratio : 92DB
Operation Voltage : DC 10.5V – 15.5V Power Input
Recommended Fuse : 180 Amps
Dimensions : 13.98” L x 6.3” W x 2.75” H
