Description

SA-Series v.3 8″ Subwoofer

RMS 500 watts
Dual 2 or 4 ohm voice coils

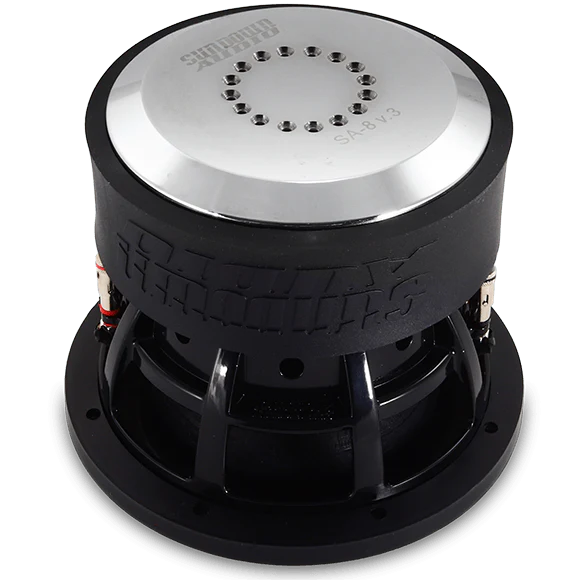

Vented magnetic gap with 16 chamfered vents
Large aluminum Faraday ring for smooth acoustic response
Patented high-strength cast aluminum frame
Low distortion motor construction
High-temperature voice coil wire

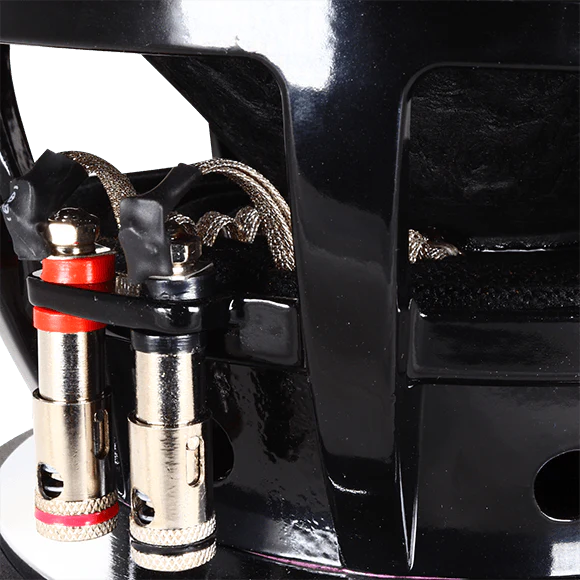

Spring-loaded terminals
Stitched-on “XL” tinsel lead wires
The pinnacle of low distortion ported box subwoofer technology, the SA 8-inch sub is completely custom tooled. It has a full 16mm of one-way linear excursion and mechanical capacity, exceeding double the linear limits, ensuring durability and low distortion. The v.3 update includes a new surround with linear geometry and improved thermal performance with the addition of 16 chamfered gap vents to keep high-velocity air flowing over the voice coil.
SA V.3 8″
RE (Ohms) 3.36 6.0
FS (Hz) 38.29 40.0
VAS (L) 6.88 7.17
Qes 0.324 0.392
Qms 6.31 4.31
Qts 0.309 0.36
Le (mH) 2.08 3.32
BL (NA) 18.94 22.06
Mms (Grams) 144 126.6
Cms (uM/N) 120 125
Sens (dB @ 1w/1m) 82.79 82.71
Xmax 16mm 16mm
T/S SPECS SAV3 8″ D2 SAV3 8″ D4
SA V.3 8″
Sealed Enclosure 0.3 cu ft
Ported Enclosure 0.65 cu ft
Recommended Tuning 35Hz
Recommended Port Area 9 sq in
Displacement 0.08 cu ft
Depth 6.625″
Outside Diameter 8.375″
Cut-Out 7.375″
Physical Dimensions Download
