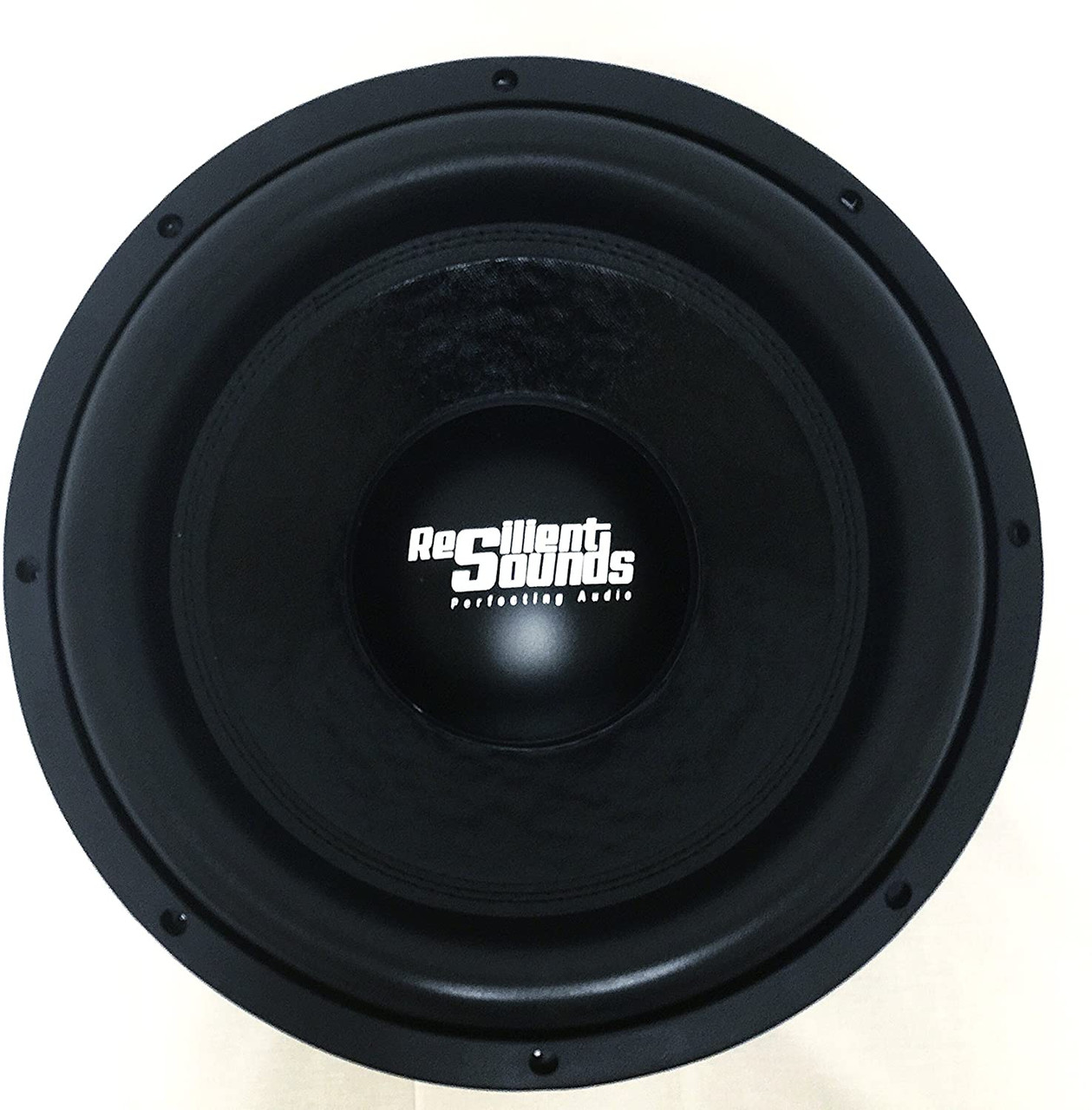

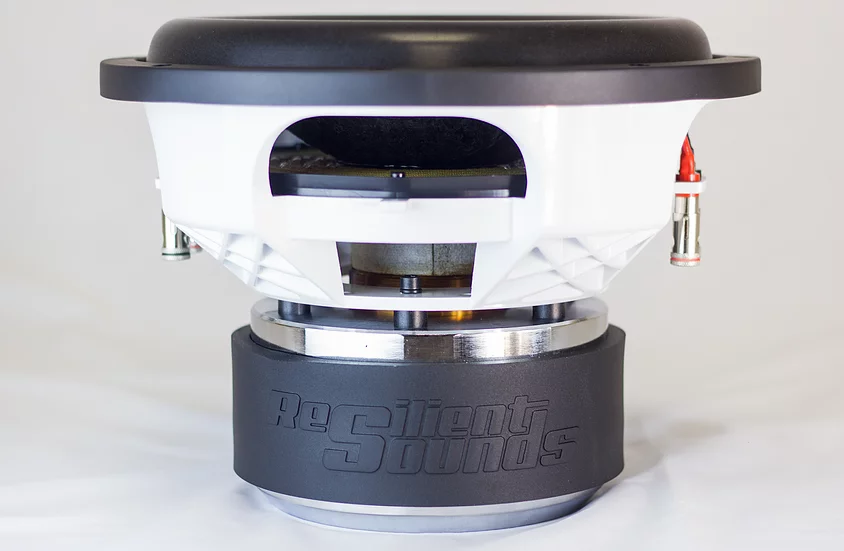

Resilient Sounds Gold 12″

$419.95

-

Description

The RS Gold Series is geared towards audio fanatics searching for a low distortion and high performance driver without breaking your budget! The Gold Series will be available in 12” and 15” featuring a 3” 4 layer VC, triple stacked 9.25” nomex progressive spiders with dual sewn leads, and a fea optimized triple stack motor with an aluminum shorting ring conservatively rated 1000 watts rms / 2000 watts peak



SPECS



RMS: 1000

SPL: 85.1 dB

FMS: 26.7 Hz

BL: 24.5

Res: 74.6

Re: 8.0

Qms: 5.15

Qes: 0.49

Qts: 0.45

Rms: 7.1 kg/s

Cms: 0.16 mm/N

Mms: 218.6 gr

Nref: 0.21%

VAS: 54.9 L

Rp: 77.4

Lp: 103.7 mH

Cp: 436.9 uF

Le: 4.97

Xmax: 28

  • BOX HEALTHY RECOMMENDATIONEvery vehicles applications, equipment, tuning, wiring, ext all play a factor in making sure your woofers are playing clean signals to avoid any clipping. Our products have the reputation of taking some of the most abuse in the industry for its given power rating, but to ensure the longevity using the right air space and scoping for a clean signal will be sure to have a lasting daily resilient subwoofer.

    Suggested Healthy spec range.

    Rule of thumb lean towards smaller enclousre if clamping @ or more than conservative power. Lean towards bigger enclosure clamping below conservative power



    Ported enclosure

    1.7ft-2.5ft tuned @32hertz with 12-16sqaure inch of port area per cubic foot.



    MOUNTING DEPTH 8″ | CUTOUT 11.2″

Additional information

Weight 11.0 kg
Voice Coil Option

Dual 2 Ohm, Dual 4 Ohm
