Description

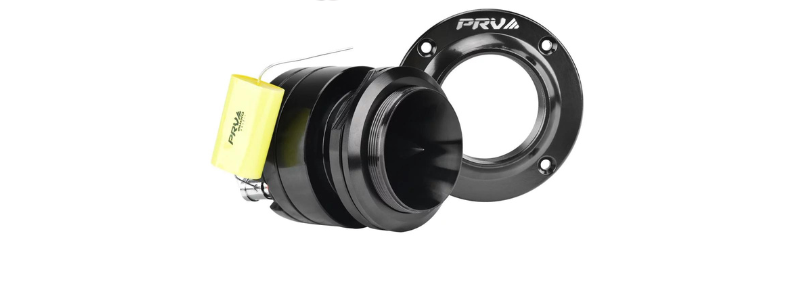

PRV Audio’s TW450Ti-Nd-4 super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 107 dB from 4,500 to 20,000 Hz.
Not only does this driver look as good as it sounds, it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.
Add detail to any speaker with PRV Audio’s TW450Ti-Nd-4 titanium bullet super tweeter!
Highlights
- 1″ Bullet Super Tweeter
- Nominal Impedance: 4O
- Titanium diaphragm for accurate and detailed response
- Screw fittings make rear mounting easy and simple
- 2 Mounting options (3 Rings supplied)
- Voice Coil Diameter: 1″
GENERAL SPECIFICATIONS
| Nominal impedance | 4 Ohms |
| Rated AES Power Handling (RMS) | 60 Watts |
| Program Power | 120 Watts |
| Sensitivity 2.00V at 1m | 107 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 6000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 4,500 – 20,000 Hz |
| Voice Coil Diameter | 1.0” (25.4 mm) |
| Voice Coil Wire | Aluminum |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.45 T |
| Magnet Material | Neodymium |
EXTRA INFO
| Overall Depth | 2.68” (68 mm) |
| Mounting Depth | 1.57” (40 mm) |
| Overall Diameter | 3.03” (77 mm) |
| Cutout Diameter | 1.69” (43 mm) |
| Net Weight | 1.25 lbs (0.57 kg) |
| Shipping Weight | 1.37 lbs (0.62 kg) |
| Carton Dimensions W x L x H | 3.35” x 3.35” x 3.57” (85 x 85 x 91 mm) |
