Description

• Features

  • Digital Class-D Linkable Mono Block Amplifier
  • Patent Pending SplitForce Technology
  • Dual MOS-FET Pulse Width Modulation Power Supply
  • 1 Ohm Stable Topology
  • 24dB/octave – Variable State Subsonic Filter
  • 24dB/octave – Variable State Low Pass Filter
  • Input Voltage Display
  • Heavy Duty Copper Layer Double Sided Epoxy PCB
  • Segmented Black Molded Oversized 1/0 Power and Ground Inputs
  • 4 AWG Speaker Connections
  • Proprietary Custom Tooled Heatsink with Onboard PCB Support For Vibration Resistance
  • High End Silver Tiffany RCA Inputs with Metal Potentiometers
  • Advanced Strapping with Mirror Technology
  • Multi-Layer Bullet Proof Protection Circuit ( Thermal, Voltage, Speaker Short, DC)
  • Remote Bass/Gain with Clipping Indicator

  Specifications

  Rated Power ( 14.4V at 1% THD )	IX8.1
  RMS Power – 2 Ohm Linked :	16,000W
  RMS Power – 1 Ohm Mono :	8000W
  RMS Power – 2 Ohm Mono :	4000W
  RMS Power – 4 Ohm Mono :	2000W
  Low Pass Filter ( 24dB/Oct. ) :	35Hz – 250Hz
  Subsonic Filter ( 24dB/Oct. ) :	10Hz – 50Hz
  Frequency Response ( +/- 1dB ) :	15Hz – 270Hz
  Bass Boost ( 45Hz ) :	0 – 9dB
  Input Sensitivity ( Volt +/- 5% ) :	6.0V – 0.2V
  Signal / Noise Ratio :	90dB
  Dampening Factor ( 1 Ohm ) :	350 +
  Master/Slave/Mirror :	Included
  Power Efficiency ( 4 Ohm ) :	90%
  Fuse Rating ( 14.4V ) :	700A
  Fuse Rating ( 14.4V Linked ) :	1400A

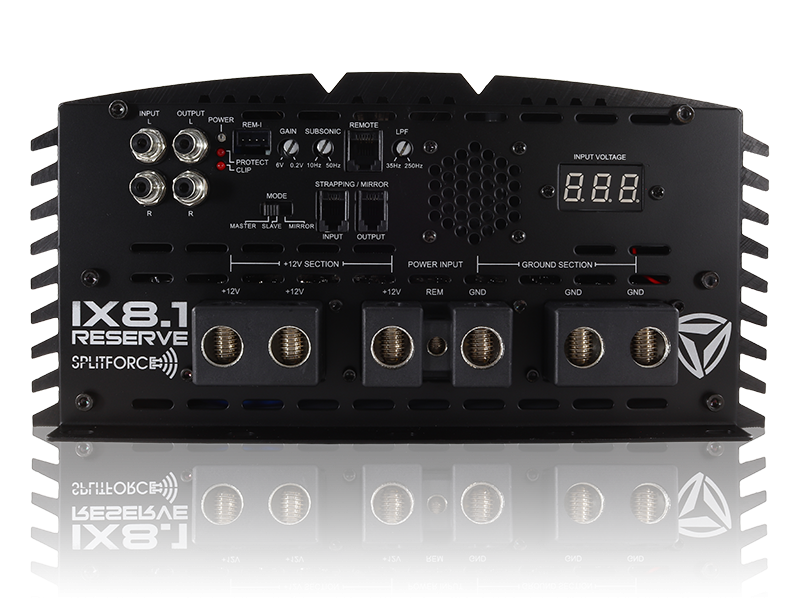

  Segmented Power Input Connection :	1/0 AWG
  Operation Voltage :	8.5V – 16.0V

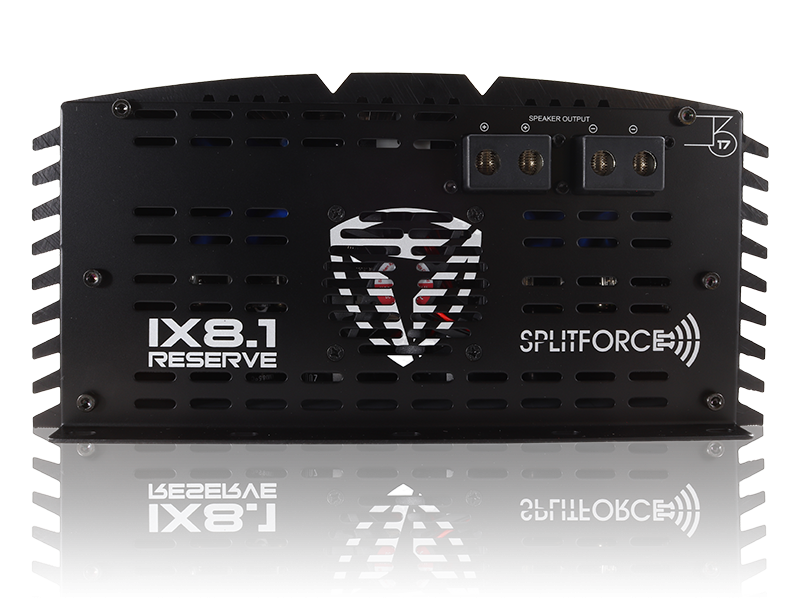

  Speaker Output Connection :	4 AWG
  Dimensions ( Inches ) :	10.63 W x 5.12 H x 16.53 L
  Dimensions ( Millimeters ) :	270 W x 130 H x 420 L
