Description

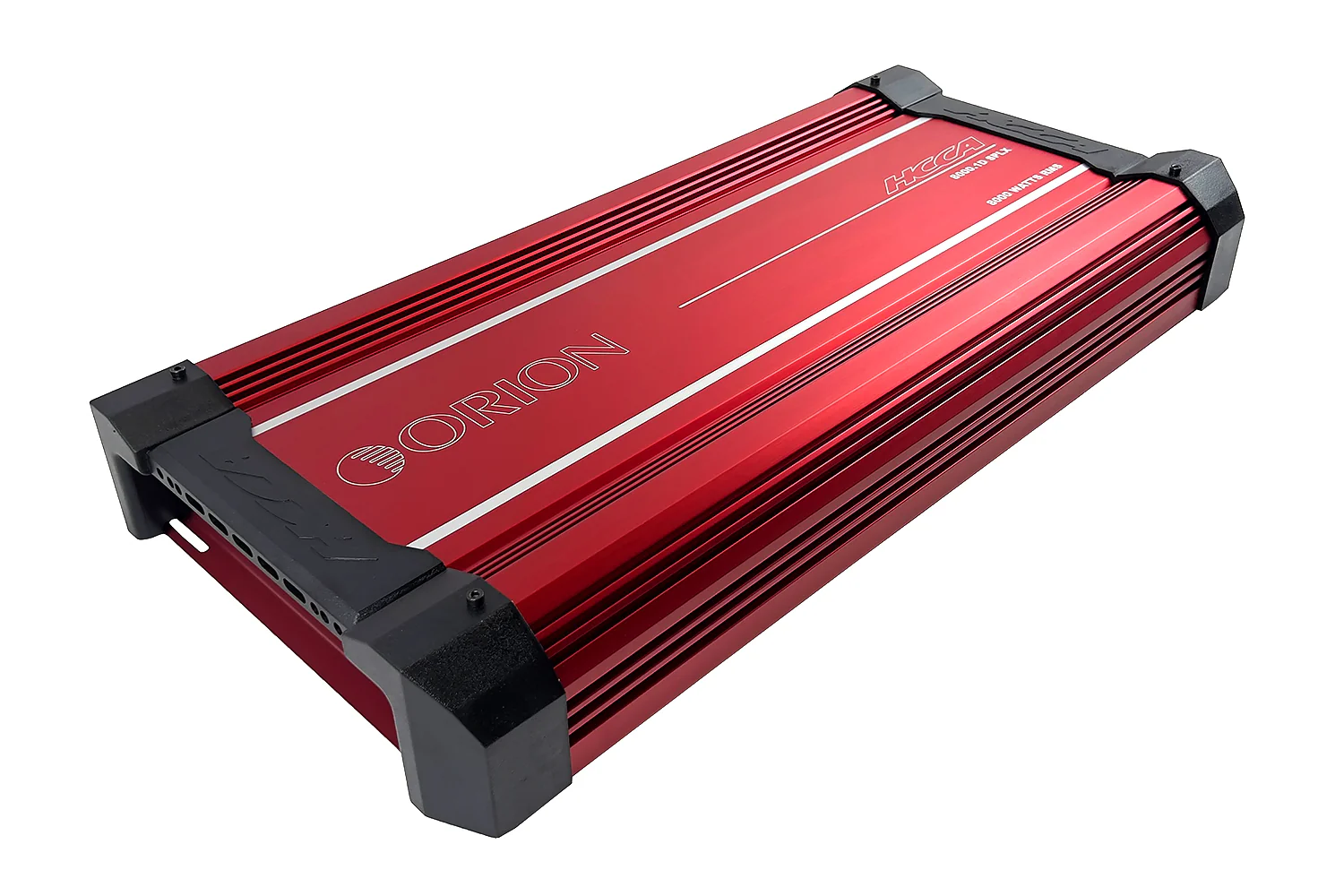

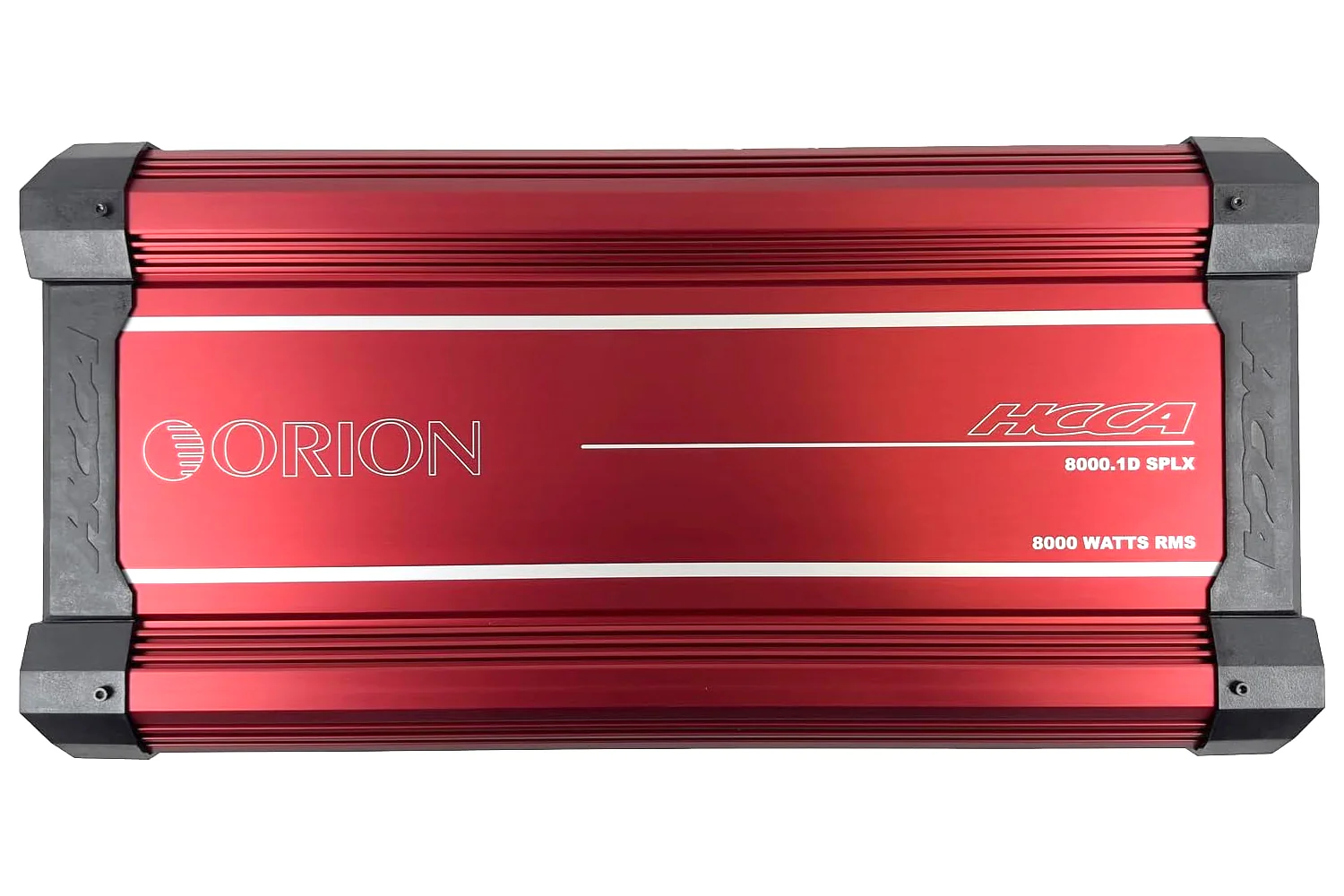

The ORION HCCA8000.1DSPLX HCCA Series 8000W RMS 1-Channel Class-D Amplifier

Unleash Unrivaled Power and Precision: The  HCCA8000.1DSPLX ORION Amplifier Hcca​ Series 8000W RMS 1-Channel Class-D Amplifier defines the pinnacle of power and precision in car audio. Engineered for audio purists and enthusiasts seeking unparalleled performance, this amplifier redefines your audio experience with unprecedented power and accuracy.

• – RMS Power @ 4 Ohms @ 0.5% THD+N: 2900W
• – RMS Power @ 2 Ohms @ 0.5% THD+N: 5000W
• – RMS Power @ 1 Ohm @ 0.5% THD+N: 8000W
• – Linked with identical Amplifier
•   RMS Power @ 2 Ohms @ 0.5% THD+N: 17000W

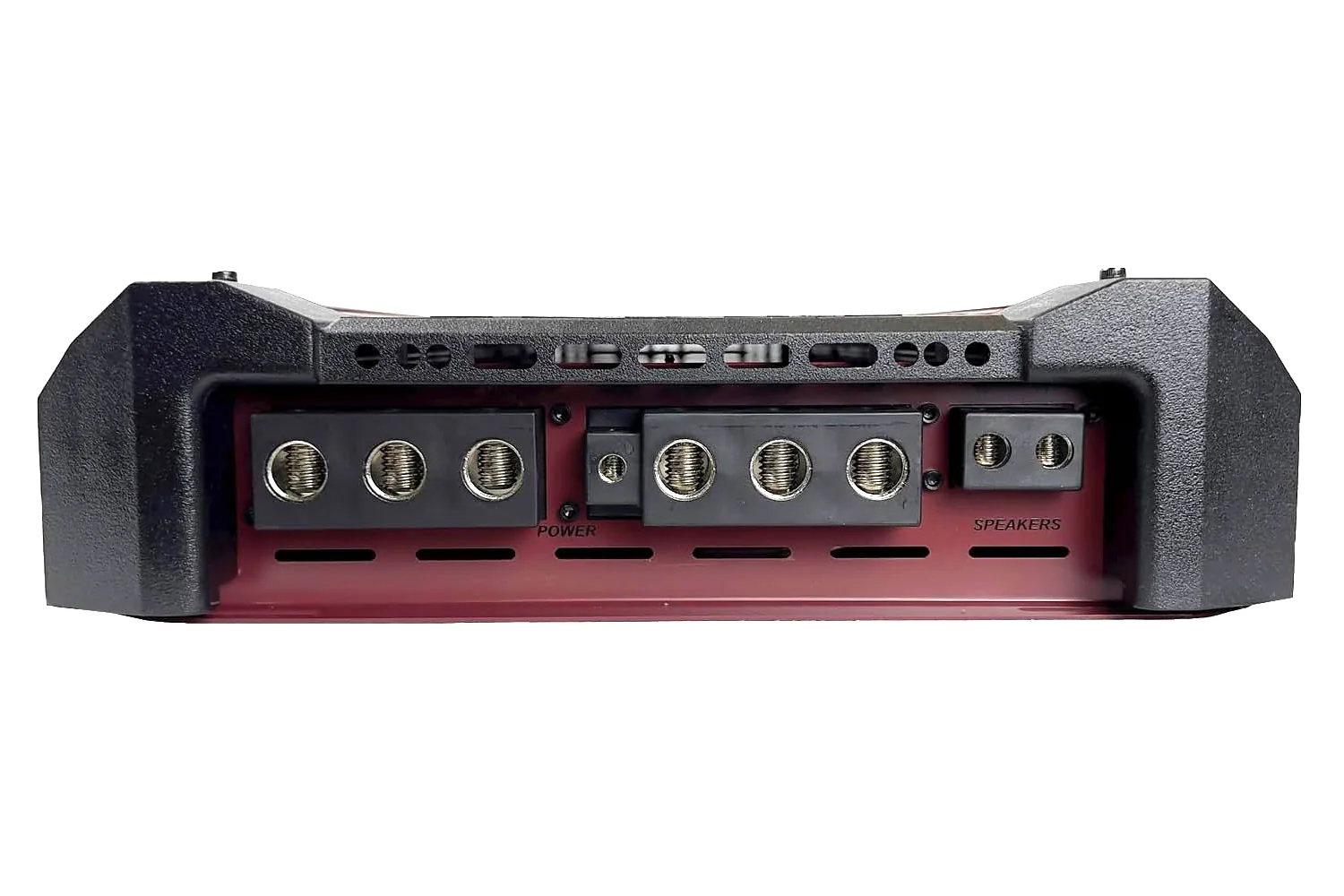

•  POWER TERMINAL MANAGEMENT
•   Positive Terminals: 3 x 0 AWG.
•   Negative Terminals: 3 x 0 AWG.
•   Remote Turn-ON Signal: 10 AWG.
•   Speaker Output Terminals: 4 AWG.

• – Frequency Response: 15Hz – 250Hz
• – Low Pass Crossover: 40Hz – 300Hz
• – Supply Voltage: 9 – 16V
• – Amplifier Efficiency: >88%
• – Damping Factor: 200dB
• – Signal to Noise Ratio: >90dB
• – T.H.D. & Noise: 0.5%
• – Input Impedance: 24K Ohms
• – Phase Shift: 0 – 180
• – Bass Boost: 0-18dB Variable
• – Subsonic Filter: 10 – 40Hz
• – Variable Input Level Control: 0.2V – 6.0V
• – Fuses: 750A recommended (not included)
• – Dimensions (L x W x H): 24.02″ x 11.89″ x 3.15″ (610x302x80mm)
