Description

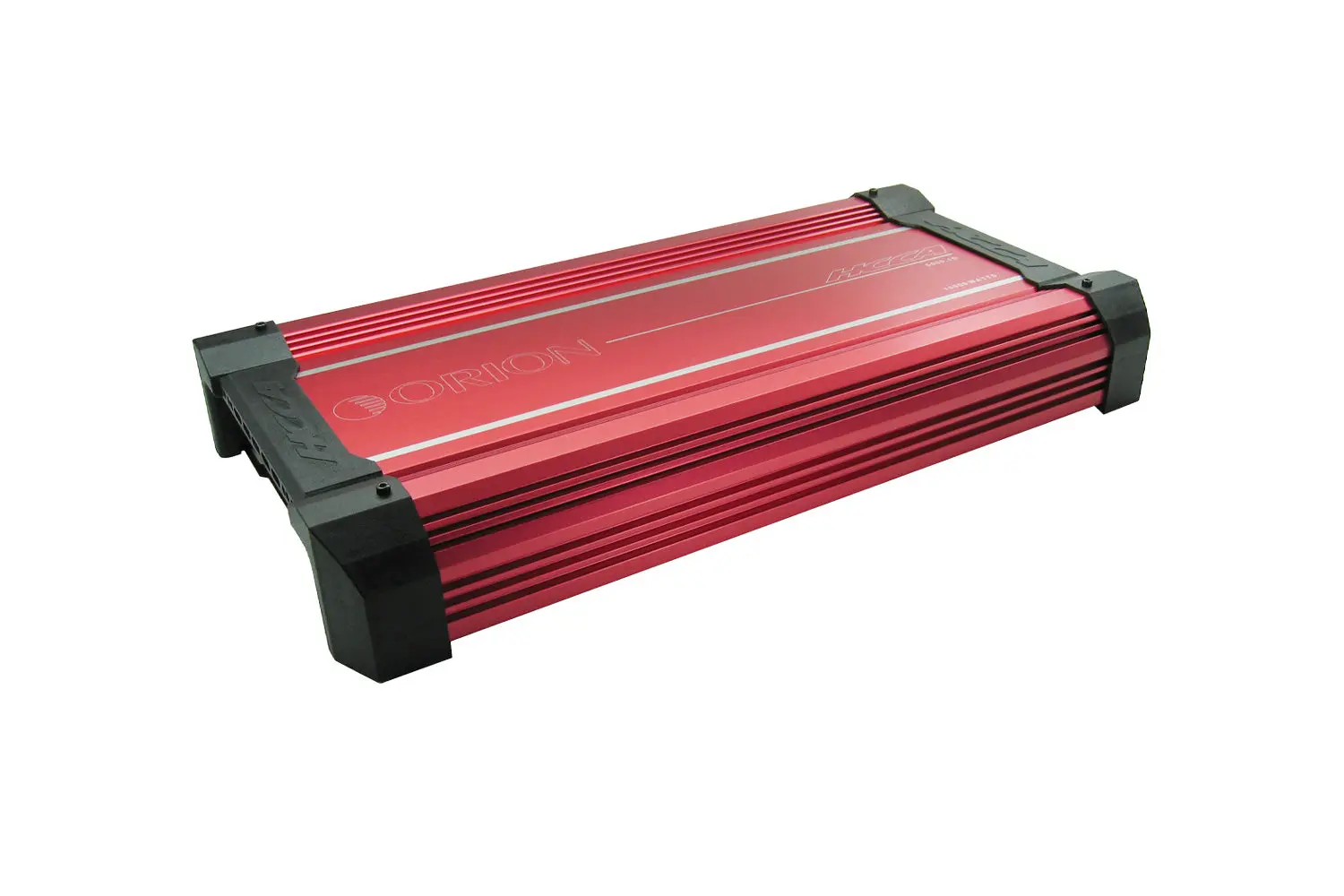

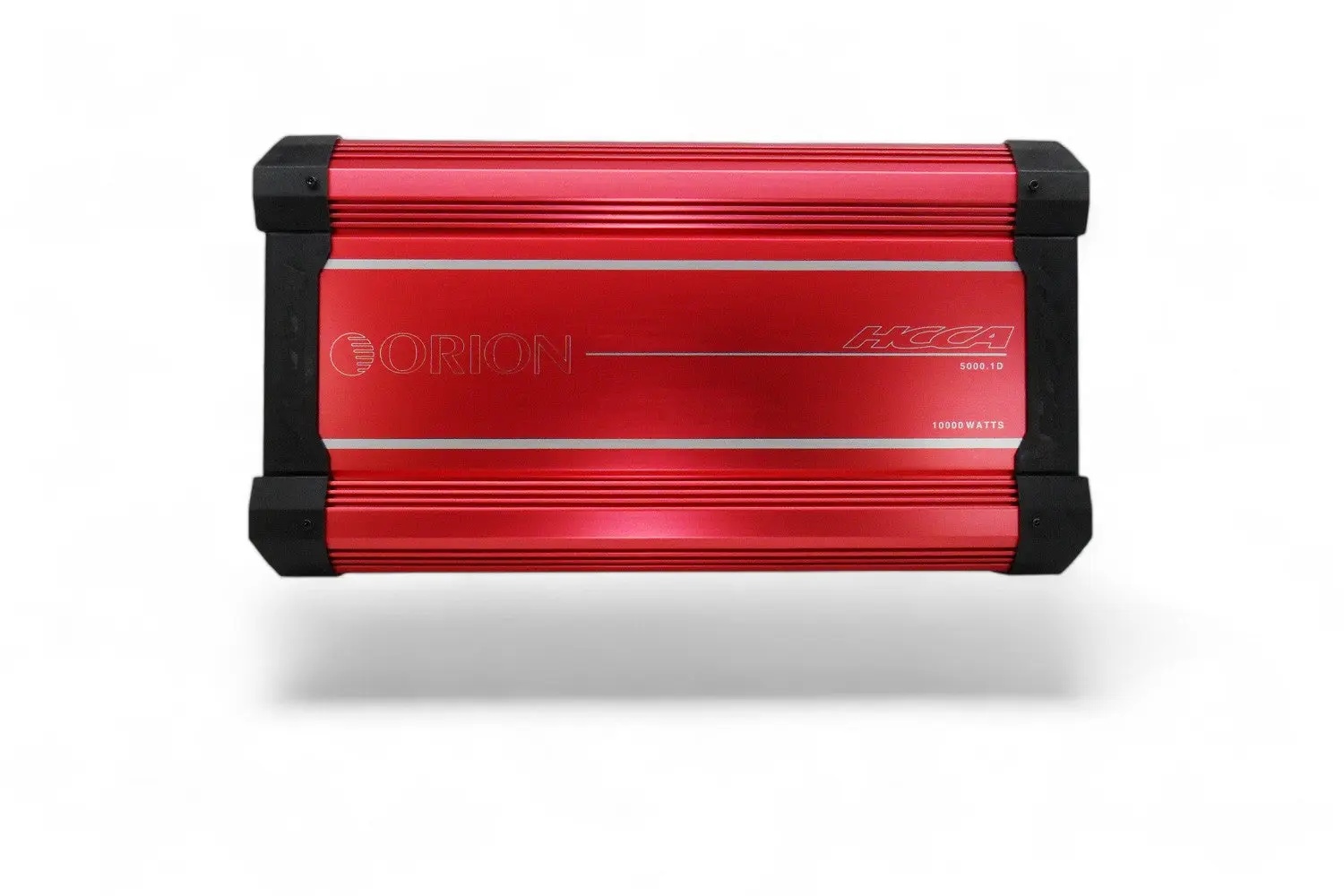

The HCCA5000.1DSPLX Class D Orion Hcca Amplifier​ is a powerhouse built for serious car audio enthusiasts and SPL (Sound Pressure Level) competitors. Delivering a jaw-dropping 5,000 watts RMS at 1 ohm, this amp pushes your subwoofers to their maximum potential, producing earth-shaking bass and complete control. Engineered with cutting-edge Class D technology, the HCCA5000.1DSPLX ensures maximum efficiency, allowing for high output without generating excessive heat.

• – RMS Power @ 4 Ohms @ 0.5% THD+N: 2300W
• – RMS Power @ 2 Ohms @ 0.5% THD+N: 3600W
• – RMS Power @ 1 Ohm @ 0.5% THD+N: 5000W
• – Linked with identical Amplifier
•   RMS Power @ 2 Ohms @ 0.5% THD+N: 11600W

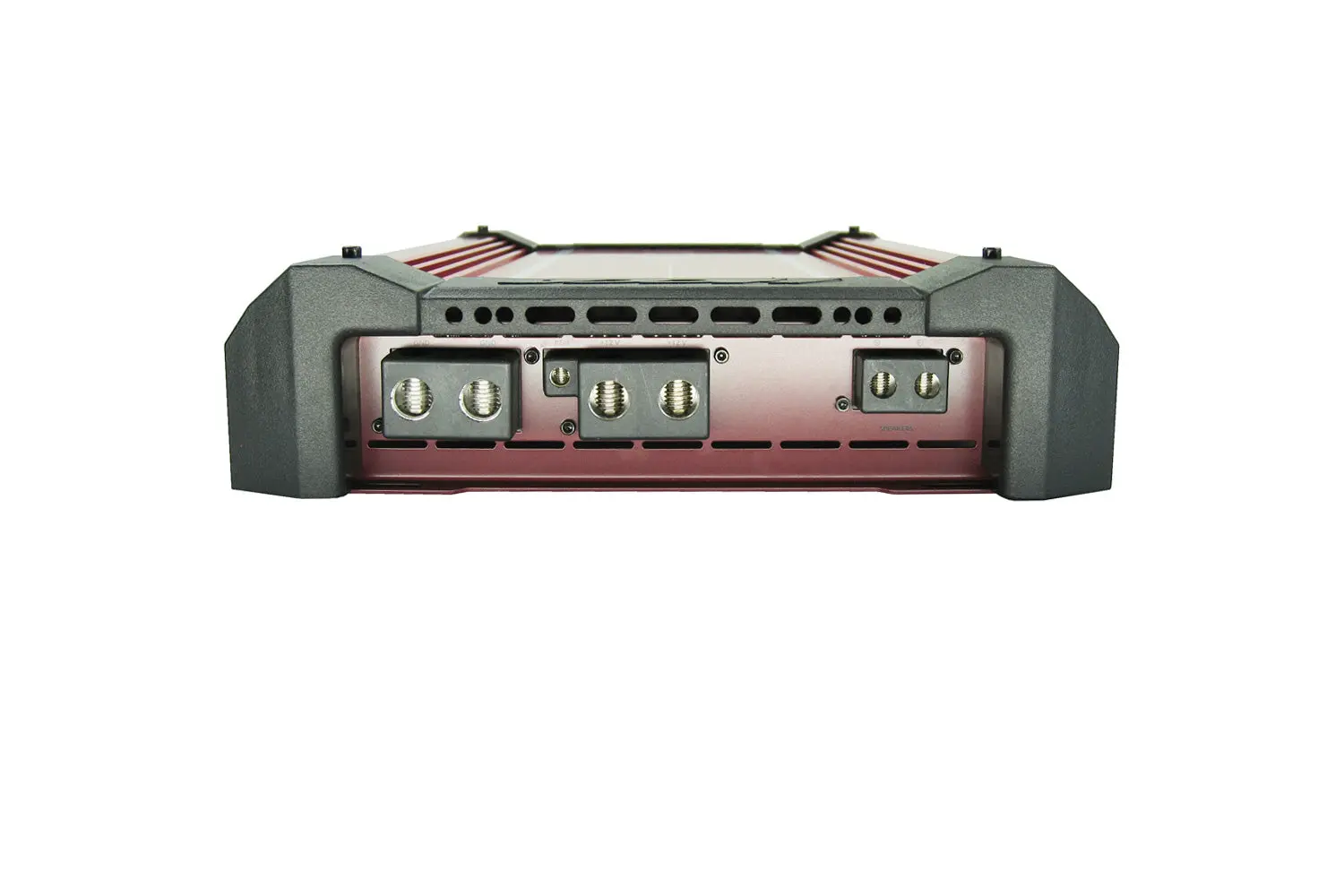

•  POWER TERMINAL MANAGEMENT
•   Positive Terminals: 3 x 0 AWG.
•   Negative Terminals: 3 x 0 AWG.
•   Remote Turn-ON Signal: 10 AWG.
•   Speaker Output Terminals: 4 AWG.

• – Frequency Response: 15Hz – 250Hz
• – Low Pass Crossover: 40Hz – 300Hz
• – Supply Voltage: 9 – 16V
• – Amplifier Efficiency: >88%
• – Damping Factor: 200dB
• – Signal to Noise Ratio: >90dB
• – T.H.D. & Noise: 0.5%
• – Input Impedance: 24K Ohms
• – Phase Shift: 0 – 180
• – Bass Boost: 0-18dB Variable
• – Subsonic Filter: 10 – 40Hz
• – Variable Input Level Control: 0.2V – 6.0V
• – Fuses: 500A recommended (not included)
• – Dimensions (L x W x H): 20.47″ x 11.89″ x 3.15″ (520x302x80mm)
