Description

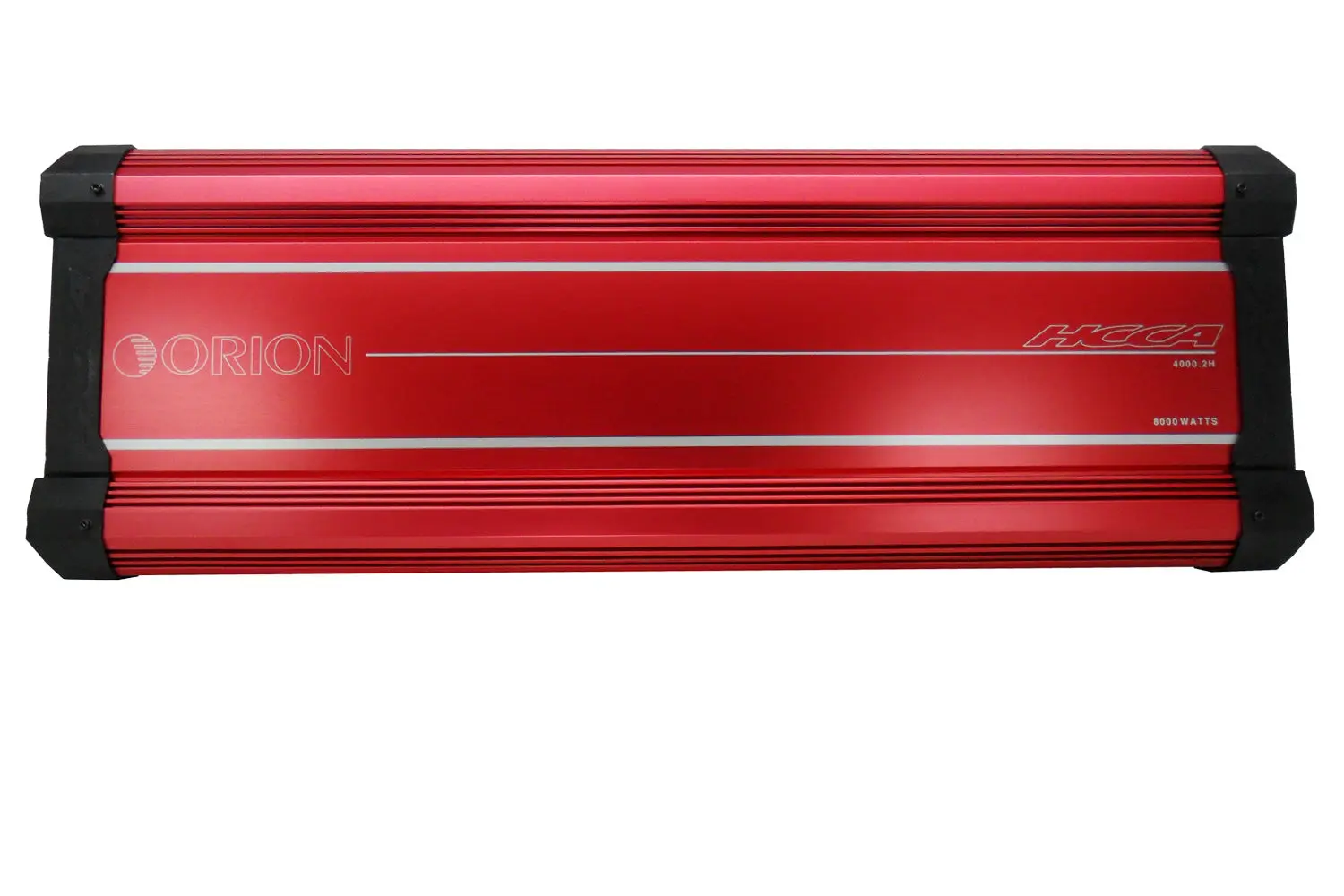

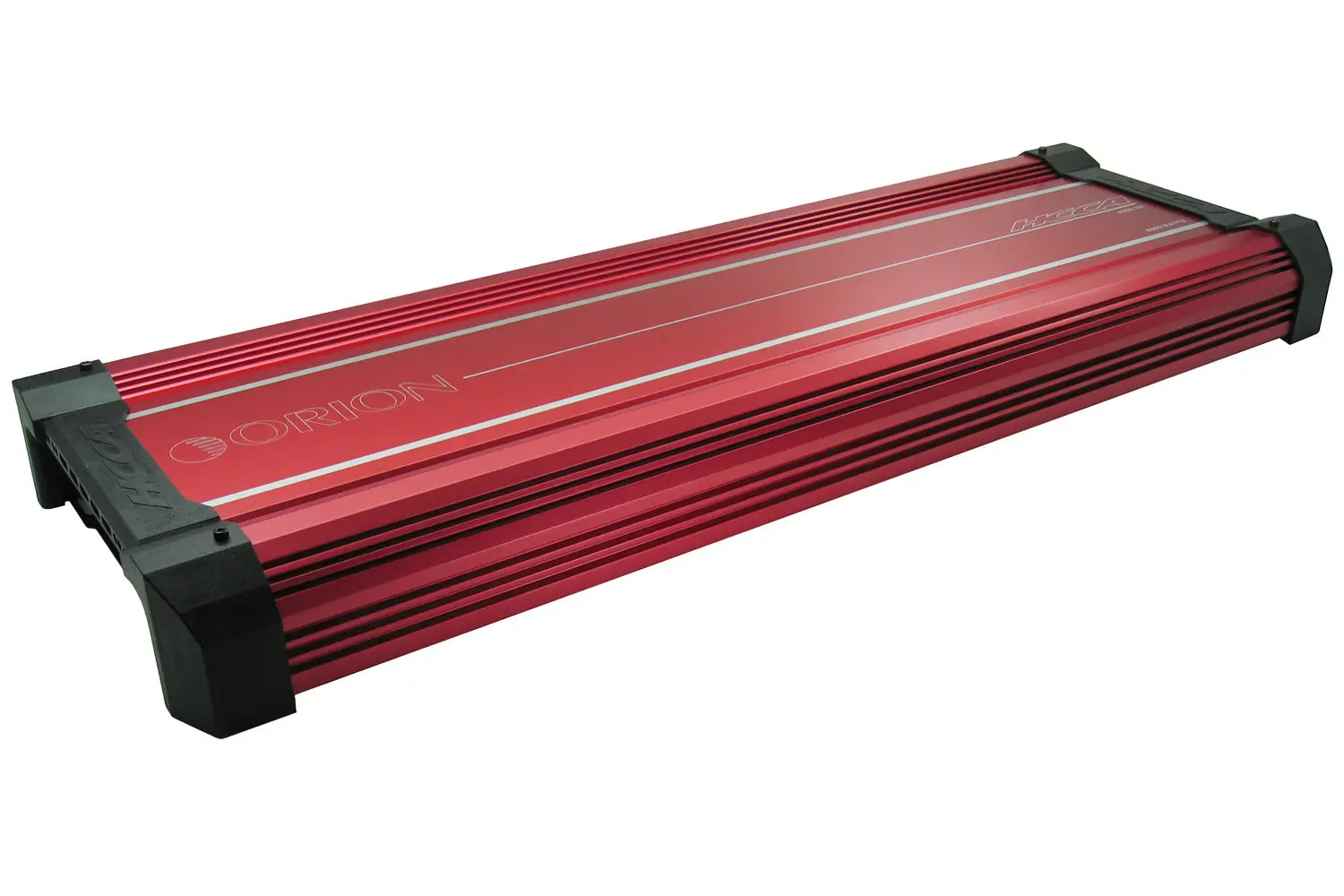

ORION HCCA4000.2H HCCA Series 4000W RMS Class-H 2 Channel Amplifier

Unleash Unprecedented Power and Precision: The ORION HCCA4000.2H HCCA Series 4000W RMS 2-Channel Class-H Amplifier exemplifies the pinnacle of audio engineering, delivering an exceptional blend of power, precision, and efficiency. Designed for discerning audiophiles, this amplifier redefines your audio experience, offering an unmatched level of sonic clarity and depth.

• – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 1200W
• – RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 2000W
• – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 4000W

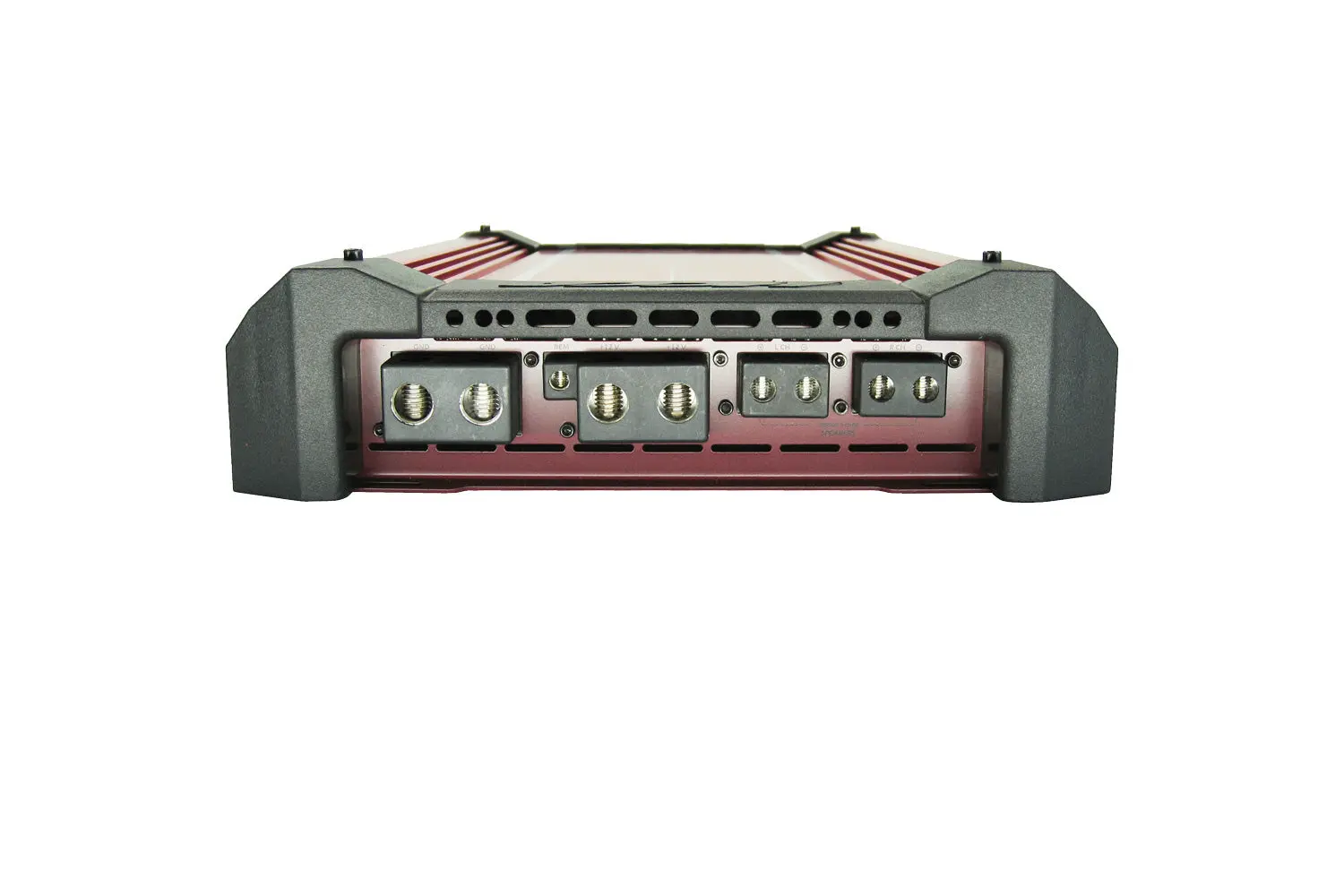

•  POWER TERMINAL MANAGEMENT
•   Positive Terminals: 1 x 0 AWG.
•   Negative Terminals: 1 x 4 AWG.
•   Remote Turn-ON Signal: 10 AWG.
•   Speaker Output Terminals: 10 AWG.

• – Frequency Response 10Hz to 35kHz +/- 1 dB
• – Linear Bandwidth 20Hz to 65kHz +/- 3 dB
• – High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
• – Low Pass Crossover Continuously variable (40-300Hz)
• – Phase shift control 0 to 180
• – Bass Boost 0-18dB variable
• – Distortion at Rated Power 0.005% THD+N
• – Damping Factor > 100
• – Input Sensitivity(RMS) 200mV to 6V
• – Supply Voltage Range 9 to 16V
• – Input Impedance 20K Ohms
• – Amplifier Efficiency > 67% into 2 Ohms load at max. power
• – SNR at rated output power and lowest impedance > 95dB
• – Fuses: 250A recommended (not included)
• – Dimensions (L x W x H): 27.95″ x 11.89″ x 3.15″ (710x302x80mm)
