Description

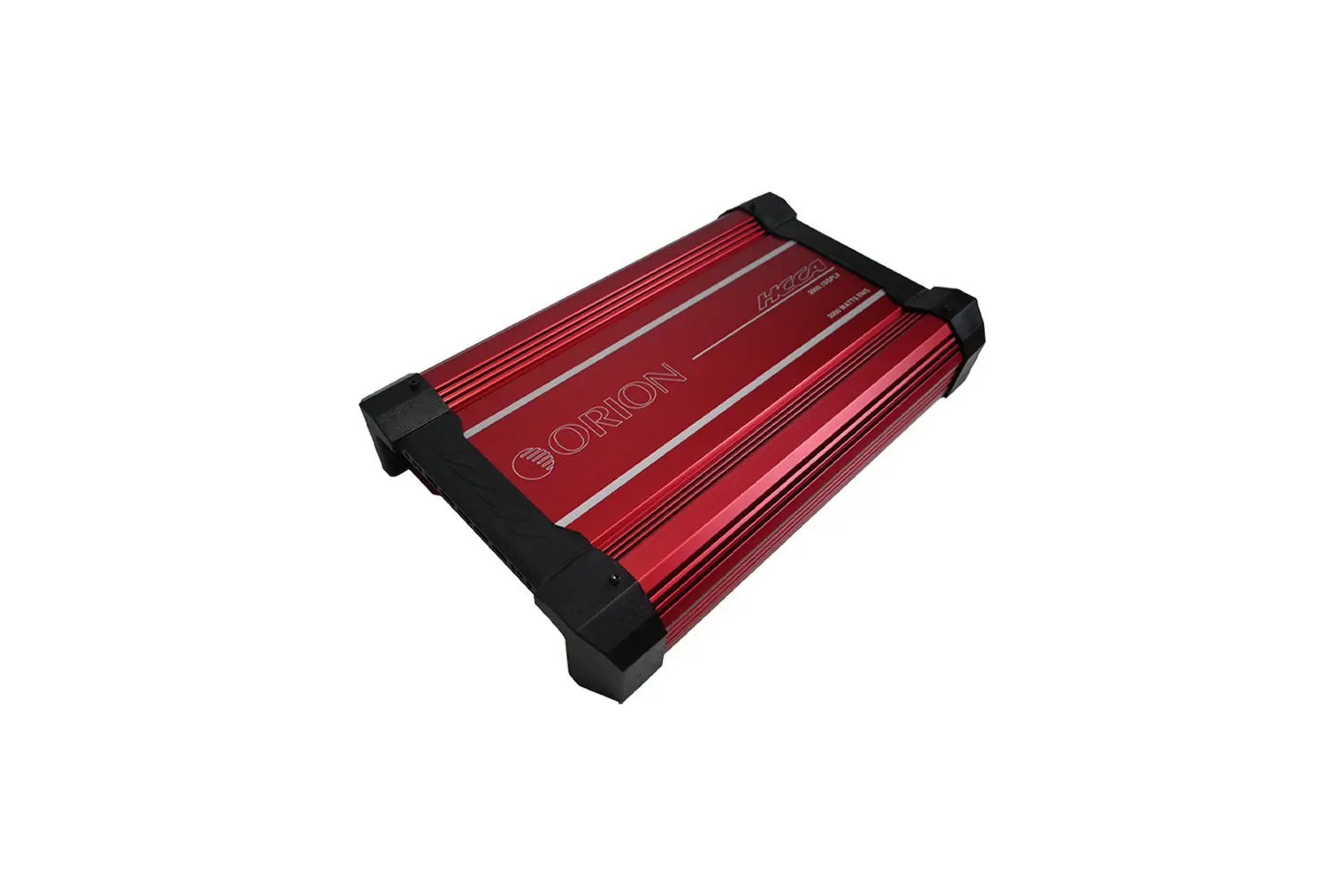

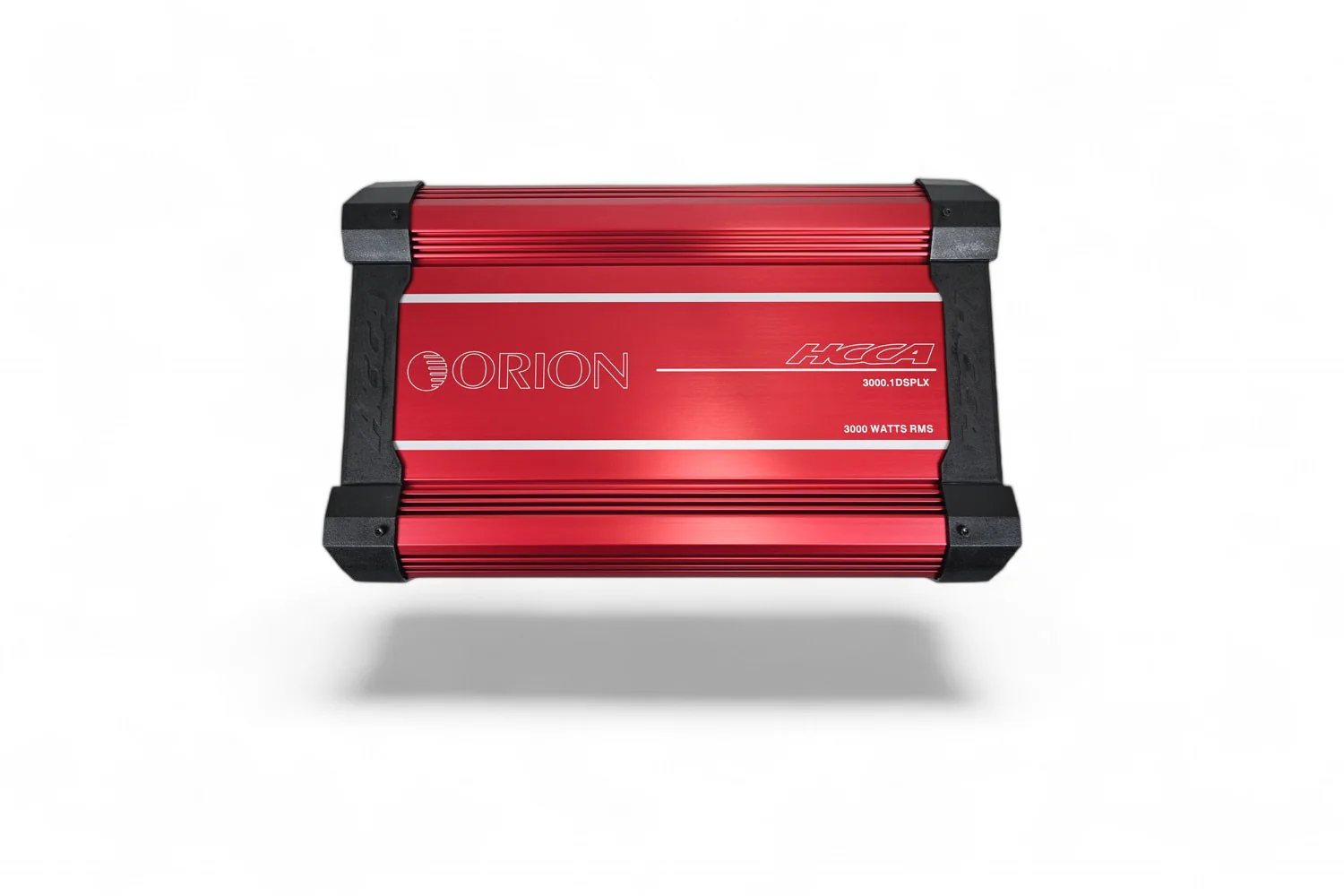

The HCCA3000.1DSPLX Class D Orion Hcca Amplifier​ is built for those who demand nothing less than competition-level performance. Delivering an astounding 3,000 watts RMS at 1 ohm, this amplifier is engineered to dominate SPL (Sound Pressure Level) competitions with ground-shaking bass and crisp, clear sound. Featuring the iconic HCCA Red design, it not only performs like a beast but looks the part too, adding a sleek, bold statement to your audio setup.

Powered by advanced Class D technology, the HCCA3000.1DSPLX runs cooler and more efficiently, pushing your subwoofers to their limits without sacrificing performance. Its robust construction and intelligent protection circuits guard against overheating and overload, ensuring long-lasting, reliable power for your most intense sessions.



• – RMS Power @ 4 Ohms @ 0.5% THD+N: 1350W
• – RMS Power @ 2 Ohms @ 0.5% THD+N: 2100W
• – RMS Power @ 1 Ohm @ 0.5% THD+N: 3000W
• – Linked with identical Amplifier
•   RMS Power @ 2 Ohms @ 0.5% THD+N: 6000W

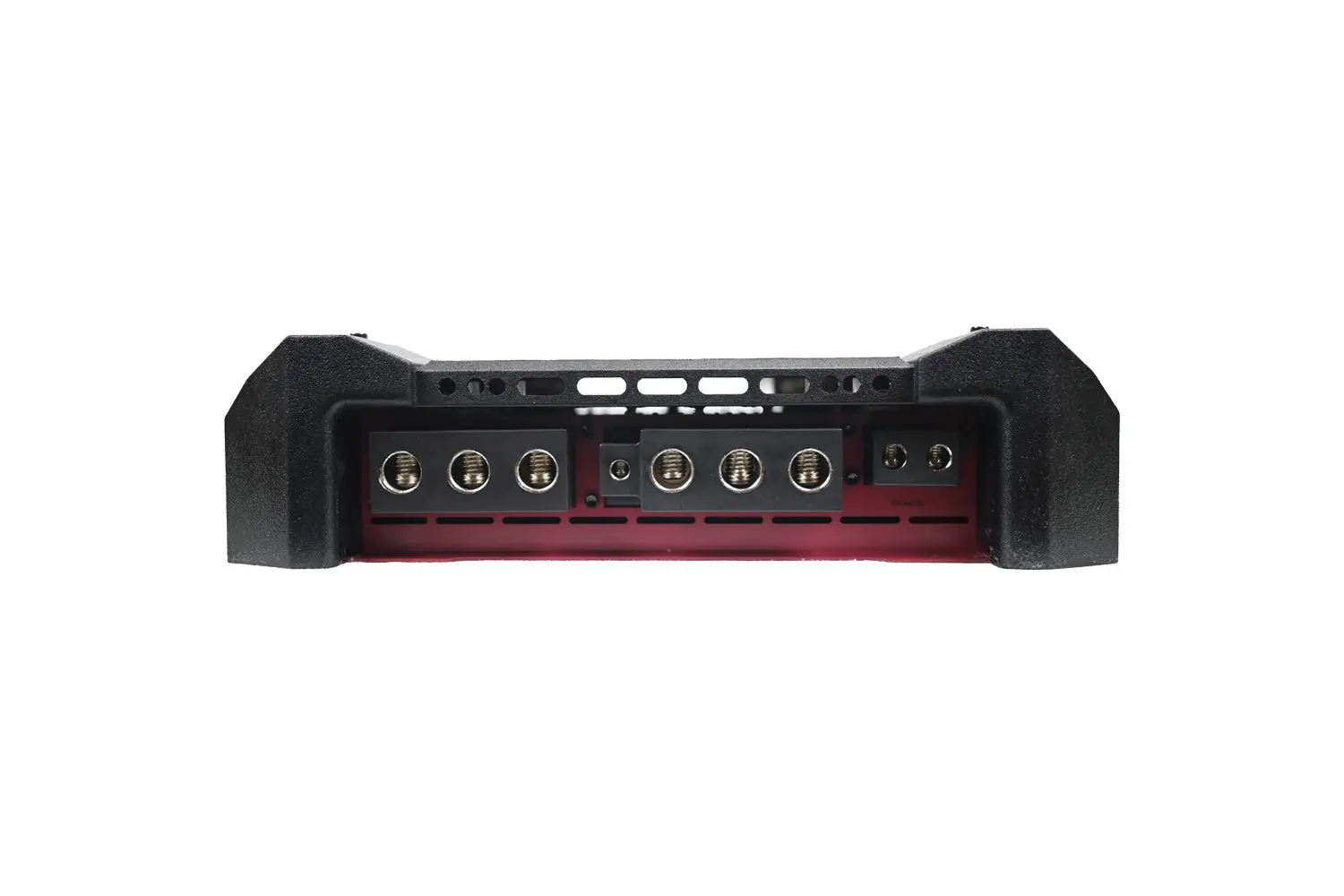

•  POWER TERMINAL MANAGEMENT
•   Positive Terminals: 3 x 0 AWG.
•   Negative Terminals: 3 x 0 AWG.
•   Remote Turn-ON Signal: 10 AWG.
•   Speaker Output Terminals: 4 AWG.

• – Frequency Response: 10Hz – 300Hz
• – Low Pass Crossover: 40Hz – 300Hz
• – Supply Voltage: 9 – 16V
• – Amplifier Efficiency: >88%
• – Damping Factor: >200dB
• – Signal to Noise Ratio: >90dB
• – T.H.D. & Noise: 0.5%
• – Input Impedance: 24K Ohms
• – Phase Shift: 0 – 180
• – Bass Boost: 0-18dB Variable
• – Subsonic Filter: 10 – 40Hz
• – Variable Input Level Control: 0.2V – 6.0V
• – Fuses: 350A recommended (not included)
• – Dimensions (L x W x H): 18.89″ x 11.89″ x 3.15″ (480x302x80mm)
