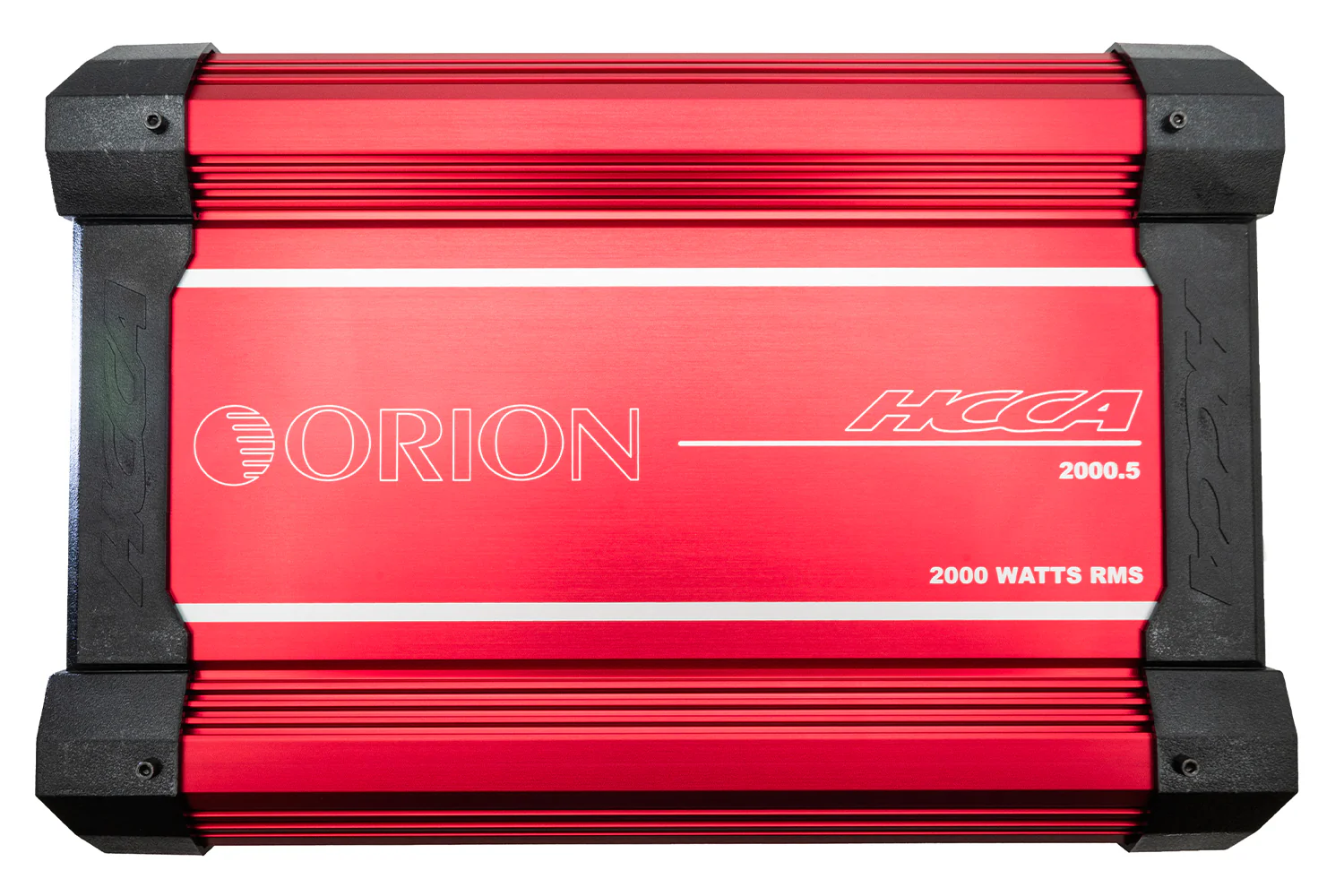

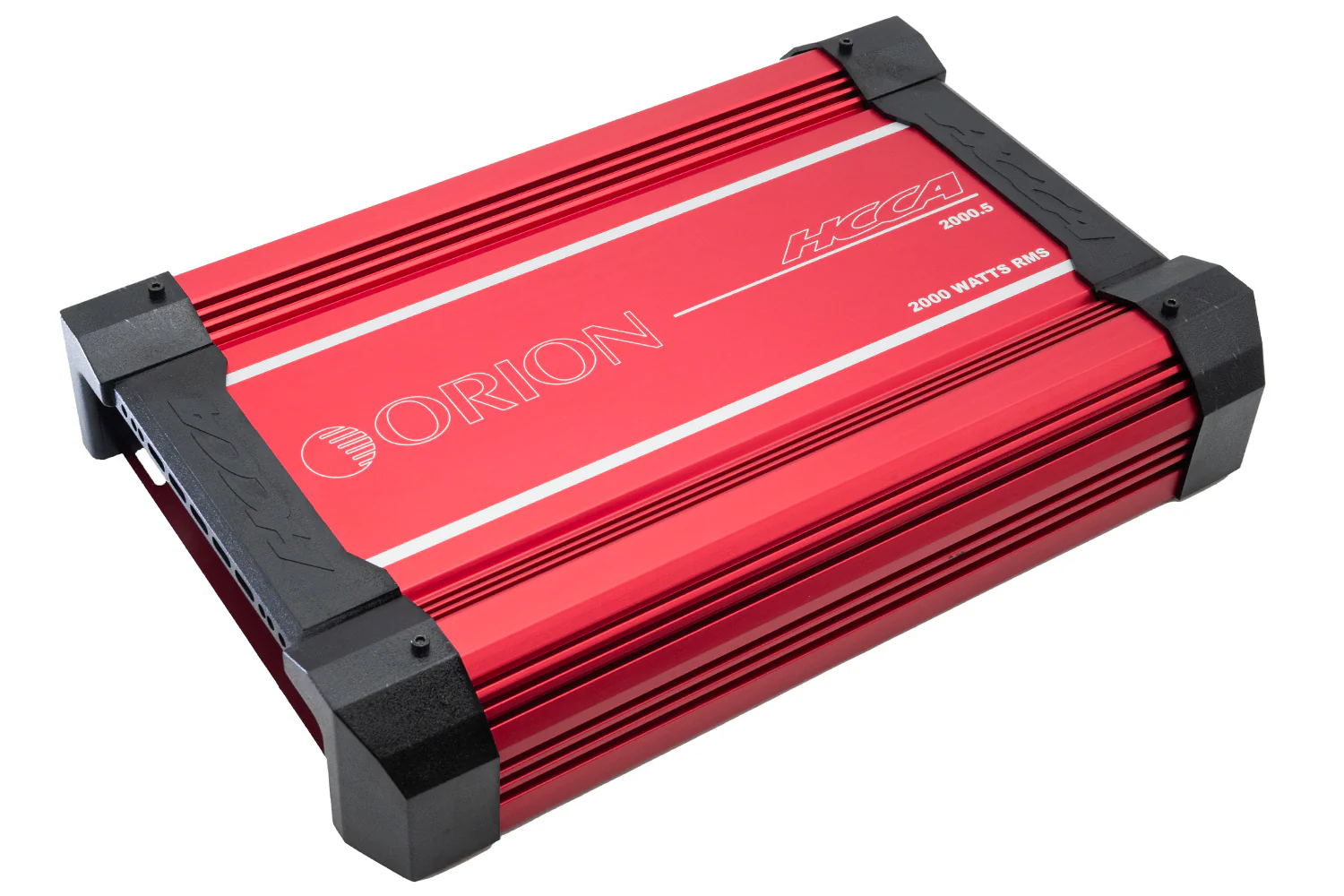

ORION HCCA2000.5 HCCA Series 2000W RMS 5-Channel Class-AB/D Amplifier For Car

Unleash Audiophile-Grade Power and Precision: The ORION HCCA2000.5 HCCA Series 2000W RMS 5-Channel Class-AB/D Amplifier sets a new standard for audio excellence, delivering a perfect amalgamation of power, precision, and efficiency. Engineered for discerning audiophiles, this amplifier redefines your audio experience, offering an unmatched level of sonic clarity and impact.

• RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 220W + 1 x 650W
• – RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 330W + 1 x 1000W
• – RMS WATTS @ 1 Ohms @ 0.5% THD+N: 4 x Not Supported + 1 x 650W
•  POWER TERMINAL MANAGEMENT
•   Positive Terminals: 1 x 0 AWG.
•   Negative Terminals: 1 x 4 AWG.
•   Remote Turn-ON Signal: 10 AWG.
•   Speaker Output Terminals: 10 AWG.

• Frequency Response 10Hz to 35kHz +/- 1 dB
• – Linear Bandwidth 20Hz to 65kHz +/- 3 dB
• – High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
• – Low Pass Crossover Continuously variable (40-300Hz)
• – Phase shift control 0 to 180
• – Bass Boost 0-18dB variable
• – Distortion at Rated Power 0.005% THD+N
• – Damping Factor > 100
• – Input Sensitivity(RMS) 200mV to 6V
• – Supply Voltage Range 9 to 16V
• – Input Impedance 20K Ohms
• – Amplifier Efficiency > 67% into 2 Ohms load at max. power
• – SNR at rated output power and lowest impedance > 95dB
• – Fuses: 200A recommended (not included)
• – Dimensions (L x W x H): 17.5″ x 12″ x 3.5″ (444.5×304.8×88.9mm)
