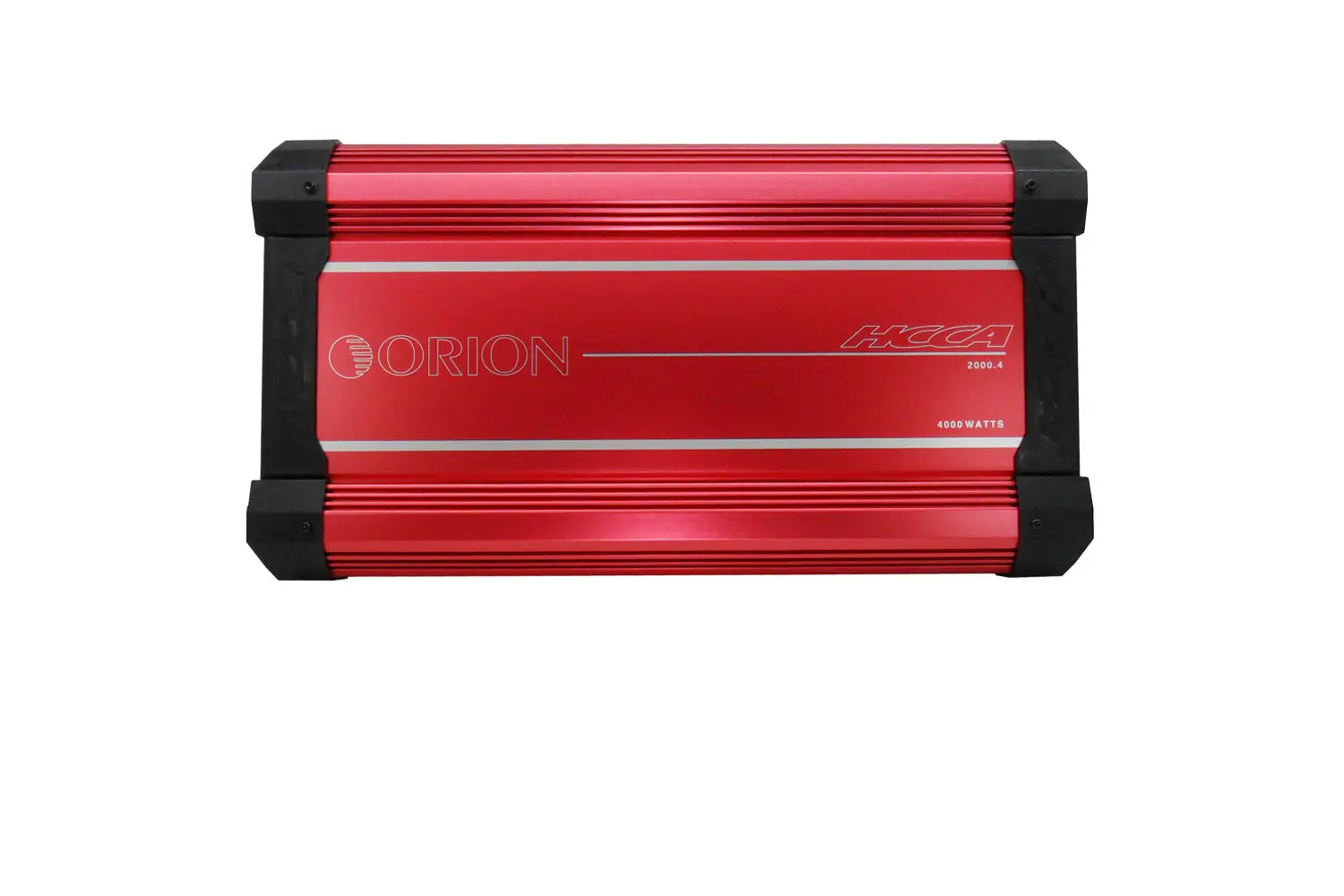

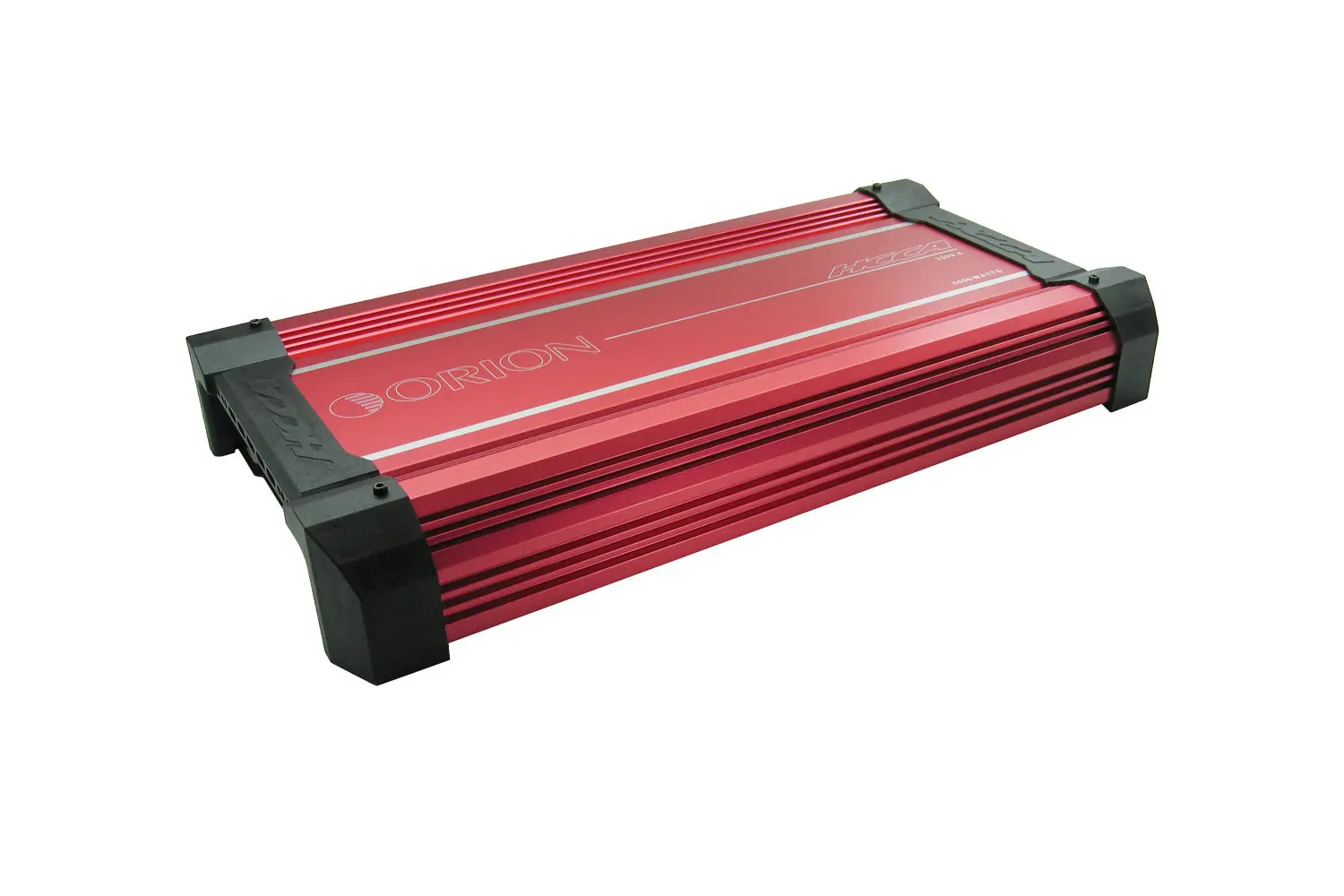

ORION HCCA2000.4 HCCA Series 2000W RMS Class-AB Car Amplifier 4 Channel
Experience Unrivaled Audio Power and Precision: The ORION HCCA2000.4 HCCA Series 2000W RMS 4-Channel Class-AB Amplifier sets a new standard for audio excellence, delivering a perfect blend of power, precision, and efficiency. Crafted for audiophiles who demand the ultimate in sound quality, this amplifier elevates your audio experience to extraordinary heights.
- – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 300W
- – RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 500W
- – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 1000W

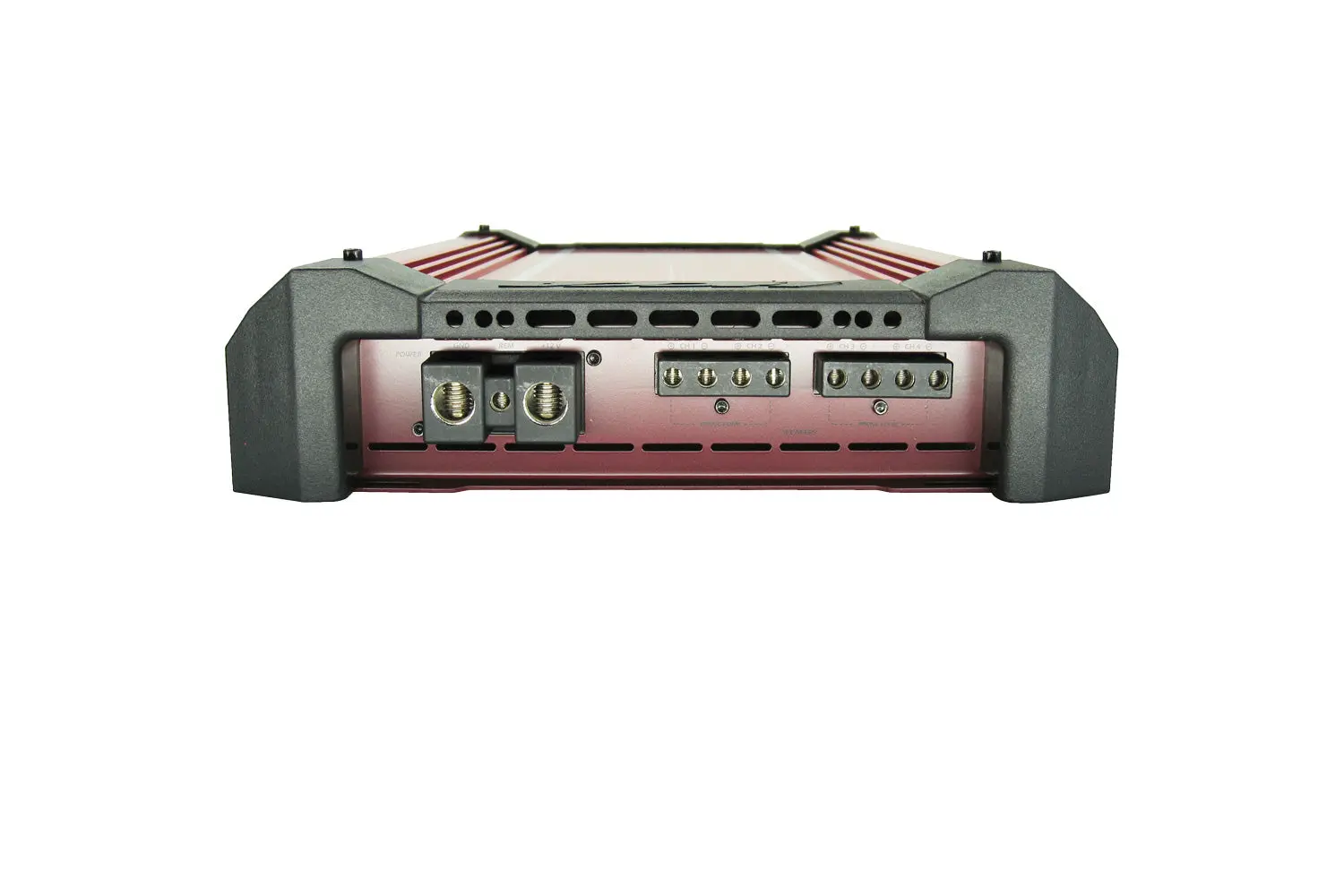

- POWER TERMINAL MANAGEMENT
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
- – Frequency Response 10Hz to 35kHz +/- 1 dB
- – Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- – High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- – Low Pass Crossover Continuously variable (40-300Hz)
- – Phase shift control 0 to 180
- – Bass Boost 0-18dB variable
- – Distortion at Rated Power 0.005% THD+N
- – Damping Factor > 100
- – Input Sensitivity(RMS) 200mV to 6V
- – Supply Voltage Range 9 to 16V
- – Input Impedance 20K Ohms
- – Amplifier Efficiency > 67% into 2 Ohms load at max. power
- – SNR at rated output power and lowest impedance > 95dB
- – Fuses: 200A recommended (not included)
- – Dimensions (L x W x H): 20.47″ x 11.89″ x 3.15″ (520x302x80mm)
