Description

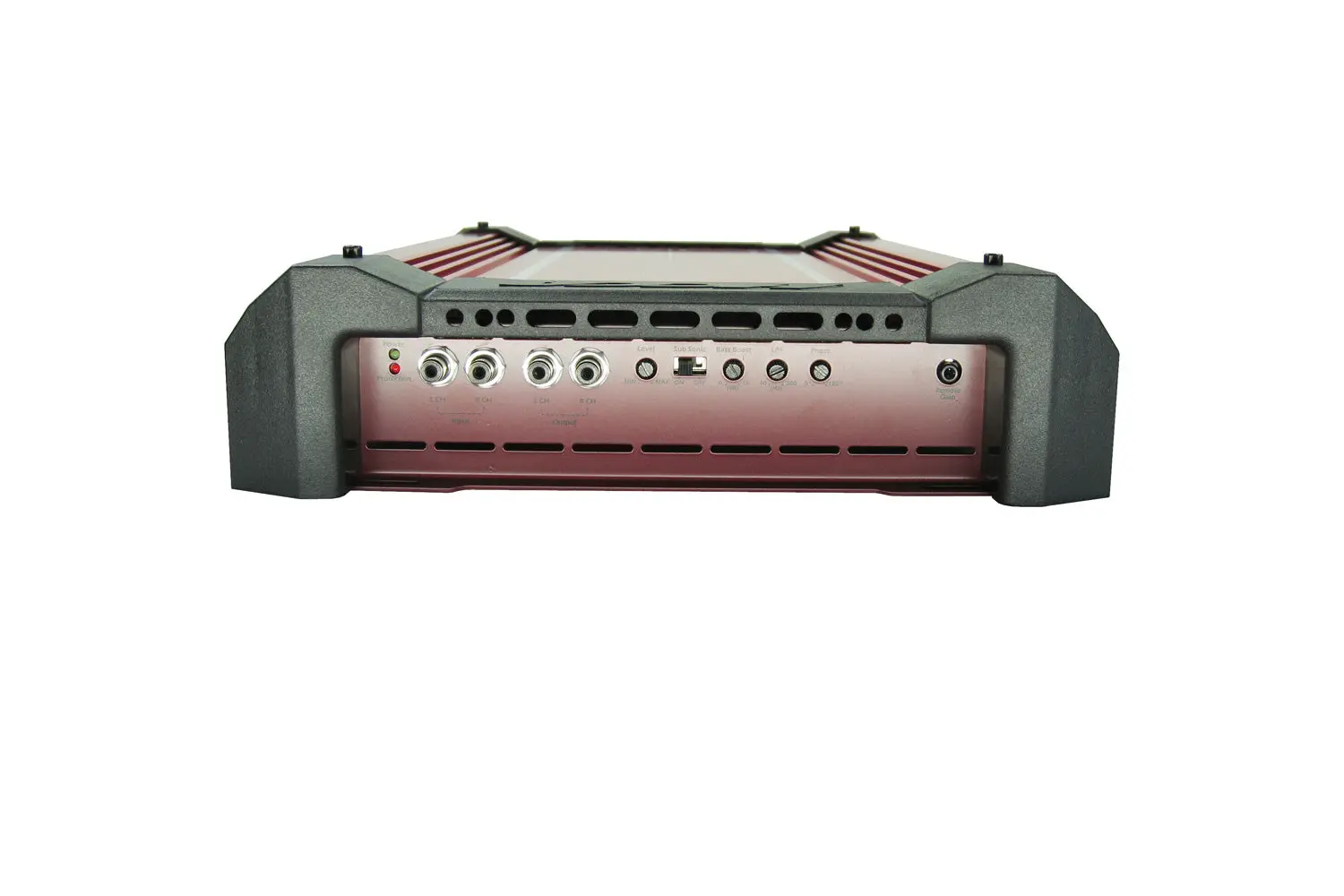

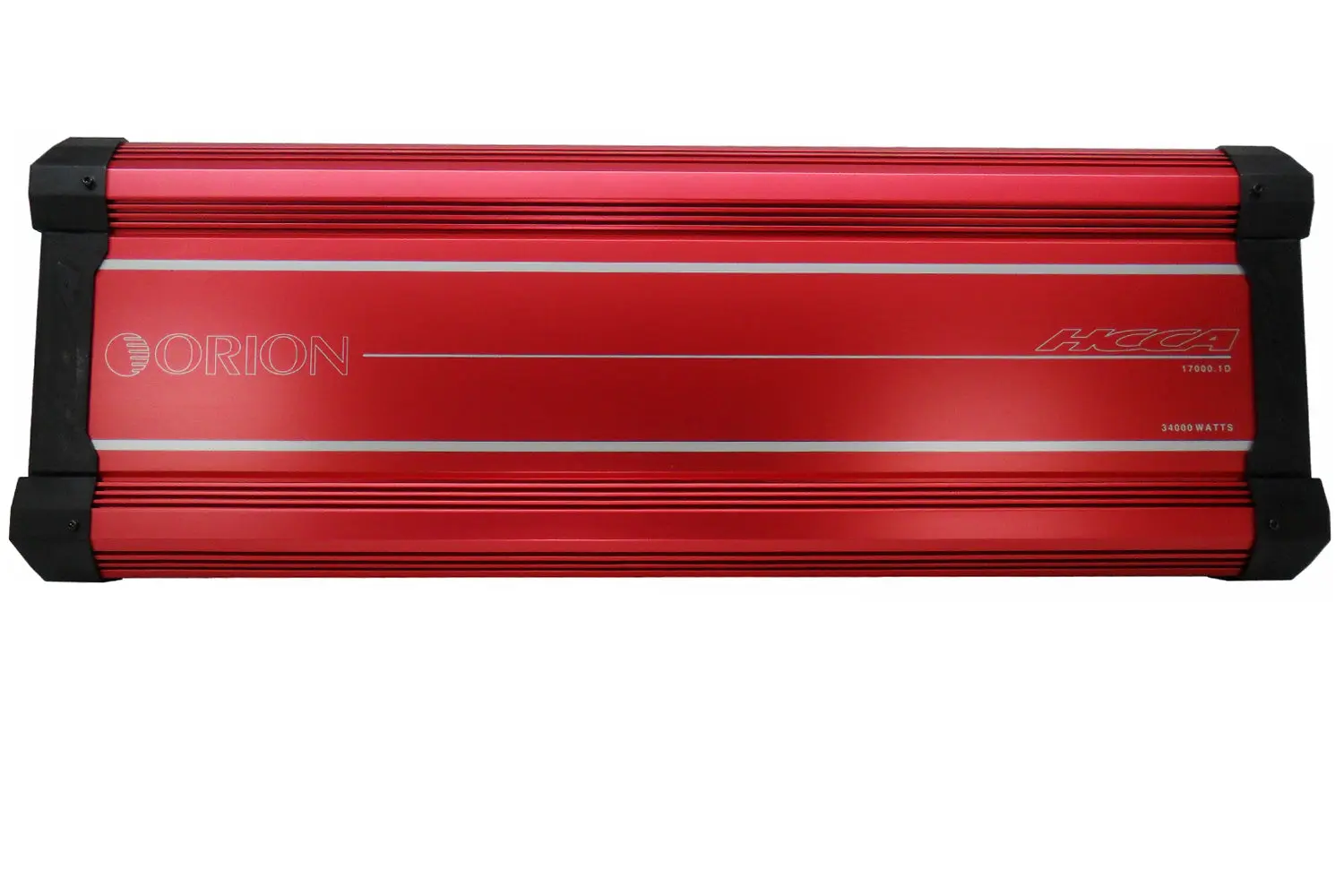

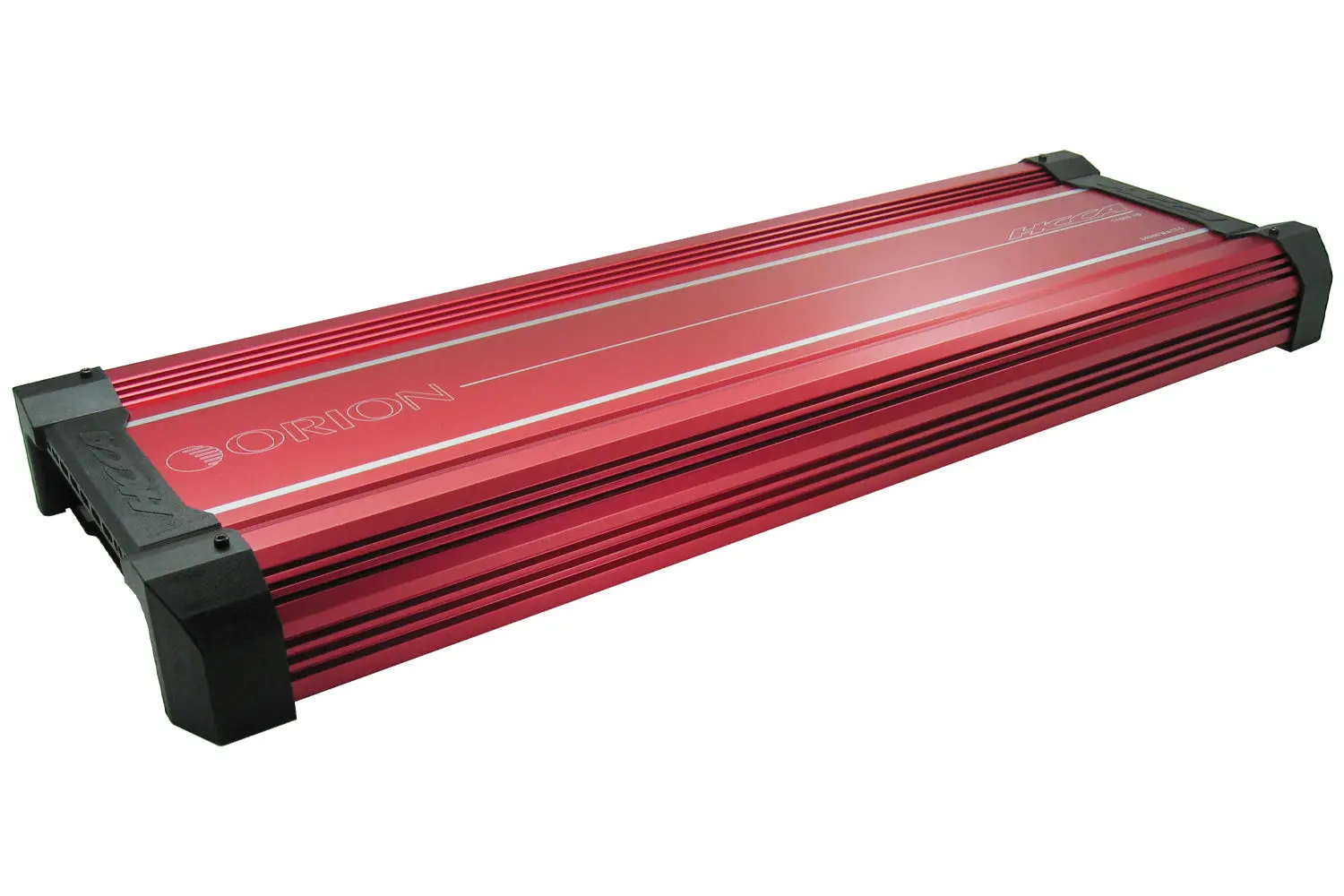

ORION HCCA17000.1DSPLX 17000W RMS 1-Channel Class-D Orion HCCA Amplifier

Unleash Unprecedented Power and Sonic Excellence: ORION HCCA17000.1DSPLX HCCA Series 17000W RMS 1-Channel Class-D Amplifier redefines the limits of power and sonic excellence in car audio. Designed for audio purists and enthusiasts who demand the pinnacle of performance, this amplifier elevates your audio experience to extraordinary heights.

• – RMS Power @ 4 Ohms @ 0.5% THD+N: 6000W
• – RMS Power @ 2 Ohms @ 0.5% THD+N: 10500W
• – RMS Power @ 1 Ohm @ 0.5% THD+N: 17000W
• – Linked with identical Amplifier
•   RMS Power @ 2 Ohms @ 0.5% THD+N: 35000W

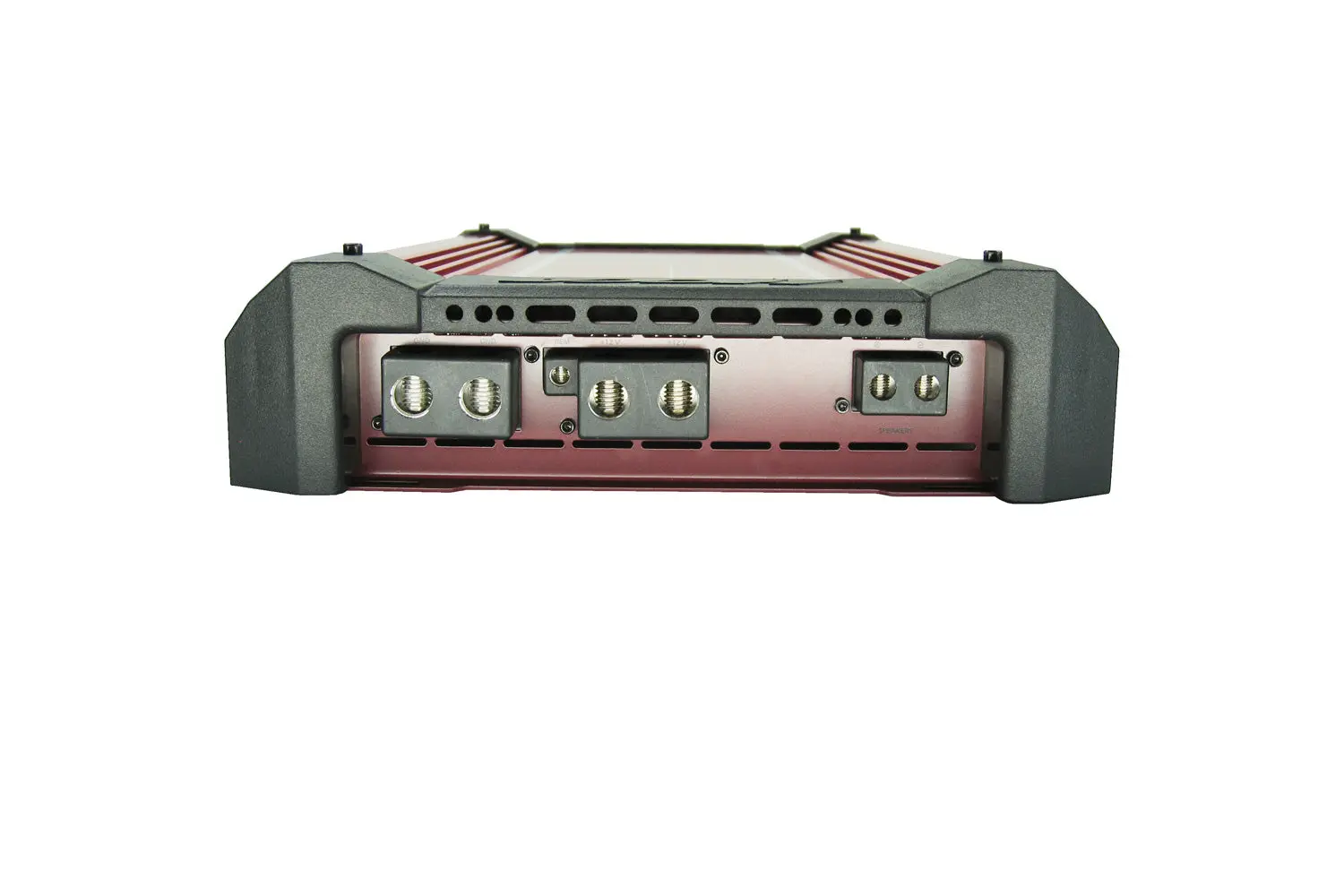

•  POWER TERMINAL MANAGEMENT
•   Positive Terminals: 3 x 0 AWG.
•   Negative Terminals: 3 x 0 AWG.
•   Remote Turn-ON Signal: 10 AWG.
•   Speaker Output Terminals: 4 AWG.

• – Frequency Response: 15Hz – 250Hz
• – Low Pass Crossover: 40Hz – 300Hz
• – Supply Voltage: 9 – 16V
• – Amplifier Efficiency: >88%
• – Damping Factor: 200dB
• – Signal to Noise Ratio: >90dB
• – T.H.D. & Noise: 0.5%
• – Input Impedance: 24K Ohms
• – Phase Shift: 0 – 180
• – Bass Boost: 0-18dB Variable
• – Subsonic Filter: 10 – 40Hz
• – Variable Input Level Control: 0.2V – 6.0V
• – Fuses: 1500A recommended (not included)
• – Dimensions (L x W x H): 37.79″ x 11.89″ x 3.15″ (960x302x80mm)
