Description

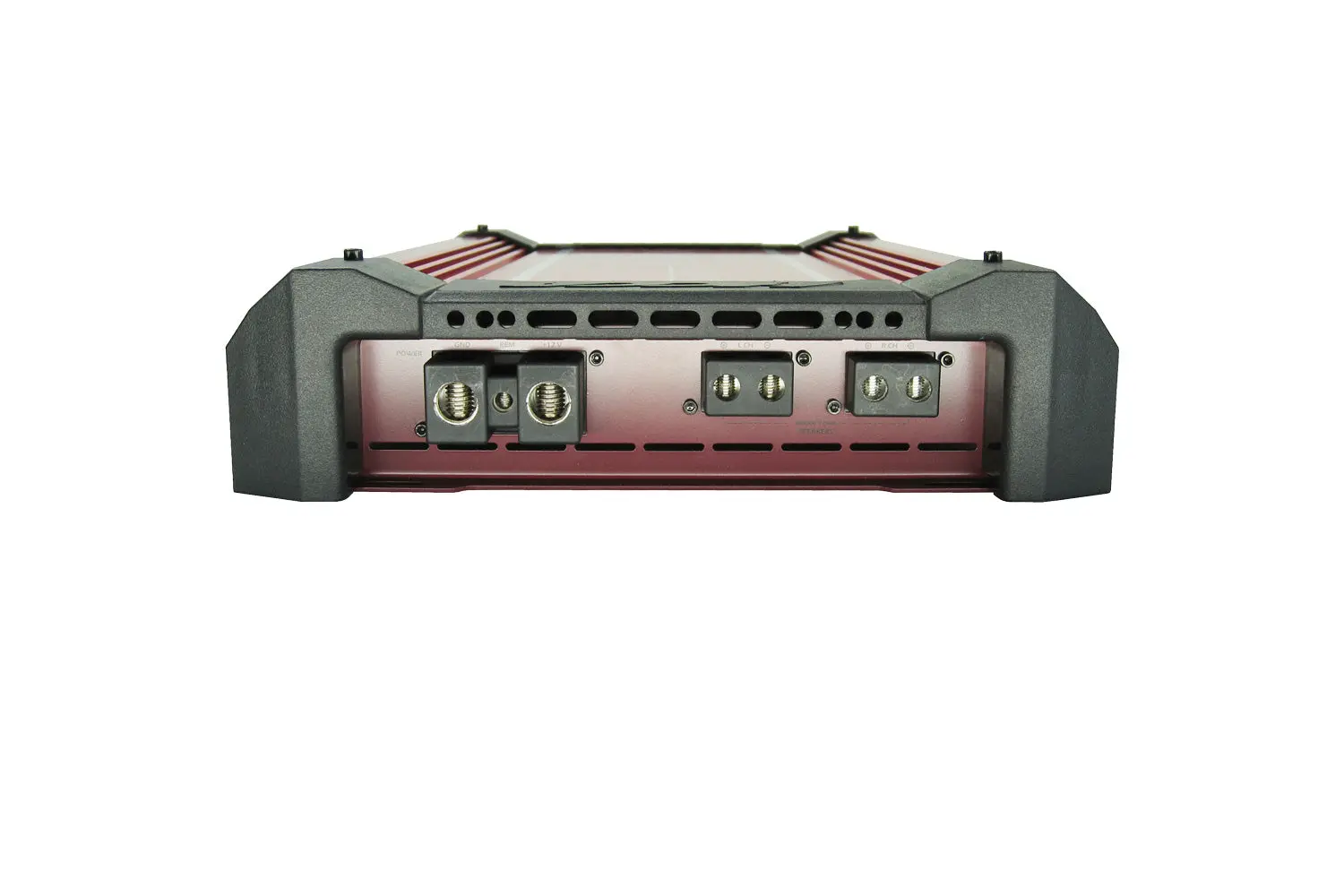

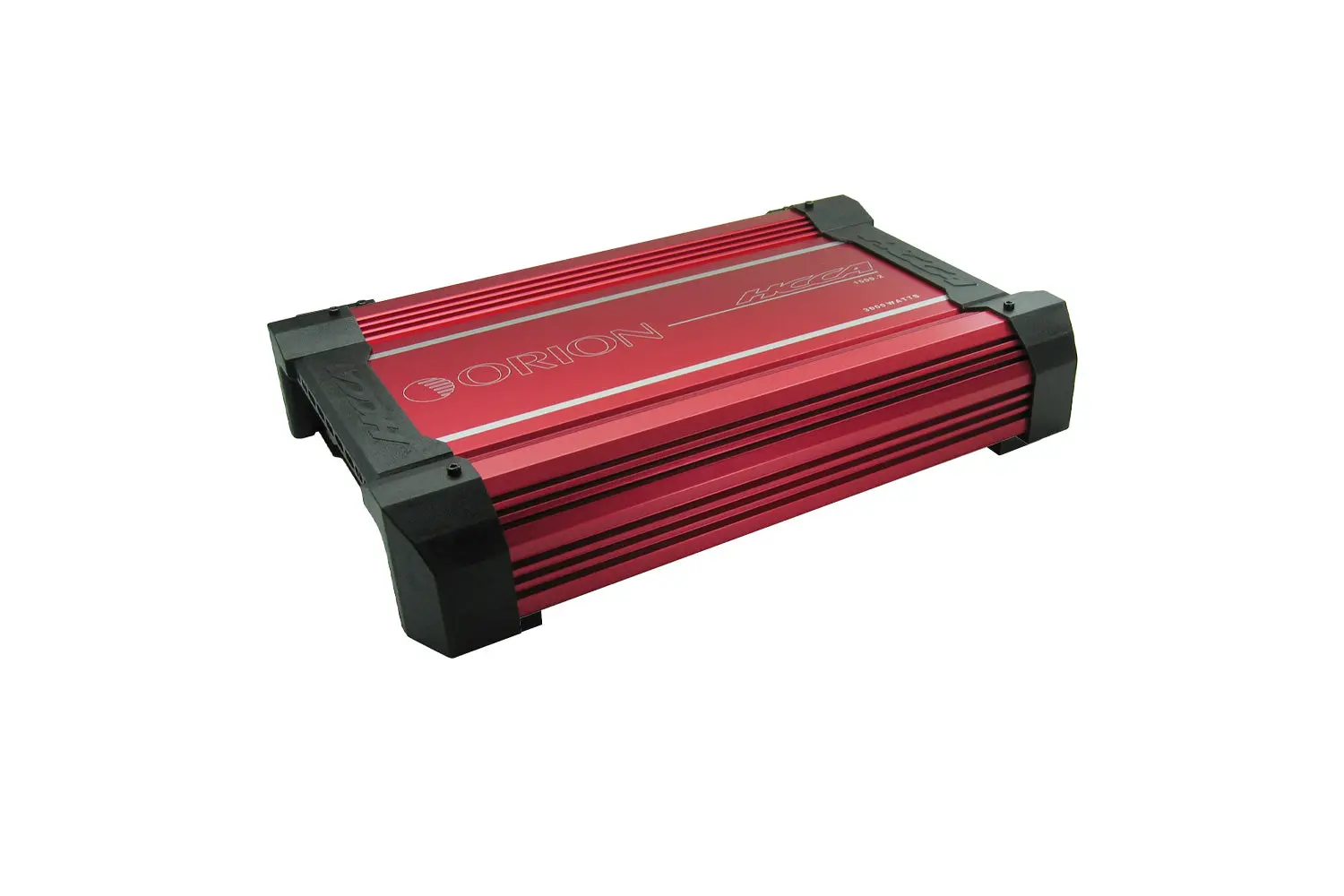

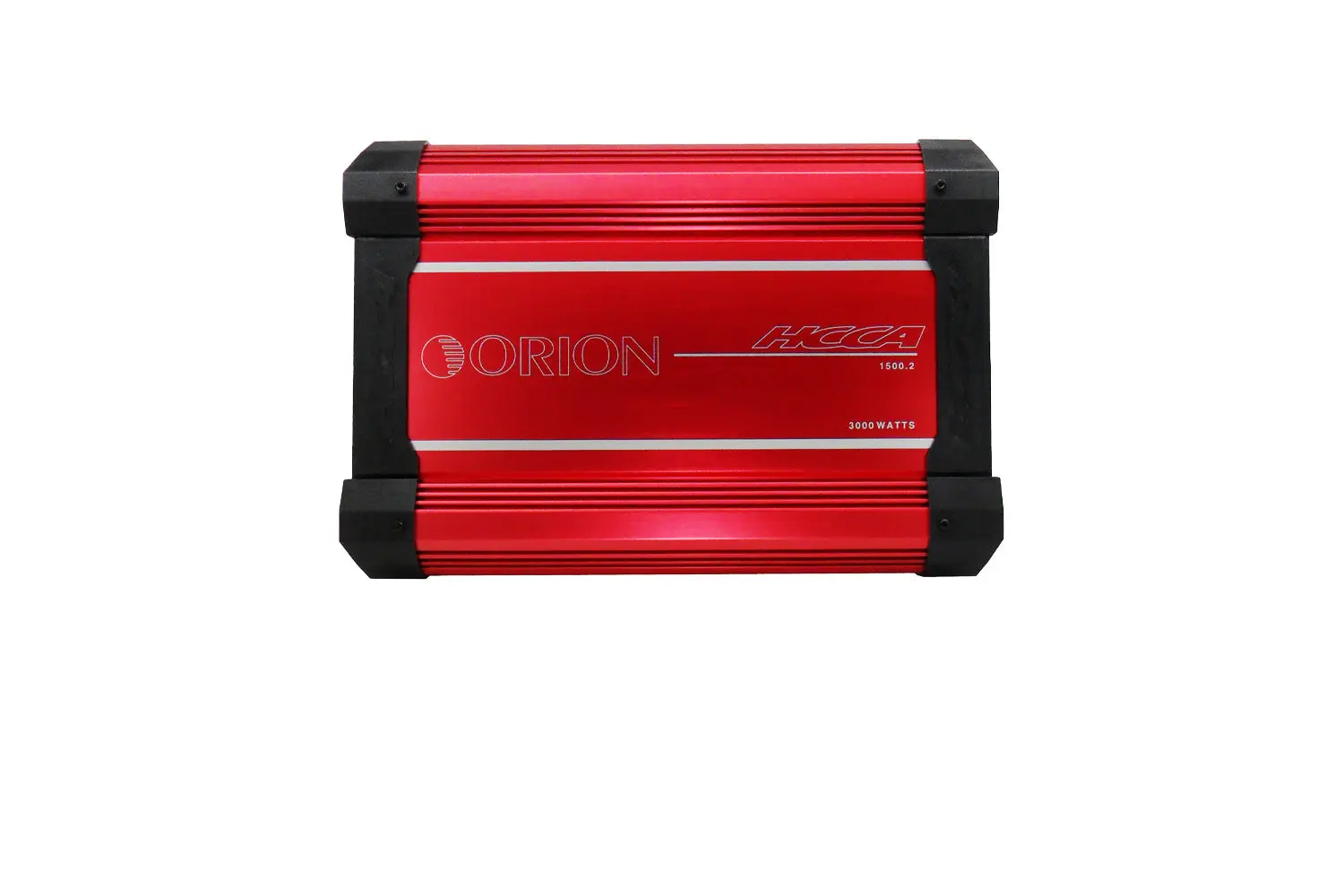

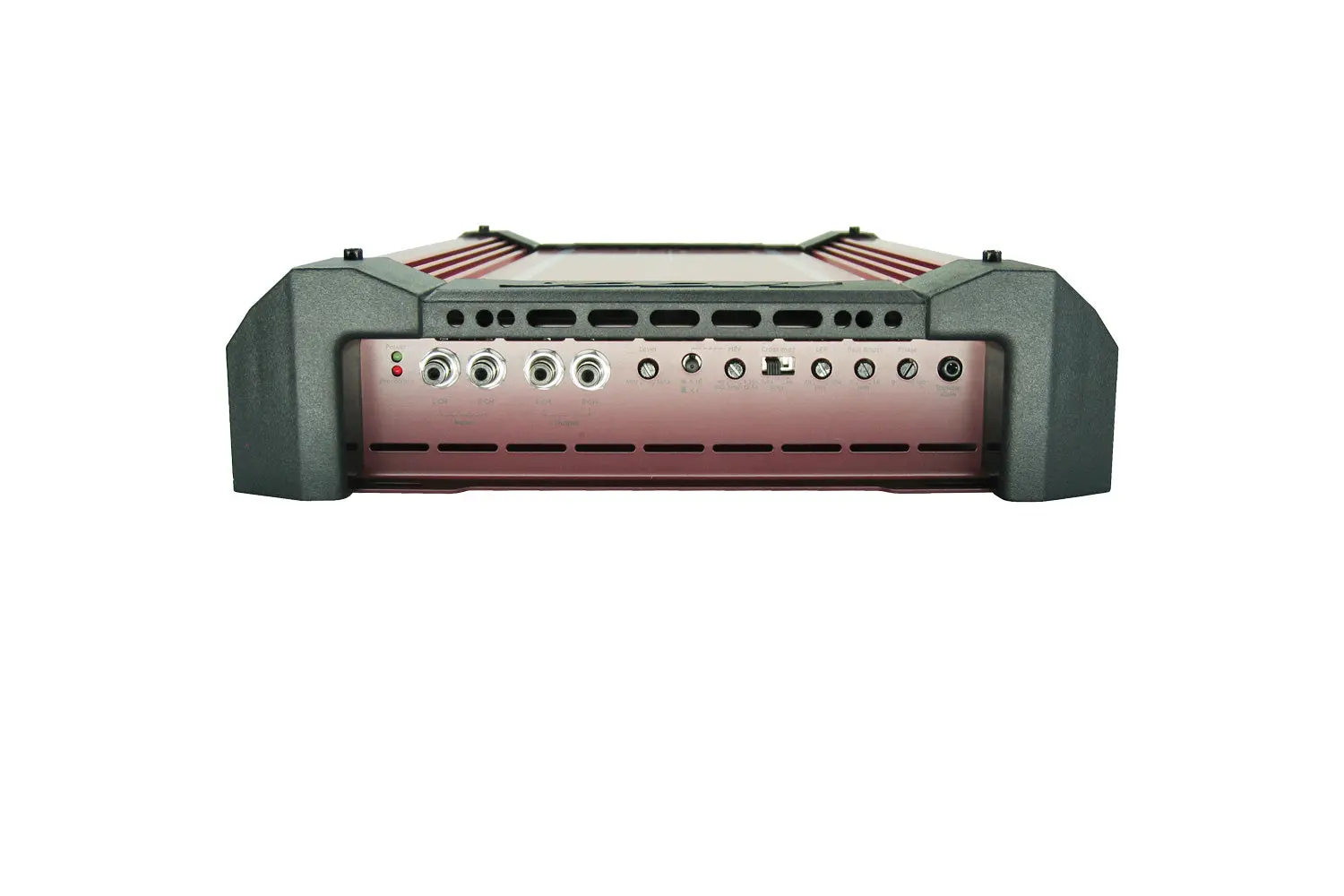

ORION HCCA1500.2 HCCA Series 1500W RMS Class-AB 2 Channel Amplifier

Unleash Audio Excellence and Power: The ORION HCCA1500.2 HCCA Series 1500W RMS 2-Channel Class-AB Amplifier embodies a perfect harmony of audio excellence and raw power. Designed for audiophiles who demand uncompromising performance, this amplifier takes your audio experience to a whole new level, delivering remarkable clarity, precision, and dynamic sound.

• – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W
• – RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 750W
• – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 1500W
•  POWER TERMINAL MANAGEMENT
•   Positive Terminals: 1 x 0 AWG.
•   Negative Terminals: 1 x 4 AWG.
•   Remote Turn-ON Signal: 10 AWG.
•   Speaker Output Terminals: 10 AWG.

• – Frequency Response 10Hz to 35kHz +/- 1 dB
• – Linear Bandwidth 20Hz to 65kHz +/- 3 dB
• – High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
• – Low Pass Crossover Continuously variable (40-300Hz)
• – Phase shift control 0 to 180
• – Bass Boost 0-18dB variable
• – Distortion at Rated Power 0.005% THD+N
• – Damping Factor > 100
• – Input Sensitivity(RMS) 200mV to 6V
• – Supply Voltage Range 9 to 16V
• – Input Impedance 20K Ohms
• – Amplifier Efficiency > 67% into 2 Ohms load at max. power
• – SNR at rated output power and lowest impedance > 95dB
• – Fuses: 150A recommended (not included)
• – Dimensions (L x W x H): 15.75″ x 11.89″ x 3.15″ (400x302x80mm)
