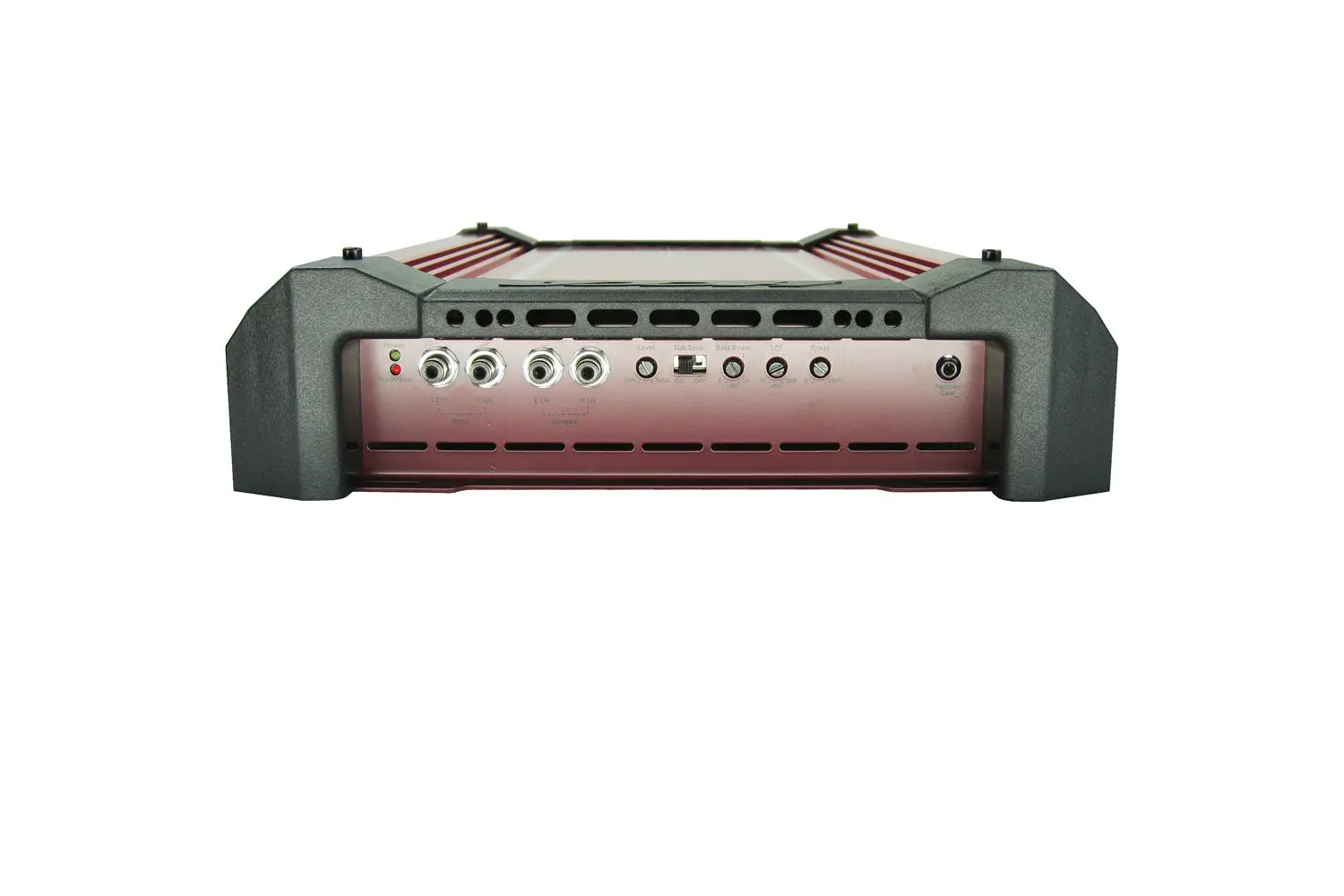

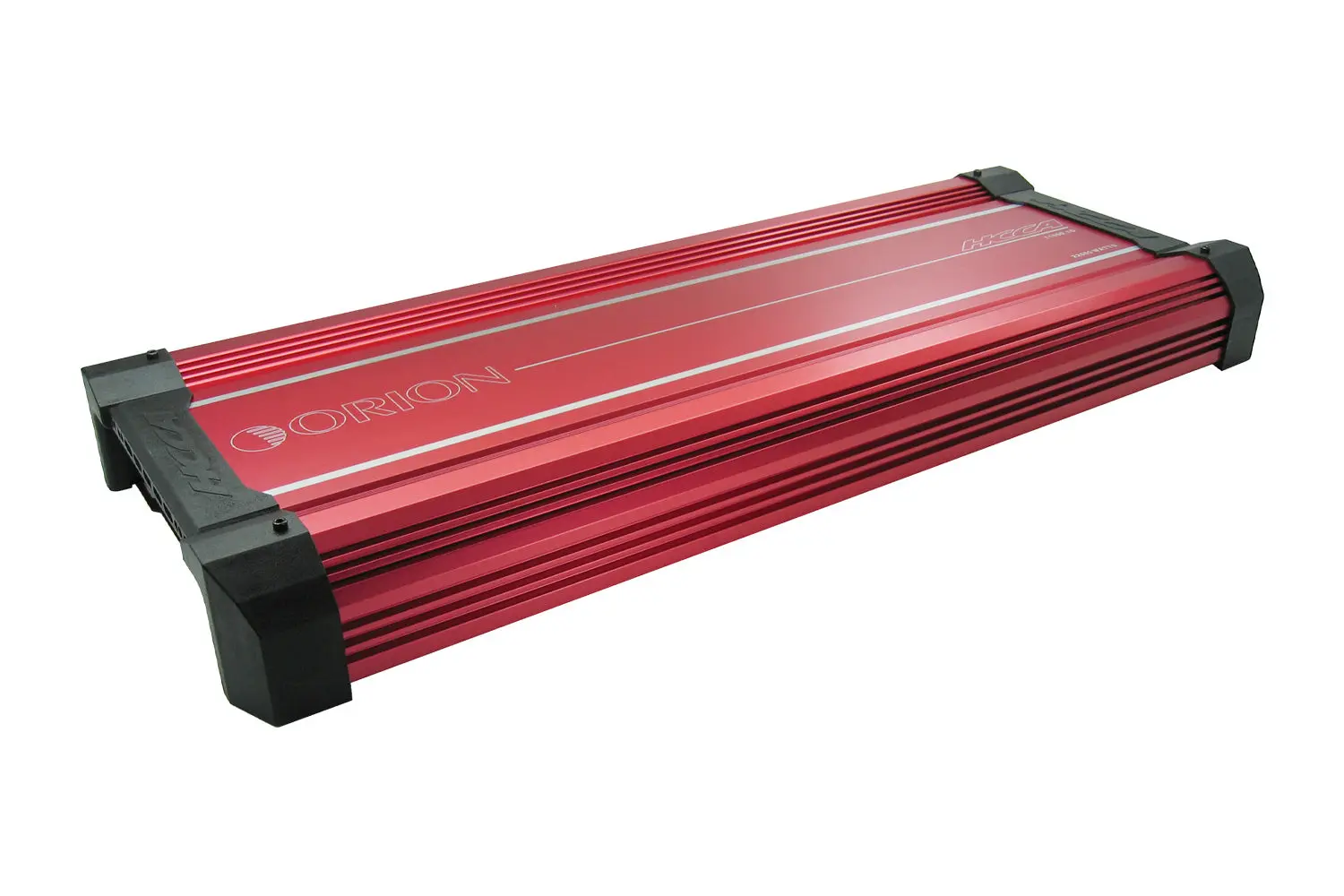

ORION HCCA12500.1DSPLX HCCA Series 12500W RMS 1-Channel Class-D Amplifier

Unleash Monumental Power and Precision: defines the pinnacle of power and precision in car audio. Engineered for audio purists and enthusiasts seeking unparalleled performance, this amplifier redefines your audio experience with unprecedented power and accuracy.

• – RMS Power @ 4 Ohms @ 0.5% THD+N: 4300W
• – RMS Power @ 2 Ohms @ 0.5% THD+N: 7500W
• – RMS Power @ 1 Ohm @ 0.5% THD+N: 12500W
• – Linked with identical Amplifier
•   RMS Power @ 2 Ohms @ 0.5% THD+N: 25400W

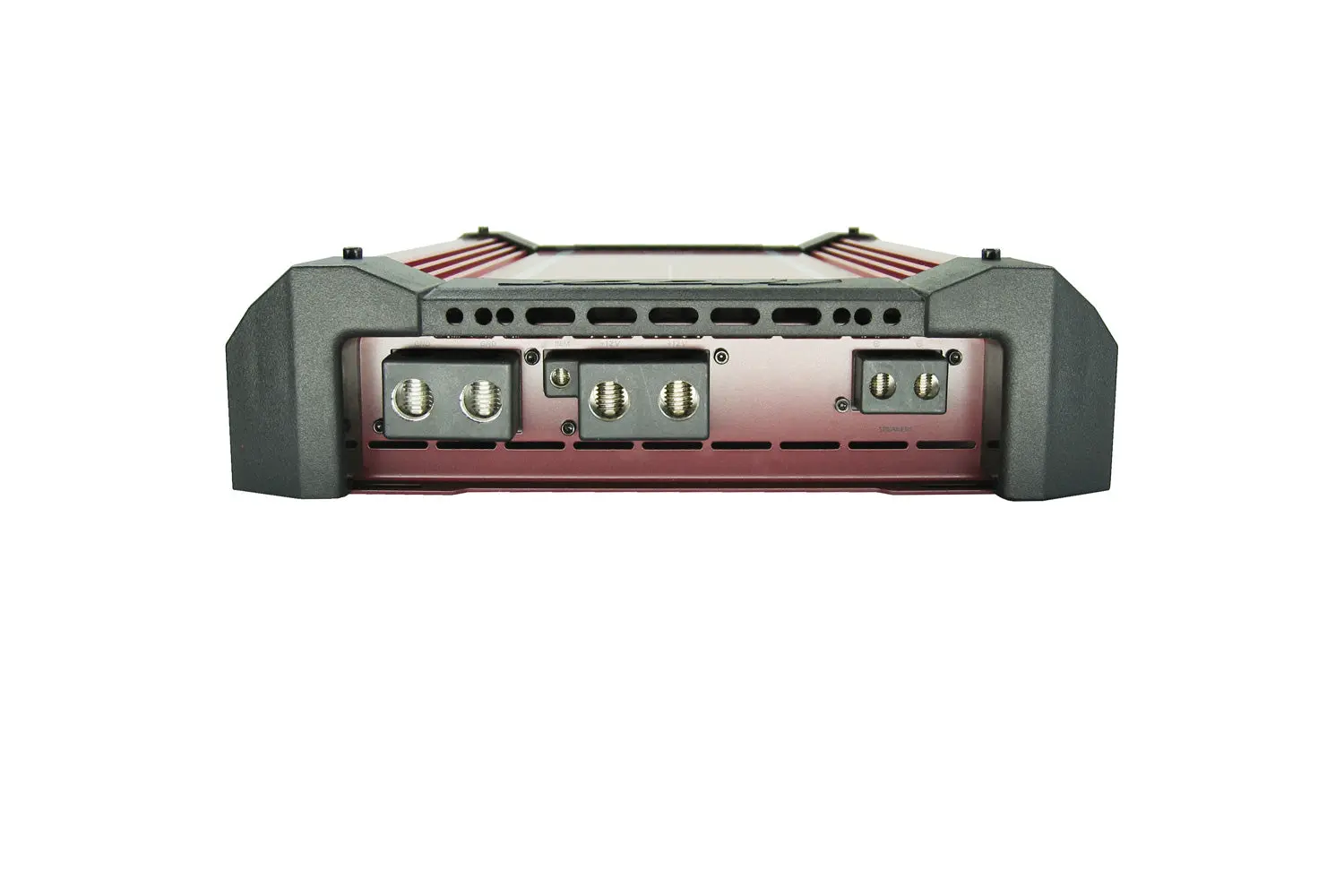

•  POWER TERMINAL MANAGEMENT
•   Positive Terminals: 3 x 0 AWG.
•   Negative Terminals: 3 x 0 AWG.
•   Remote Turn-ON Signal: 10 AWG.
•   Speaker Output Terminals: 4 AWG.

• – Frequency Response: 15Hz – 250Hz
• – Low Pass Crossover: 40Hz – 300Hz
• – Supply Voltage: 9 – 16V
• – Amplifier Efficiency: >88%
• – Damping Factor: 200dB
• – Signal to Noise Ratio: >90dB
• – T.H.D. & Noise: 0.5%
• – Input Impedance: 24K Ohms
• – Phase Shift: 0 – 180
• – Bass Boost: 0-18dB Variable
• – Subsonic Filter: 10 – 40Hz
• – Variable Input Level Control: 0.2V – 6.0V
• – Fuses: 1100A recommended (not included)
• – Dimensions (L x W x H): 33.85″ x 11.89″ x 3.15″ (860x302x80mm)
