Description

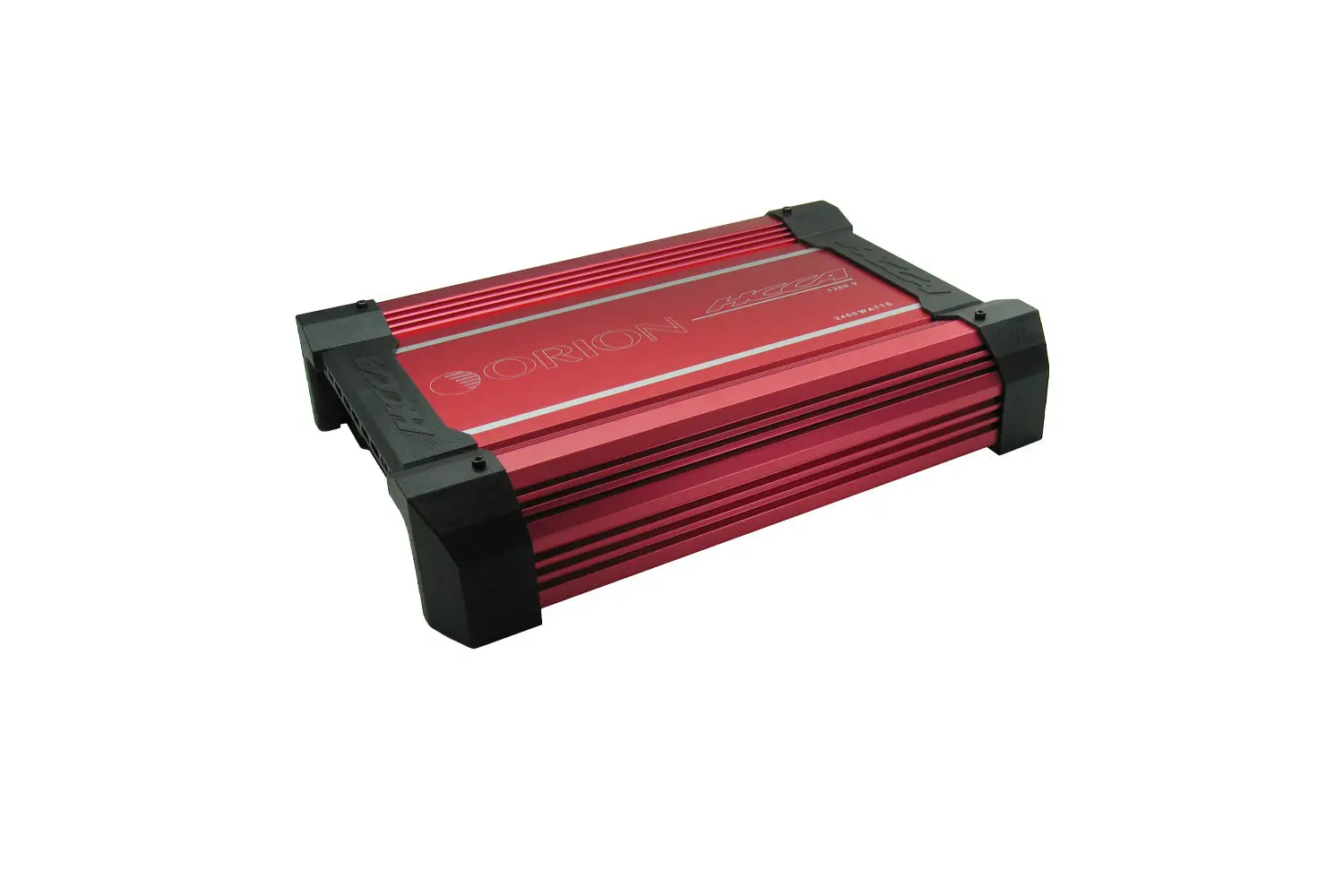

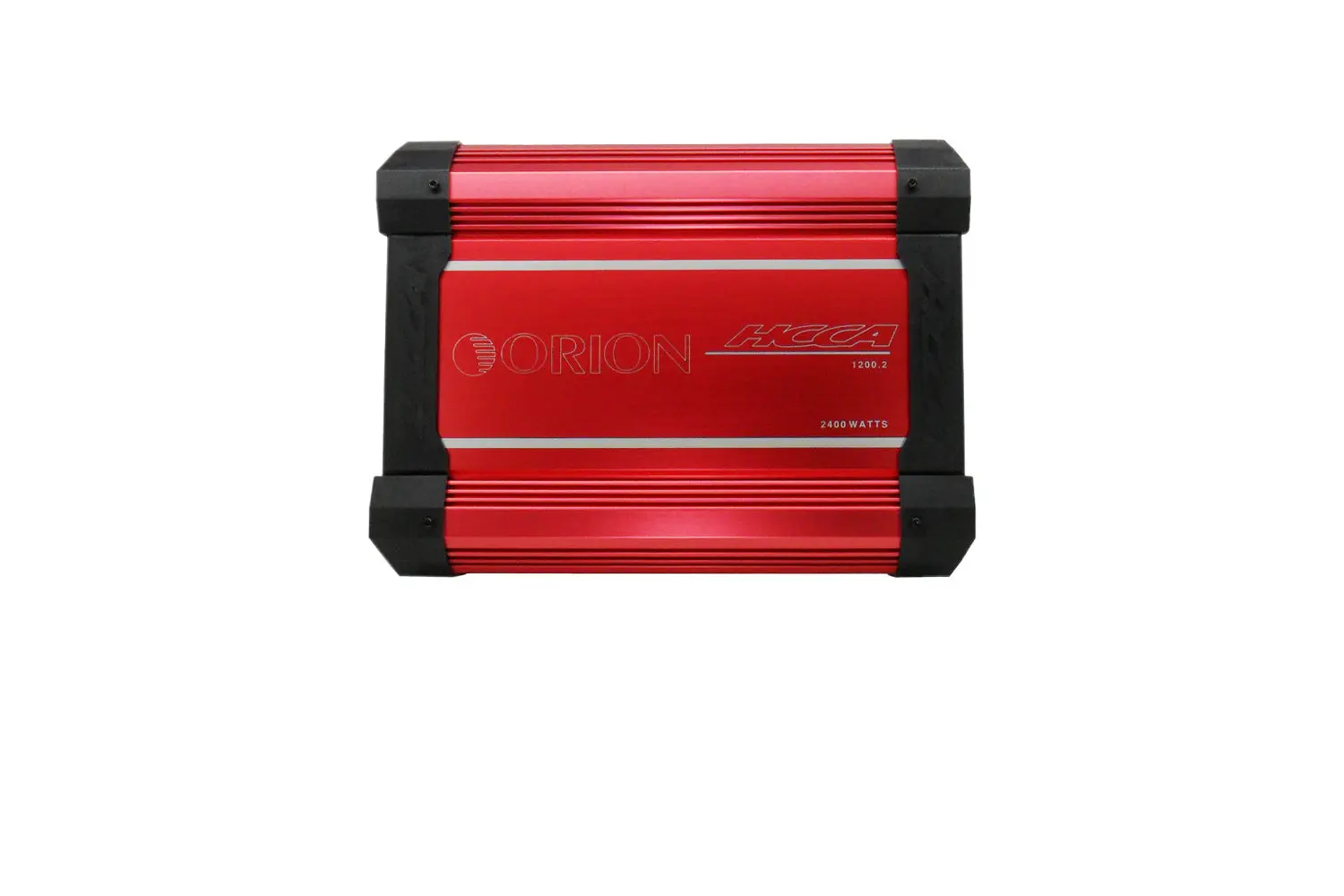

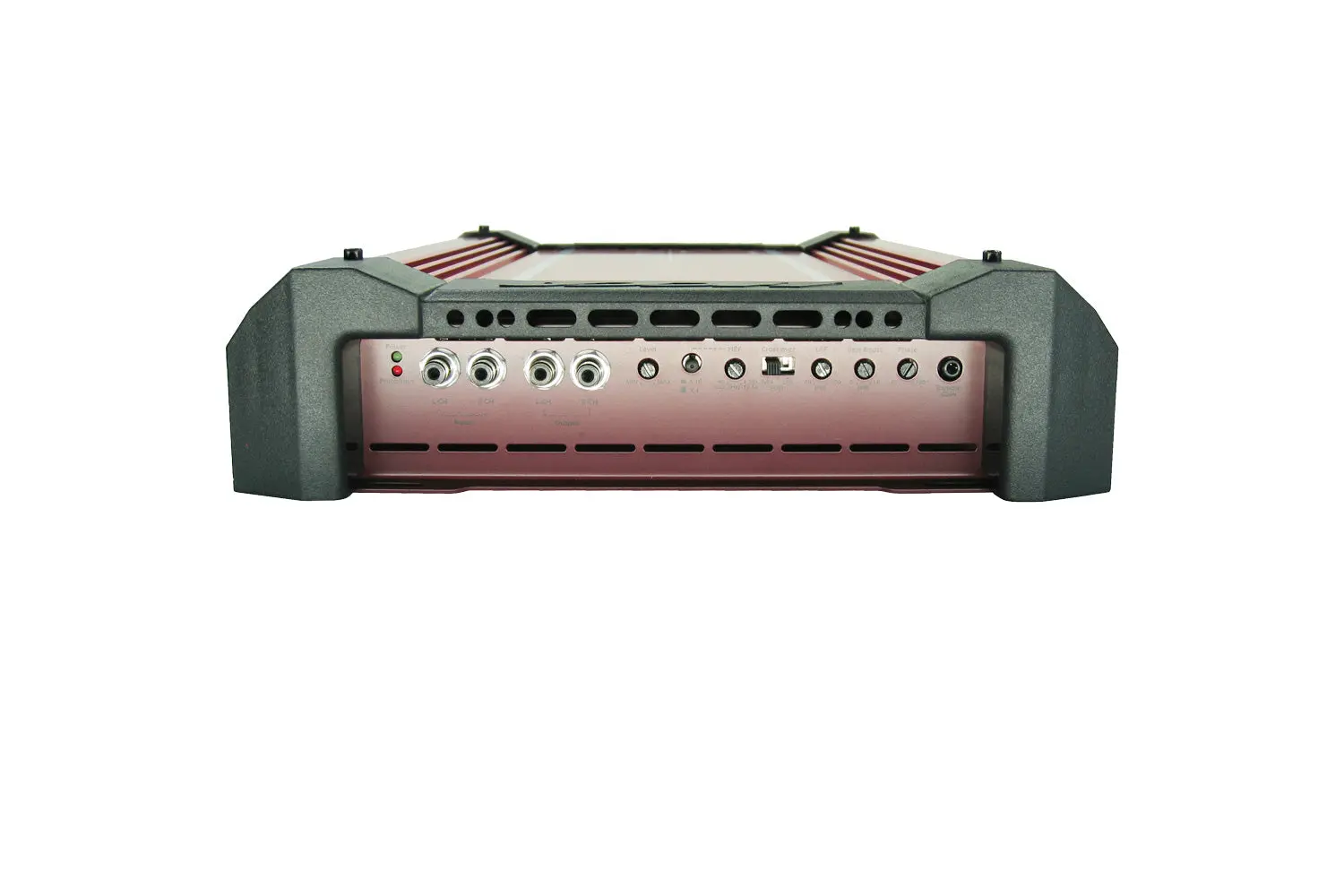

ORION HCCA1200.2 HCCA Series 1200W RMS Class-AB 2 Channel Amplifier
Elevate Your Audio Experience to New Heights:
The ORION HCCA1200.2 HCCA Series 1200W RMS 2-Channel Class-AB Amplifier is a testament to precision engineering and audio excellence. Designed for enthusiasts who demand exceptional performance, this amplifier is a powerful addition to your audio setup, delivering clarity, power, and unrivaled sonic depth
- – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 400W
- – RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 600W
- – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 1200W

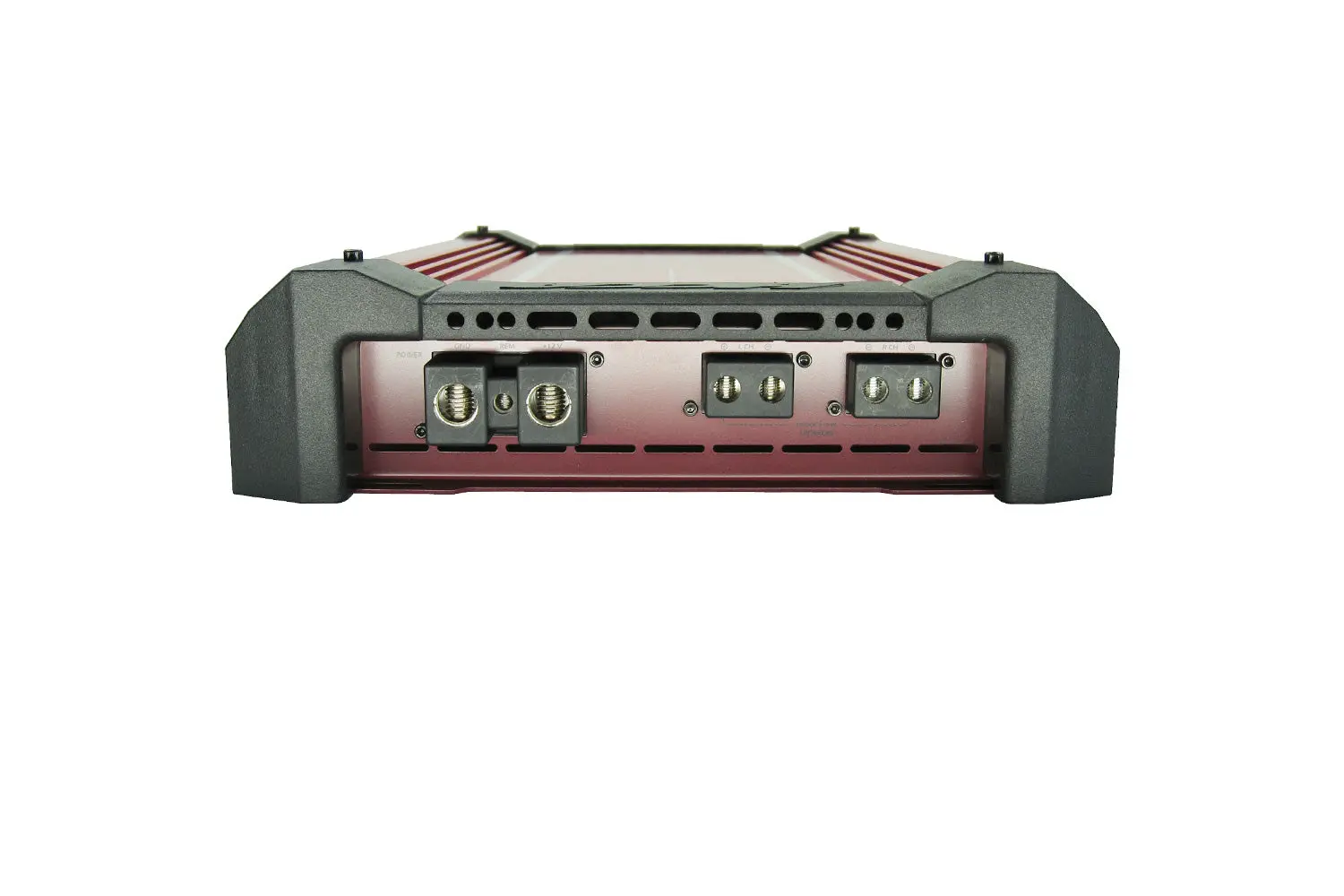

- POWER TERMINAL MANAGEMENT
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
- – Frequency Response: 10Hz to 35kHz +/- 1 dB
- – Linear Bandwidth: 20Hz to 65kHz +/- 3 dB
- – High Pass Crossover Continuously variable: (40-1.25kHz/400-12.5kHz)
- – Low Pass Crossover Continuously variable: (40-300Hz)
- – Phase shift control: 0 to 180
- – Bass Boost: 0-18dB variable
- – Distortion at Rated Power: 0.005% THD+N
- – Damping Factor: > 100
- – Input Sensitivity(RMS): 200mV to 6V
- – Supply Voltage Range: 9 to 16V
- – Input Impedance: 20K Ohms
- – Amplifier Efficiency: > 67% into 2 Ohms load at max. power
- – SNR at rated output power and lowest impedance: > 95dB
- – Fuses: 125A recommended (not included)
- – Dimensions (L x W x H): 15″ x 11.89″ x 3.15″ (381x302x80mm)
