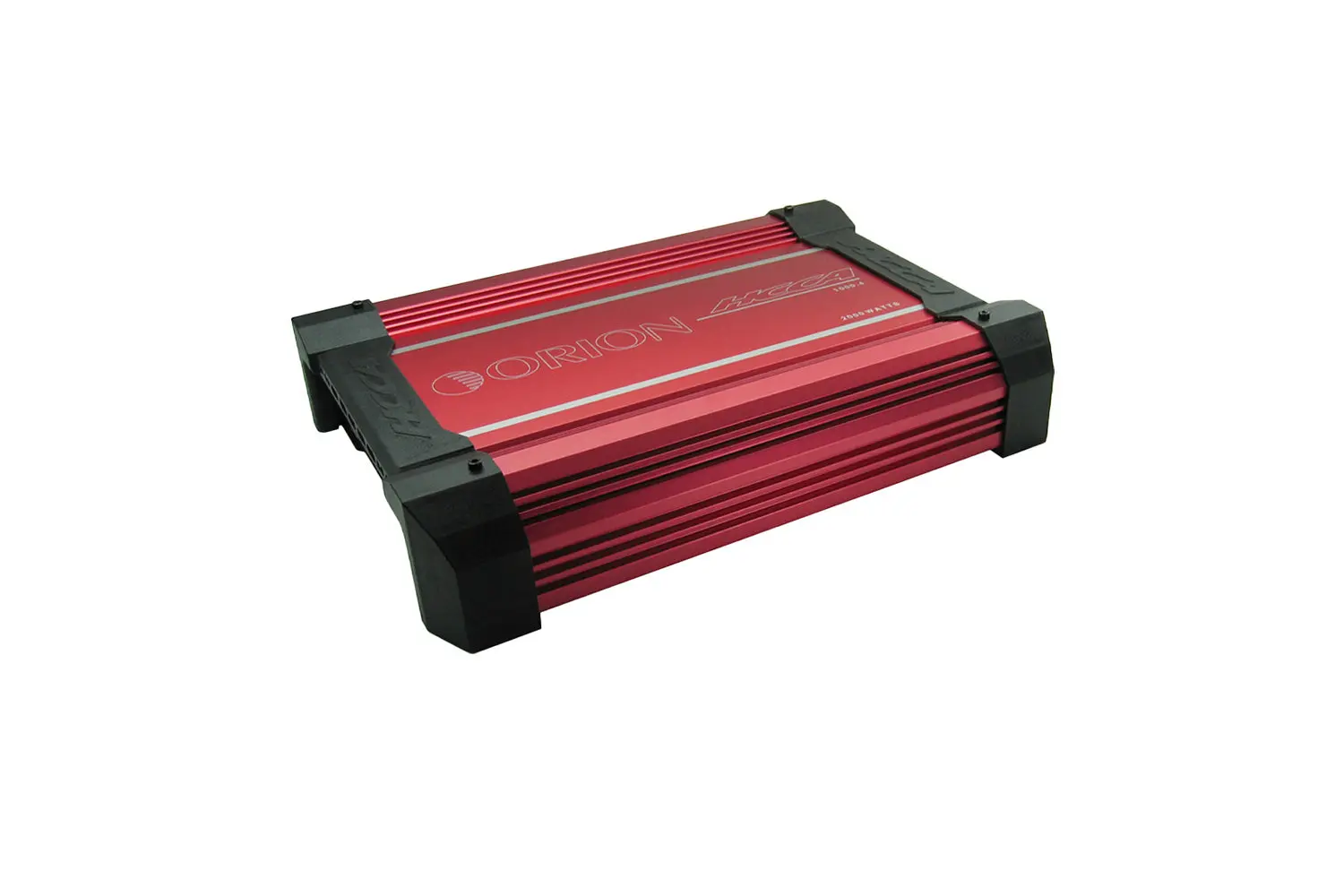

ORION HCCA1000.4 HCCA Series 1000W RMS Class-AB Car Amplifier 4 Channel
Unleash Audio Excellence and Power
The ORION HCCA1000.4 HCCA Series 1000W RMS 4-Channel Class-AB Amplifier encapsulates a perfect fusion of power and precision, designed to elevate your audio experience to extraordinary levels. Crafted for audiophiles who demand nothing short of exceptional performance, this amplifier delivers impeccable sound quality and dynamic range.
- – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 150W
- – RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 250W
- – RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 500W

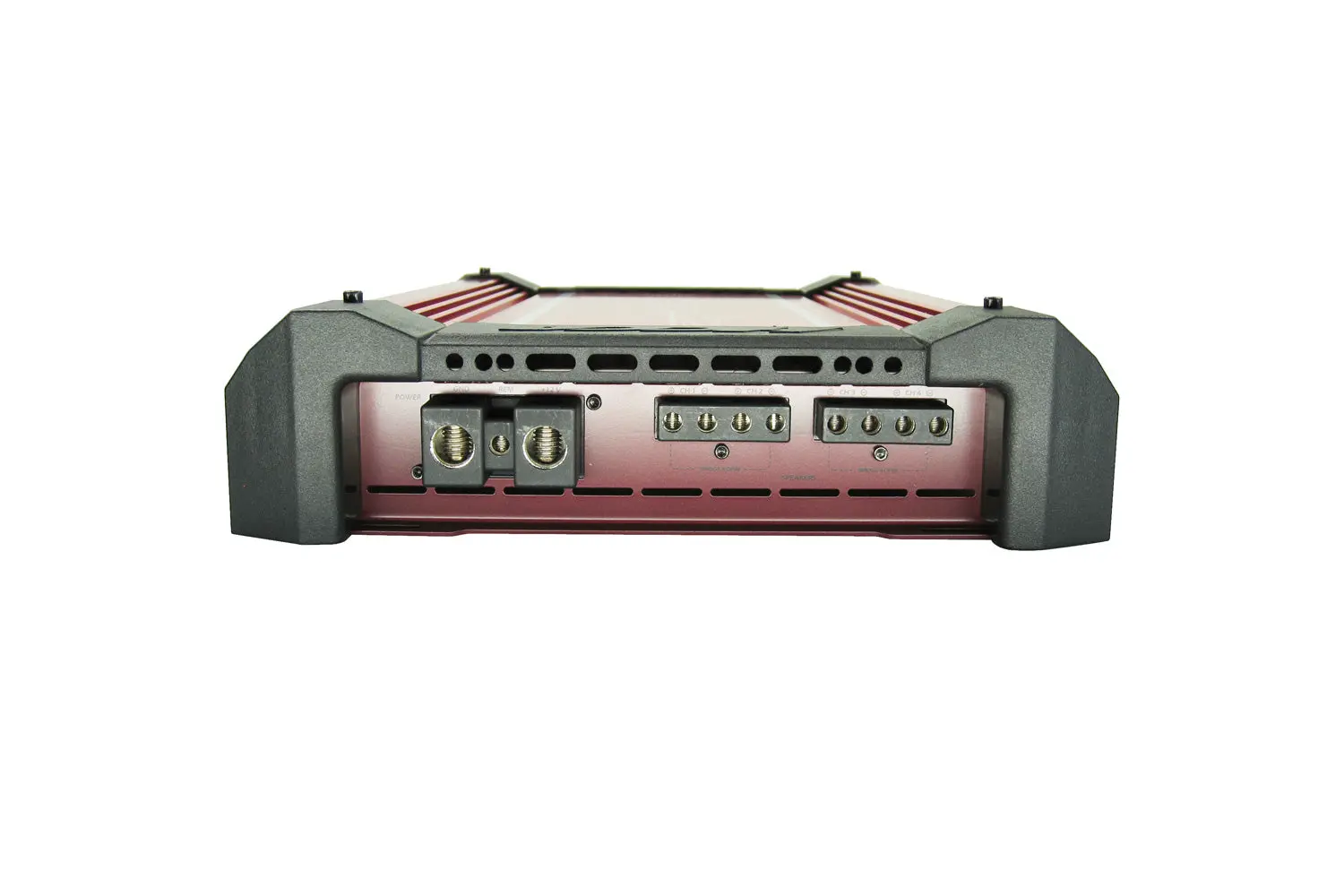

- POWER TERMINAL MANAGEMENT
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
- – Frequency Response: 10Hz to 35kHz +/- 1 dB
- – Linear Bandwidth: 20Hz to 65kHz +/- 3 dB
- – High Pass Crossover Continuously variable: (40-1.25kHz/400-12.5kHz)
- – Low Pass Crossover Continuously variable: (40-300Hz)
- – Phase shift control: 0 to 180
- – Bass Boost: 0-18dB variable
- – Distortion at Rated Power: 0.005% THD+N
- – Damping Factor: > 100
- – Input Sensitivity(RMS): 200mV to 6V
- – Supply Voltage Range: 9 to 16V
- – Input Impedance: 20K Ohms
- – Amplifier Efficiency: > 67% into 2 Ohms load at max. power
- – SNR at rated output power and lowest impedance: > 95dB
- – Fuses: 80A recommended (not included)
- – Dimensions (L x W x H): 15.75″ x 11.89″ x 3.15″ (400x302x80mm)
