Description

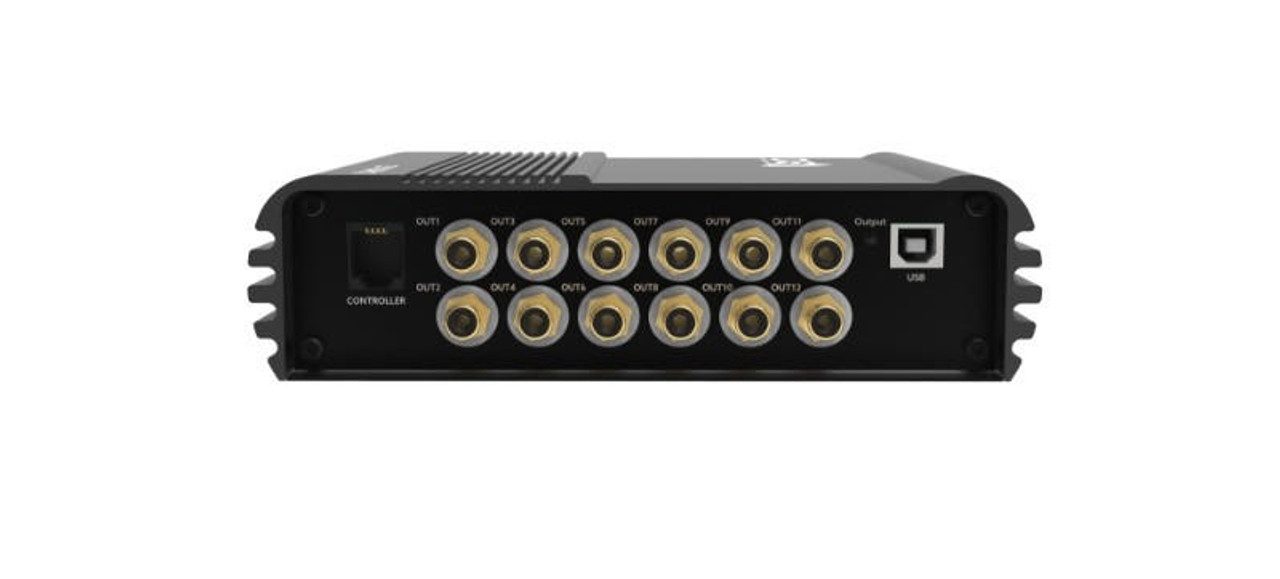

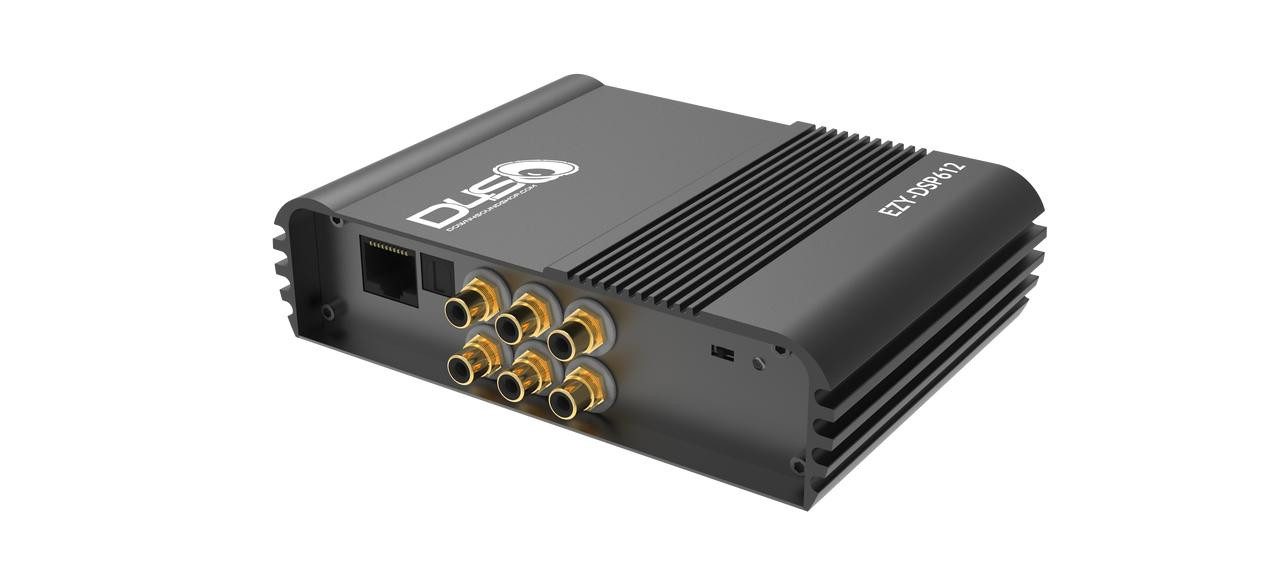

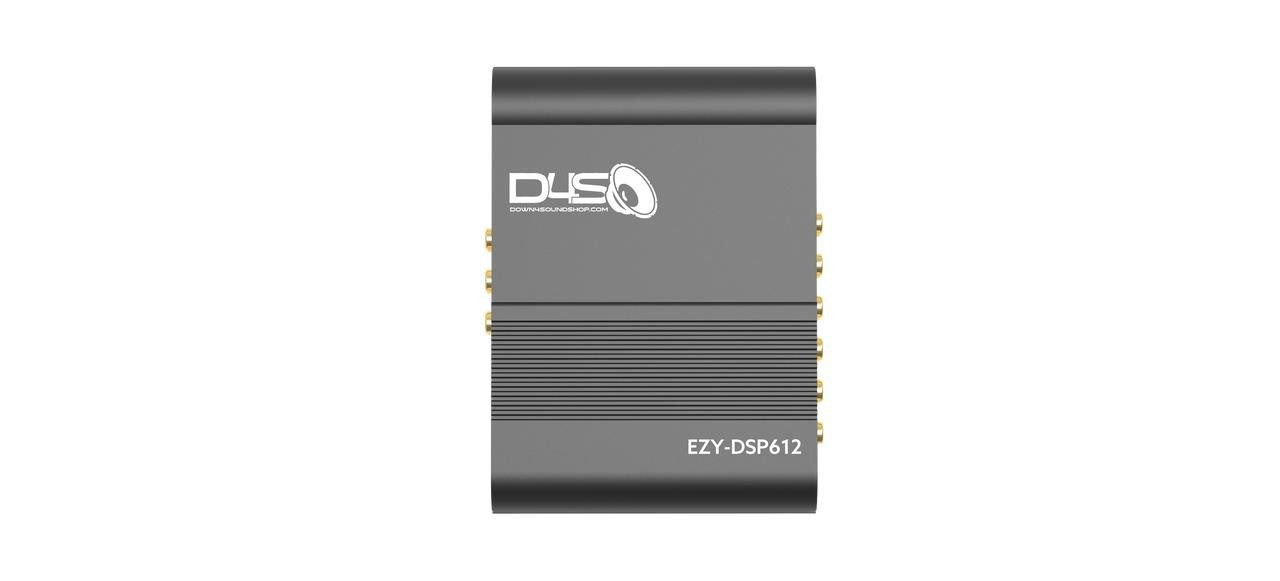

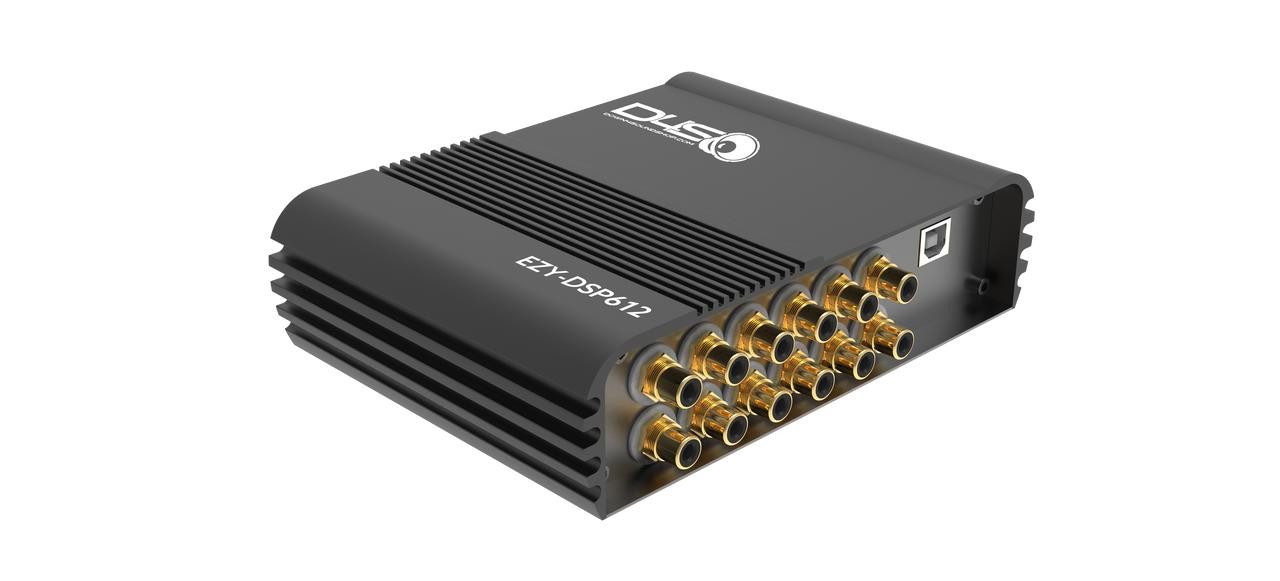

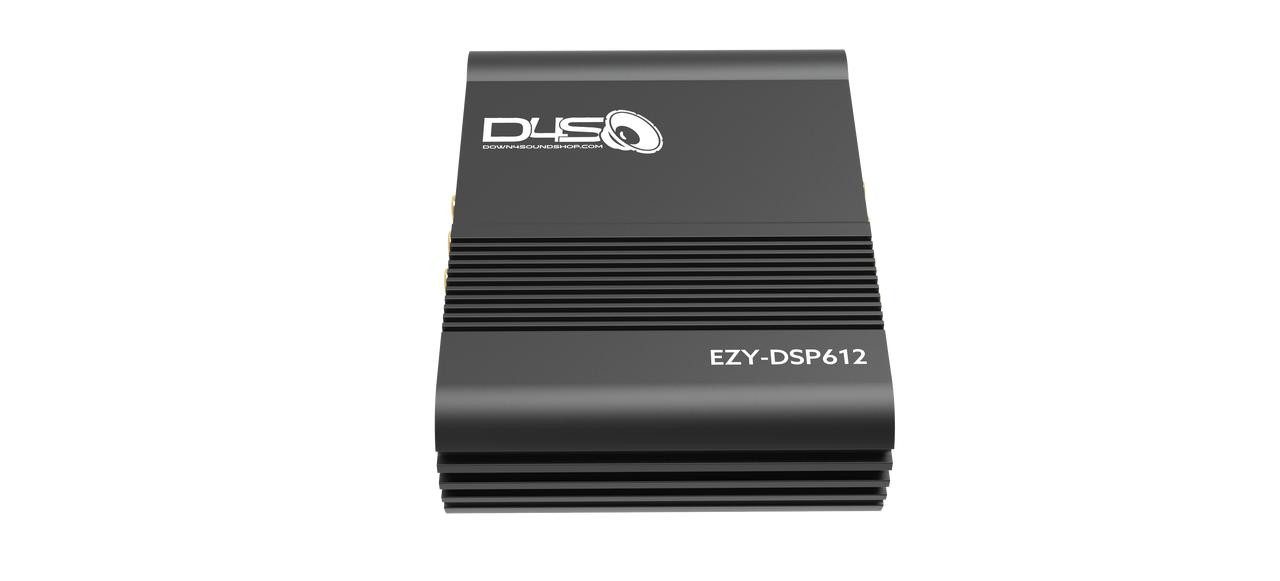

Introducing the EZY-DSP612, the pinnacle of audio tuning technology from the acclaimed EZYDSP series. This Down4sound version is designed for enthusiasts seeking the best low-level DSP on the market. The EZY-DSP612 combines user-friendly operation with advanced features, offering unparalleled control and customization for your audio system.

Features

• APPLE. ANDRIOD AND PC SOFTWARE AVAILABLE.
• Superior Dynamic Range: Enjoy crystal clear sound with a dynamic range of ≥100dB.
• Exceptional Signal-to-Noise Ratio: With an S/N ratio of ≥102dB, your audio remains free from unwanted noise.
• Minimal Distortion: Total Harmonic Distortion (T.H.D.) is kept to an impressive ≤0.05%.
• Wide Frequency Response: Covers the full audio spectrum from 20Hz to 20kHz.
• High-Resolution Sampling: 48kHz/24Bit sampling rate ensures high-fidelity sound reproduction.
• Versatile Inputs and Outputs: 6 channels RCA, built-in TRUE APTX-HD Bluetooth, optical/coaxial inputs, and 12 channels RCA outputs.
• Comprehensive EQ and Filters: 31 band EQ with precise control over frequency, Q value, and gain, plus professional high-low pass filters with multiple slopes and types.
• Phase and Delay Adjustment: Each channel can be finely tuned for phase (0° to 360°) and delay (up to 20ms, 692 cm, 273 inches).
• Secure Tuning: Send, receive, and encrypt tuning files to protect your custom settings.
• Advanced Features: Includes a noise gate switch, limiter, minimum source attenuation, shutdown delay, and 6 presets to ensure your speaker components are perfectly tuned for optimal sound.
• Efficient and Reliable: Operates with a low dark current of <3mA and supports a wide voltage range (DC9V ~ 16V).
• Built to Last: Designed to withstand extreme temperatures, the EZY-DSP612 operates efficiently within a range of -30°C to 70°C (-22 – 158°F).

Streaming Capability

Experience seamless audio streaming with the EZY-DSP612’s built-in TRUE APTX-HD Bluetooth technology. This ensures that your music is streamed in TRUE HI-DEFINITION, providing the fastest speed, sound, and stream rates ever seen in the audio world. Whether you’re using a radio of your choice or streaming directly from your phone to the unit, the EZY-DSP612 guarantees an unparalleled streaming experience with:

• Ultra-fast Connection: Immediate and stable connections for uninterrupted streaming.
• High Definition Audio: Enjoy every detail of your music in high definition, with support for APTX-HD.
• Versatile Connectivity Options: Optical fiber and coaxial inputs provide additional versatility for connecting various devices.
• True-to-Life Sound Quality: Maintain the integrity of your audio signal with high-quality signal conversion chips and minimal distortion.

Technical Specifications

Why Choose the EZY-DSP612?

The EZY-DSP612 is the ultimate solution for high-fidelity car audio, combining advanced features, user-friendly controls, and exceptional build quality. Elevate your car audio experience with this state-of-the-art DSP.

DOWNLOAD EZY DSP612 SOFTWARE
