Description

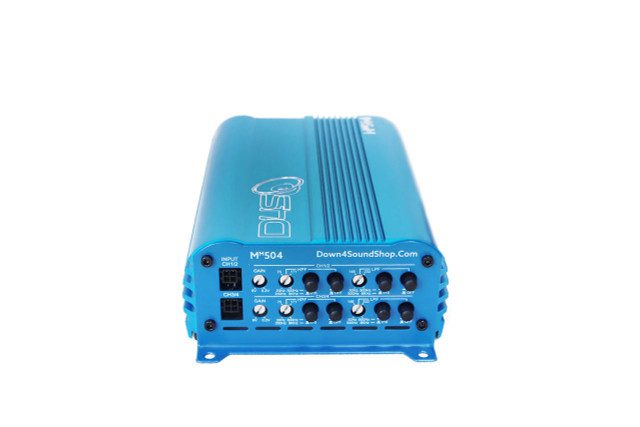

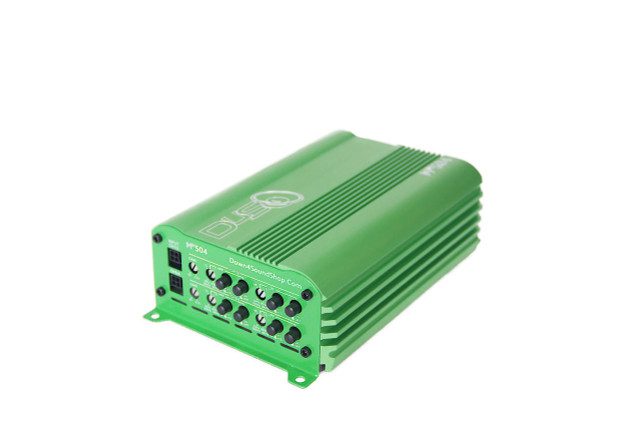

Introducing the DOWN4SOUND MM504 (MINI MAXX) – a sleek and potent 300W RMS 4-Channel Car Audio Amplifier. This elegantly designed compact amplifier is engineered to deliver superior audio performance in a small footprint, making it a perfect choice for car audio enthusiasts who value quality and power in a space-efficient design.

Key Features:

• Full Range Class D 4 Channel Amplifier, delivering high-quality sound in a striking blue design.
• Stable performance in 2ohm stereo or 4ohm bridged configurations, adaptable for diverse audio setups.
• High-speed MOSFET power supply for consistent and reliable power delivery.
• Variable high pass and low pass filters for detailed sound customization.
• Crossover multiply x10 feature, enabling extensive audio tuning possibilities.
• 4 WAY PROTECTION CIRCUITS (Thermal, High & Low Voltage, Speaker Short, and DC) for increased safety and durability.

Technical Specifications:

• Rated Power Output:
  • RMS power, 4ohms: 50W x 4
  • RMS power, 2ohms: 80W x 4
  • RMS power, 4ohms Bridged: 160W x 2
• Frequency Response: 10Hz – 23.7KHz
• High Pass Filter: 20Hz – 800Hz
• High Pass Filter Multiply: x1, x10 (200Hz – 8KHz)
• Low Pass Filter: 50Hz – 800Hz
• Low Pass Filter Multiply: x1, x10 (500Hz – 8KHz)
• Input sensitivity: 6V – 0.2V
• Signal to Noise Ratio: >88dB
• T.H.D @ 4ohm: less than 0.1%
• Working voltage: 9V – 15.5V
• Fuse rating: 25A
• Dimensions:
  • Length: 6.69 inches
  • Width x Height: 4.87 x 2.13 inches
