JP 23 AMP: 2300W RMS MONOBLOCK Amplifier V1.5

VERSION: 1.5 features a thick PLEXI BackPlate; we also UPGRADED a resistor to make the amplifiers even more unbeatable. ⚡⚡

The JP23 might be the most overdone, 2300 watt amplifier ever to hit the market. R&D in Las Vegas, NV & Dunnellon FL with the brightest minds historically in-car audio dating back to the late ’90s thru the 2000s AND TODAY. We took the old school approach of building a quality amplifier, heavy heatsink, and quality hardware. Then we applied what our basshead clientele wants with technology, durability, and features for both competition and daily use.

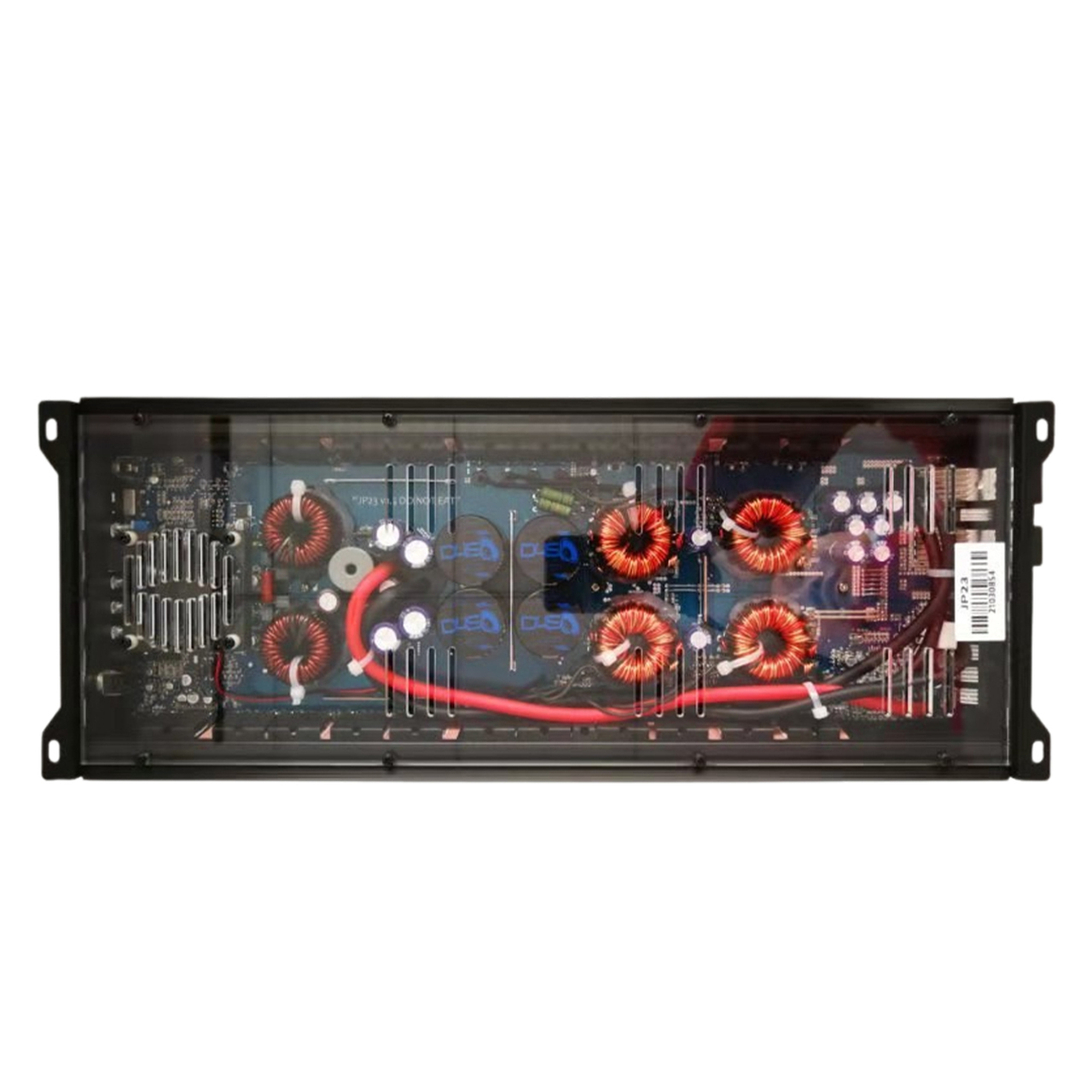

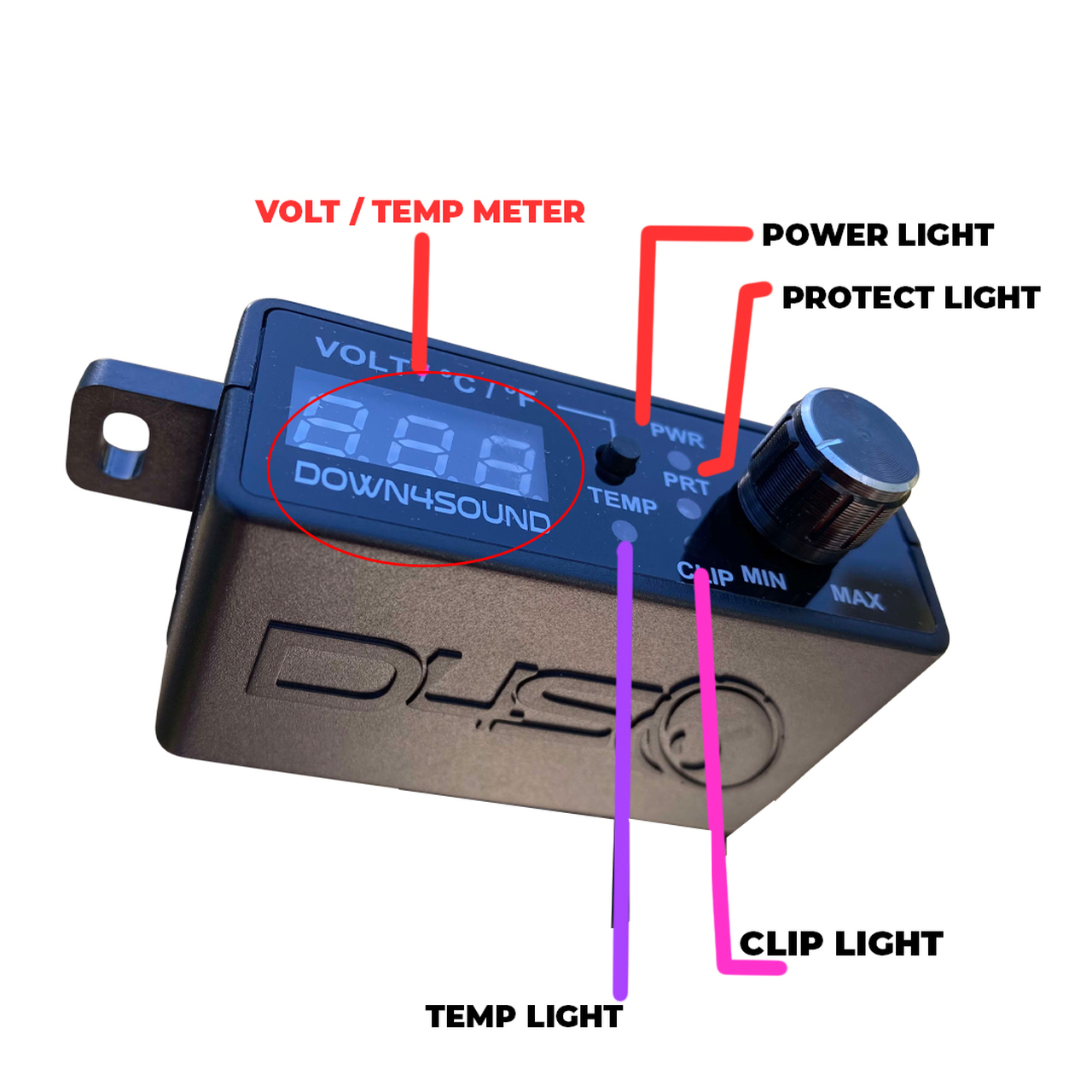

Inside the JP23 is a fan cooling the output side; and Bass Knob with voltage and temperature meter. The JP23 fans turn on at 120 degrees or when the amplifier detects electrical stress and excessive heat during playtime.

OUR STANDARD 1 YEAR MANUFACTURE DEFECTS ONLY | JUST LIKE ANY MANUFACTURE.

The warranty doesn’t mean we cover it if you hook it up wrong or launch it out a potato launcher or someone dropped it or if your ex comes by and steals it. It also doesn’t cover you feeding it the wrong voltage distorting it malfunction, or you submarining it in your vehicle. This Version IS NOT Marine Grade.

( JP23 v1.5 Manual )| EVERYTHING you need know about the JP23 V1.5. Including Strapping, Hook UP & trouble shooting.

Rated Power Output 2300

RMS power, 1ohm : 2000w @ 12v | 2300 @ 14.4v

RMS power, 2ohms: 1000w @ 12v | 1300 @ 14.4v

RMS power, 4ohms :700w @ 12v

RMS power, 2ohm Linked: 4900W x 1 14.4v

Frequency Response: 10 Hz – 250 Hz

Low Pass Filter: 35 Hz – 250 Hz

Subsonic Filter: 10 Hz – 50 Hz

Bass Boost: 0 – 9 Db

Input sensitivity: 6V – 0.2V

signal to Noise Ratio: 88dB <

T.H.D @ 4ohm: less than 0.1%

Single unit fuse rating: 200A

Strapped fuse rating 400A

Length (inches) Width x height (inches): 17.71x 7.32 x 2.19

Damping Factor: 100
