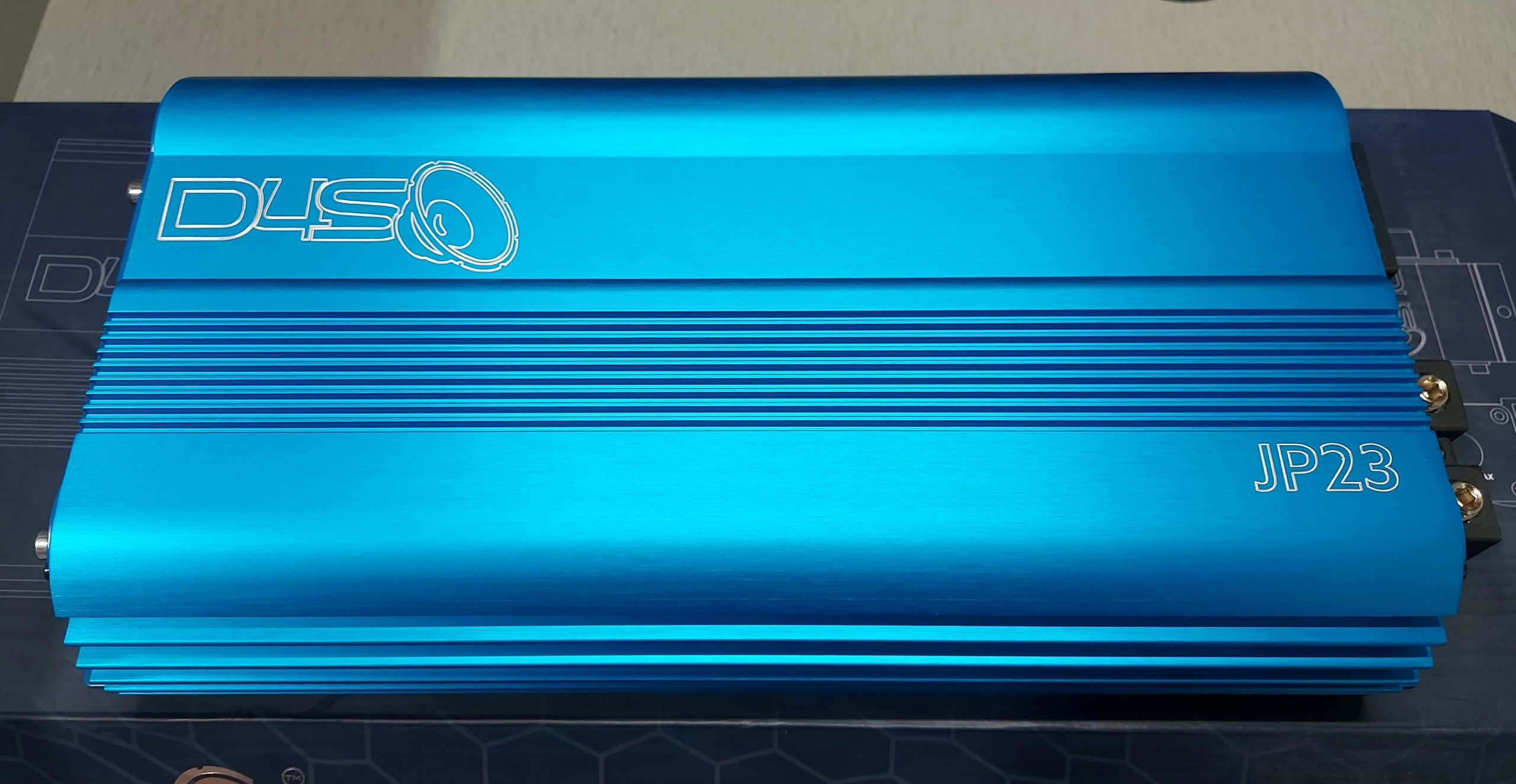

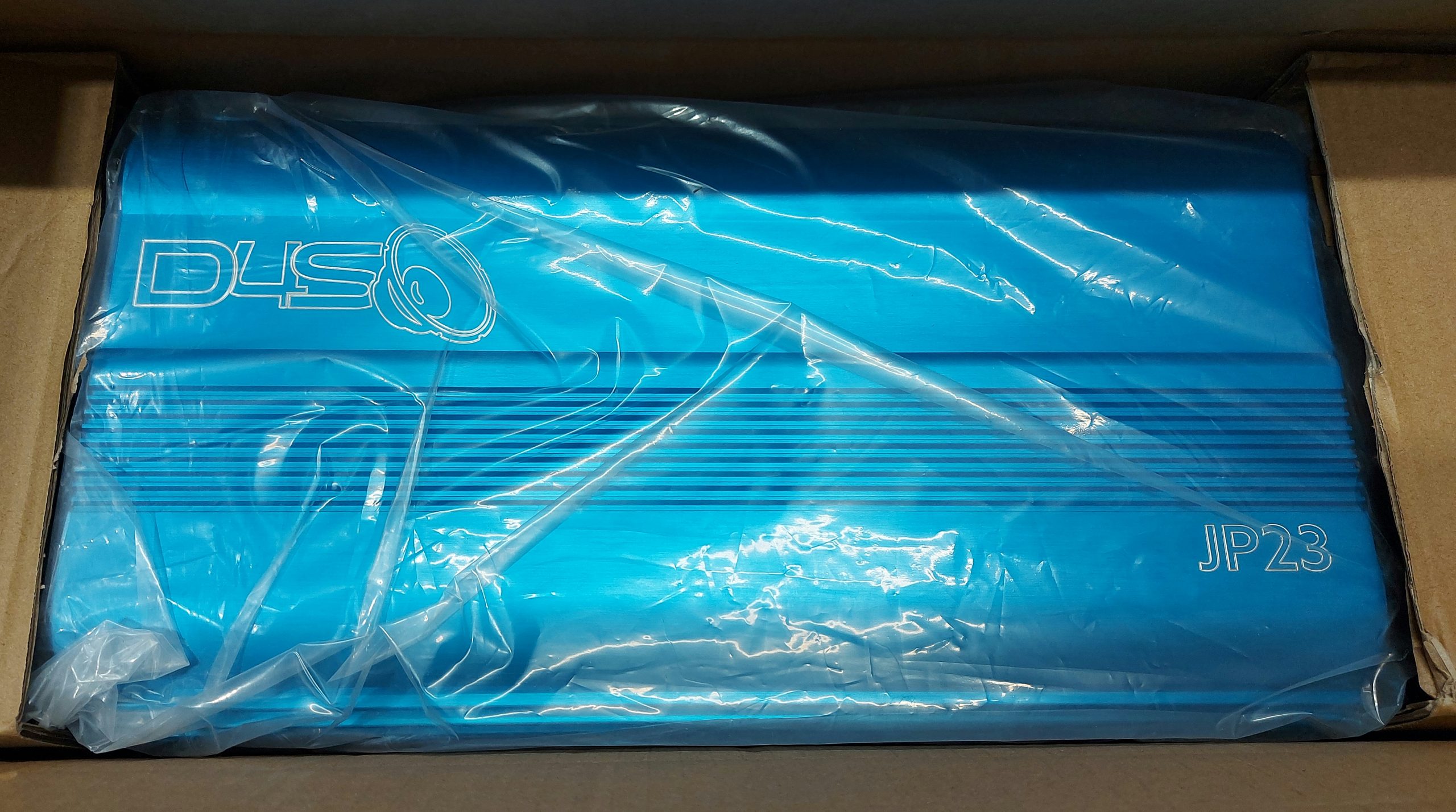

JP23 V2 BLUE | 2800W RMS MONOBLOCK AMPLIFIER

The all-new JP23 V2 BLUE is finally here, and it’s better than ever! Version 2 of this amplifier is smaller but packs even more power, making it even more valuable. With 2800W of power at 1-OHM, this amp will surely give you the quality sound you crave. And with its superior quality construction, you can be sure that this amp will withstand the test of time. Designed in Dunnellon, FL, and Las Vegas, Nevada, and assembled by people that love car audio. The beautiful blue color makes this amp stand out from the rest, and the aluminum bass knob adds style while retaining all the valuable features of power clip, protect, and voltage. But that’s not all – we’ve also upgraded the thermal management with new and improved quiet high-speed cooling fans staying cooler longer. So if you’re looking for an amp that delivers power and style, look no further than the JP23 V2 BLUE!

JP23v2 BLUE Amplifier Specs:

• RMS power, 1ohm :  2800W x 1 @ 14.4V
• RMS power, 2ohms: 1800W x 1 @ 14.4V
• RMS power, 4ohms: 800W x 1
• 23% smaller than the JP23 v1-1.5
• RMS power, 2ohm Linked: 5600W x 1
• Frequency Response: 10Hz – 270Hz
• Low Pass Filter: 35Hz – 250 Hz
• Subsonic Filter: 10 Hz – 50Hz
• Bass Boost: 0-9 dB
• Input sensitivity: 6V – 0.2V
• signal to Noise Ratio: 97dB
• T.H.D @ 4ohm: less than 0.1%
• Single unit fuse rating: 300A
• Strapped fuse rating: 600A
• Length (inches) Width x height (inches):  13.38 x 7.40 x 2.24

• STRAPPABLE DIGITAL MONOBLOCK AMPLIFIER

• STABLE INTO 1OHM MONO LOAD
• HIGH SPEED MOSFET POWER SUPPLY
• VARIABLE LOW PASS FILTER
• VARIABLE SUBSONIC FILTER
• 4 WAY PROTECTION CIRCUITS : THERMAL, HIGH & LOW VOLTAGE, SPEAKER SHORT AND DC
