Description

2 channel line out converter with accubass® and subwoofer control

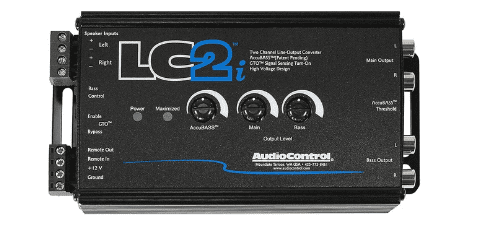

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers.  It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

features

• Two channels of Active speaker level inputs – Accept 400 watt signals per channel
• Fixed and variable outputs with discrete level controls
• AccuBASS® processing for correction of bass roll-off
• GTOTM Signal Sensing
• Input For Optional Remote Level Control
• Compact design

specifications

inputs

• Speaker Level Input: 1 (2 channels)
• Maximum Speaker Level Input: 400W per channel at 4Ω
• Input Impedance: 20kΩ

outputs

• Preamp Outputs: 2 (2 channels main, 2 channels bass)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Impedance: 150Ω

performance

• Total Harmonic Distortion: 0.01%
• Signal to Noise: >110 dB
• Frequency Response: 33 Hz – 100 kHz ±1 dB

control

• Remote In
• 12VDC Remote Out (always active when unit is on)

general

• Current Draw: 150mA
• Recommended Fuse Rating: 1A

weights & dimensions

• Dimensions: 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
• Weight: 1.0lbs (0.5kg)

in the box: LC2i, Speaker and Power connectors, Manual, Warranty
