Description

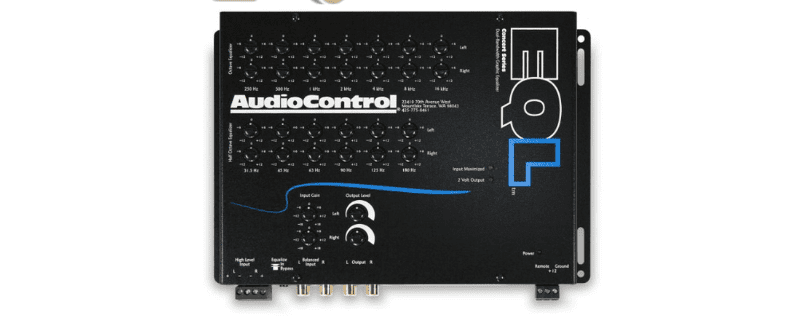

The EQL works wonders with any 2 channel audio system: From existing factory installed setups to custom audiophile-grade systems. Level-matching circuitry allows connection to either preamp-level or speaker-level inputs. The EQL also features thirteen-band, dual-bandwidth equalization and a Programmable Frequency Match (PFM) filter for precise bass control.

features

• Stereo Equalization
• 6 Band 1/2 Octave Bass EQ
• 7 Band 1 Octave Equalizer
• Input and Output Level Matching Controls
• Programmable Frequency Match (PFM) Subsonic Filter
• Preamp and Speaker Level Inputs
• Balanced Inputs

specifications

inputs

• Preamp Inputs: 1 (2 channels)
• Input Gain: ±18dB
• Speaker Level Inputs: 1 (2 channels)

outputs

• Preamp Outputs: 1 (2 channels)
• Maximum Output Level: 7.5Vrms

performance

• Total Harmonic Distortion: 0.003%
• Frequency Response: 10Hz-100kHz
• Signal to Noise: 110dB

control

• Remote In

general

• Power Supply: Variable isolation transformer switching supply
• Recommended Fuse Rating: 2A

weights & dimensions

• Dimensions: 8.9″W x 6.9″D x 1.25″H
• Weight: 2.7lbs (1.2kg)

in the box: EQL, Power and Speaker Connector, Manual, Warranty
