Description

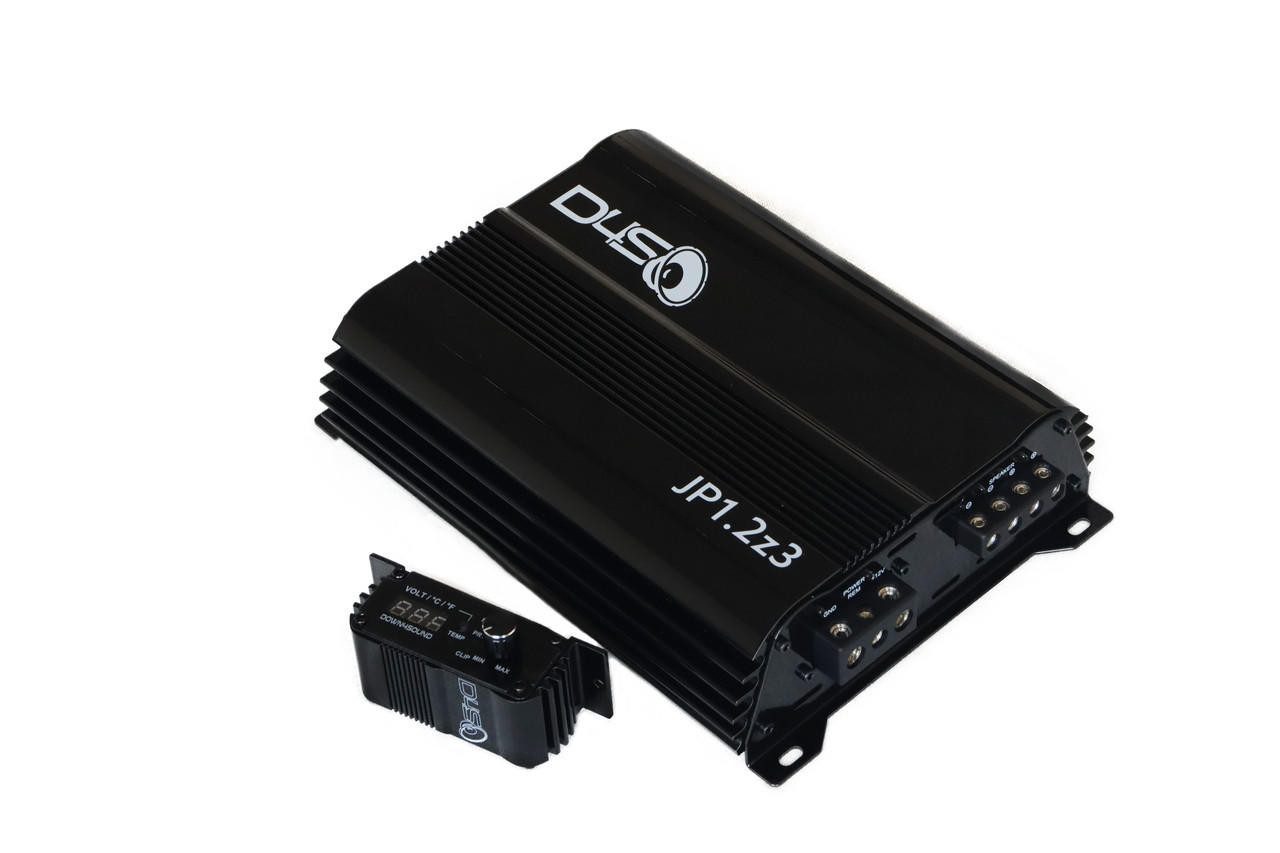

Prepare to elevate your audio experience with the sleek and powerful DOWN4SOUND JP1.2z3 amplifier in glossy black. Designed for versatility and performance, this amplifier offers exceptional power and efficiency across a wide range of impedance configurations, from 4 ohms to 1 ohm.

Product Features:

• Strappable Digital Monoblock Amplifier
• Stable into 1 Ohm Mono Load
• High-Speed MOSFET Power Supply
• Variable Low Pass Filter
• Variable Subsonic Filter
• Variable Bass Boost
• 4-Way Protection Circuits (Thermal, High & Low Voltage, Speaker Short, and DC)
• Bass Remote with Voltmeter and Temperature Display
• High Purity Copper Printed Circuit Board
• 4 Gauge Power/Ground Terminals

Specifications:

• Output Power:
  • 1200W x 1 @ 14.4V (1 Ohm)
  • 1200W x 1 @ 14.4V (2 Ohm)
  • 1200W x 1 @ 14.4V (4 Ohm)
  • 2400W x 1 Strapped
• Frequency Response: 11Hz – 239Hz
• Variable Filters:
  • Low Pass Filter: 35Hz – 250Hz
  • Subsonic Filter: 10Hz – 50Hz
  • Bass Boost: 0 – 9 dB
• Input Sensitivity: 6V – 0.2V
• Signal to Noise Ratio: 92dB
• Total Harmonic Distortion (THD): Less than 0.1% @ 4 Ohms
• Voltage Range: 9V – 15.5V
• Fuse Ratings:
  • 190A (single)
  • 380A (strapped)
• Dimensions: 9.05”L x 7.48”W x 2.24”H
