Description

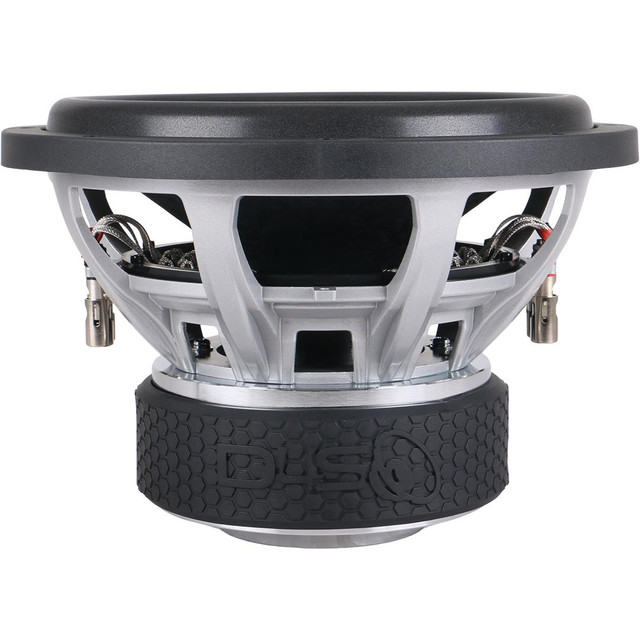

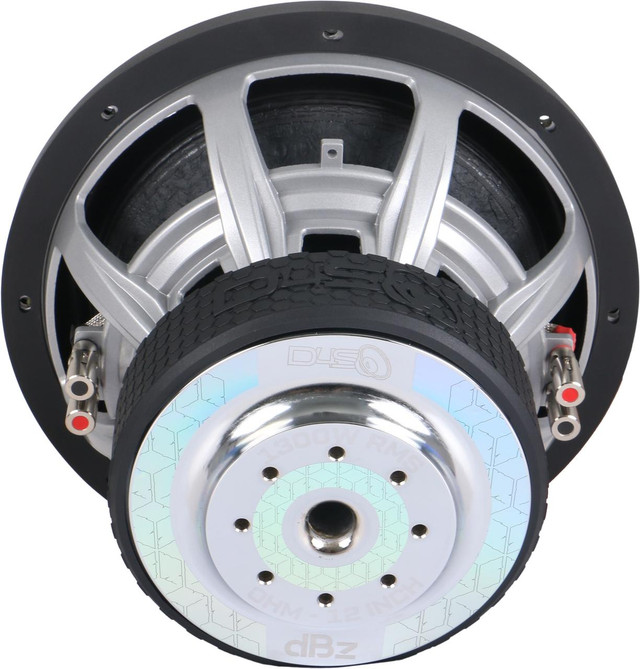

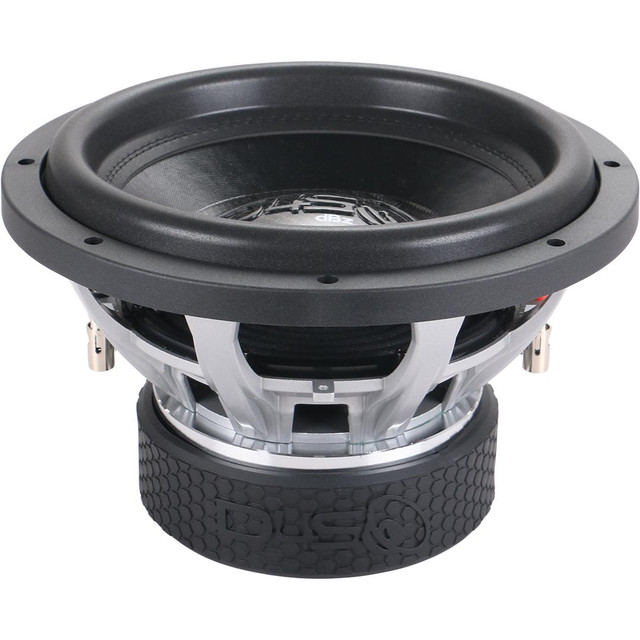

Meet the DOWN4SOUND DBz 12″ Subwoofer – the ultimate budget banger delivering exceptional performance and value. With a massive 1300W RMS power, this subwoofer is perfect for car audio enthusiasts looking for big sound without the big price tag. Featuring a dual voice coil configuration, the DBz 12″ provides versatile wiring options and powerful bass. The real premium carbon fiber dustcap adds a sleek, stylish touch while ensuring maximum durability and performance.

QUICK NOTES:

• RMS OUTPUT: 1300W RMS
• COIL SIZE: 2.75 INCH
• CUTOUT: 11.26 inches (286 mm)
• MOUNTING DEPTH: 7.68 inches (195 mm)
• NET WEIGHT: 32.8 lbs (14.9 kg)
• GROSS WEIGHT: 36.4 lbs (16.5 kg)
• XMAX : 28 mm (one-way)

Precision Engineering: Engineered with an optimized motor strength (BL Product: 26.133 T·m) and an effective piston area (Sd) of 59.093 cm² for powerful sound output at an affordable price.

Technical Specifications:

• Revc (DC Resistance): 2.960 Ohm
• Resonance Frequency (Fo): 36.949 Hz
• Total Moving Mass (Mms): 352.866 g
• Suspension Compliance (Cms): 52.580 μm/N
• Equivalent Volume (Vas): 21.047 L
• Sensitivity (SPL): 85.4 dB
• Qms (Mechanical Q): 2.166
• Qes (Electrical Q): 0.475
• Qts (Total Q): 0.390
• Voice Coil Inductance (Le): Not specified
• Mechanical Resistance (Rms): 0.776
• Sealed Enclosure: 1.0 cubic foot
• Ported Enclosure: 1.75 cubic feet
